• Model NO.：FG25
• Load center：500mm
• Lift height：3000mm
• Condition：New
• Turning Radius(Outside)：2240mm
• Weight：3580kg
• Engine Model：Nissan K21
• Number of Cylinders：4
• Color：Customize
• Fuel Tank：70L
• Operator Type：Driver,Seat
• Tire Type：Pneumatic
• Fork Size：1070mm*122mm*40mm
• Transport Package：Container
• Specification：2530mm*1150mm*2120mm
• Trademark：LTMG
• Origin：China
• HS Code：8427209000
• Production Capacity：1000sets,Month

Features   Manufacturer     LTMGModel   Power shift T/M        FG25Load capacity kg2500Load center mm500Power unit   Gasoline/LPGOperator type  Driver/seat Tire type Front/rear PnenumaticWheel Front/rear 2/2Dimension Max. lifting height mm3000Free lift  mm160Fork size L*W*Tmm1070*122*40Tilt rangeMast forward/backwarddeg6/12Overall length(without fork)  mm2530Total width mm1150Mast height (fork lowering) mm1995Overall height fork raisedWith backrest mm4030Height to head guard mm2120Turning raduis(outside)  mm2240Front face of fork to front axle mm450Min. right angle stacking aislewithout load length&clearence                    mm2690PerformanceSpeedMax Travelling                 full/no loadkm/h17/19Lifting full/no load mm/s550/580Lowering full/no load mm/s450/550Max.drawbar pullPower shift T/M full/no load    kg1650/830Gradeability at 1.6km/hPower shift T/M  full/no load   %22/18Weight           Truck weight  kg3580Weight   distributionFull load  front/rearkg5370/710No   load  front/rear kg1390/2190Frame          Tires                                       Numberfront/rear2/2Modelfront axle 7.00-12-12PRrear axle6.00-9-10PRWheelbase                              mm1600Tread                                                Front/rearmm970/970Ground clearence                 At lowest point(mast)       mm110Framemm115Brake                                           Service brake Hydraulic-foot pedal  Parking brake Mechanical-hand lever   Engine       Battery                                         Voltage/capacityV/AH12/60Engine    Model Nissan K21Rated powerPS(kw/rpm)47/2250(34.6/2250)Rated torquekg-m   max.(N.m)15.7/1600(153/1600)Number of cylinders 4PlacementL2.065Fuel tank capacityL70TransmissionSpeed forward/backward Power shift T/M                        1-1 power shift T/MOperating pressureHydraulic system pressure kg/cm²180
Product Features



1.Safe :
LED work lights and warning lights make it safer and more efficient evenin poor lighting conditions.
New designed overhead guard protective device prevent the sudden accidents.
Thicker reinforcing plate ensure the safety and efficiency.

2.Easy to operate:
Linde-Technology single chain with reinforced load backrest--makes an excellent and wider field of visionfor operator.

3.Beautiful and comfortable:
New suspension adjustable seat makes the long time operating more comfortable.
Step area is 1.5 times larger with lower step height than fellow forklifts.

4.Durable :
Sunken tilt cylinder under the floor build broader flat floor and less abrasion.
Change plastic slider to alloy copper slider, reduce the abrasion and narrow the gap between masts.
Thicker steering axle bridge deck.

5.Environmental:
Middle muffler, more environmental.

6.High technology:
Maintenance free radiators adopt Germany technology.

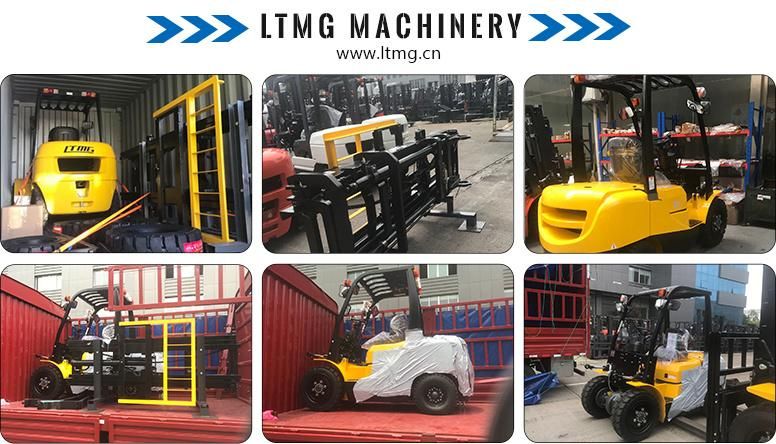

Packing & Delivery

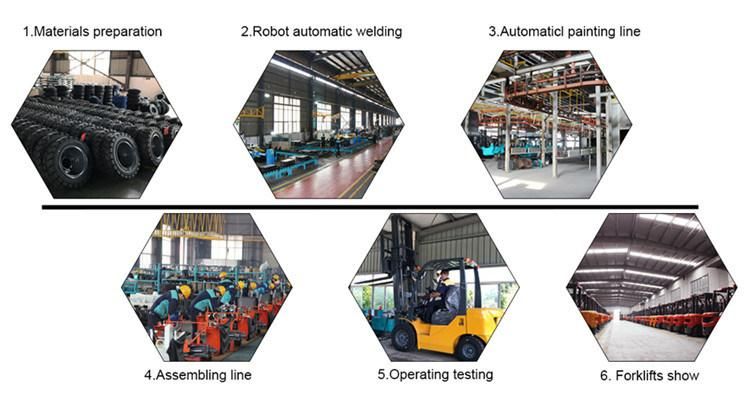

Our factory




Our customer

Our LTMG Forklift is widely used in the port, wharf, industrial and mining enterprises, station, warehouse, and others.
The quality of our LTMG forklift has been recognized by our customers.




After-sale service


LTMG always treat after-sale service important as the same as product quality.
LTMG grants our clients a twelve-month-period or 2000-hours warranty for any machine purchased from us.
LTMG can also help clients coordinate with trained service personnel to provide you detailed and extensive knowledge about your specific machine. With our technical advises, your machine service life can be significantly prolonged and sustained with high capacity.


FAQ

1.What's the Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System. All of our products with CE certificate. Some of our products meets the EPA requirements.
 2.Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements. However, All the customizing and refit should be implemented safely and scientifically. The colors can be painted as client's need.
 3.How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.
 4.Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.
 5.What's the payment terms do you accept?
On T/T term 30% down payment is required in advance,and 70% balance shall be settled before shipment.
 6.What logistics waysd we can work for shipment ?
We can ship construction machinery by various transportation tools.
1.For 90% of our shipment,we will go by sea,to all main continents such as South America,Middle East,Africa,Oceania and Europe etc,either by container or Bulk shipment.
2.For neighborhood countries of China,such as Russia,Mongolia, Kazakhstan,Uzbekistan etc., we can ship trucks by railway.
3.For light spare parts in urgent demand,we can ship it by international courier service,such as DHL,TNT,UPS,or Fedex.
7.Delivery time:
Standard configuration products are always in stock. The production period of Customizing products is 30 days.
