• Model NO.：FD38Z
• Lift height：3000~5000mm
• Condition：New
• Rated Capacity：3800kg
• Center of Load：500mm
• Lifting Height：3000mm
• Free Lifting Height：145mm
• Forks L*W*H：1070*125*45mm
• Tilt Forward/Backward：6,12
• Min.Turning Radius：2600mm
• Min.Ground Clearance(Mast)：120mm
• Transport Package：Nude
• Specification：1070*125*45
• Trademark：zoomlion
• Origin：China
• HS Code：84272090
• Production Capacity：10000 Units,Month

Basic Info.

Model NO. FD38Z Lift height 3000~5000mm Condition New Rated Capacity 3800kg Center of Load 500mm Lifting Height 3000mm Free Lifting Height 145mm Forks L*W*H 1070*125*45mm Tilt Forward/Backward 6/12 Min.Turning Radius 2600mm Min.Ground Clearance(Mast) 120mm Transport Package Nude Specification 1070*125*45 Trademark zoomlion Origin China HS Code 84272090 Production Capacity 10000 Units/Month

Product Description

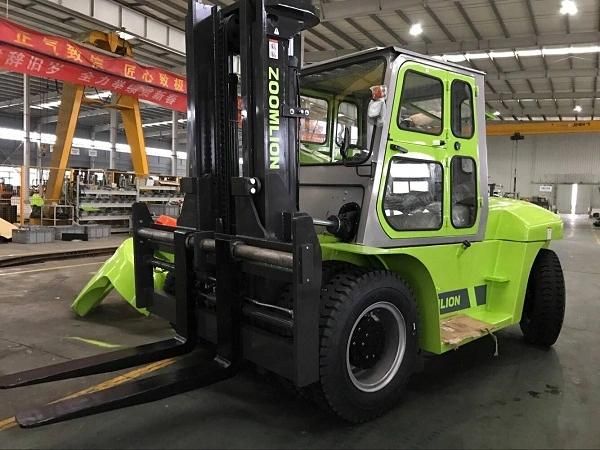

China brand  3.8Ton Zoomlion forklift FD38Z

Product Description



Advanced design

• •  1. The running speed is increased and operation efficiency is improved.



• • 2. The tail of the counterweight sees a ventilation area that is increased by 10% to further facilitate the



• • cooling.



• • 3. The sedan-type double-handle combination switch is configured to ease and facilitate the operation.



• • 4. Connections between steering axle and frame are shock-absorption treated, lowering the vehicle vibration by



• • 30%.



• • 5. Compared with vehicles of the same series of other brands. This vehicle enjoys great weight, stronger



• • load-bearing capacity and high cost performance.



• • 6. The vertical buffer function is designed for the lifting system so as to effectively decrease the impact and



• • shock of the mast.

Comfortable & Practical

• • 1. The vehicle is applied with brand new coating with a fresh and attractive tone. The color is matched more reasonably and delighting.



• • 2. The wide steps and broad driving space is provided to decrease the fatigue due to operation by legs.



• • 3. The middle exhaust tailpipe is installed to effectively prevent dust rising due to low exhaust.



• • 4. Conical sealing is adopted for the rubber pipes and joints in the hydraulic lines, which enjoys



• • satisfactory sealing effect and no oil leak for long.



• • 5. The control stick arrangement is optimized with brand new control handle and wide operation space,



• making operation more comfortable.

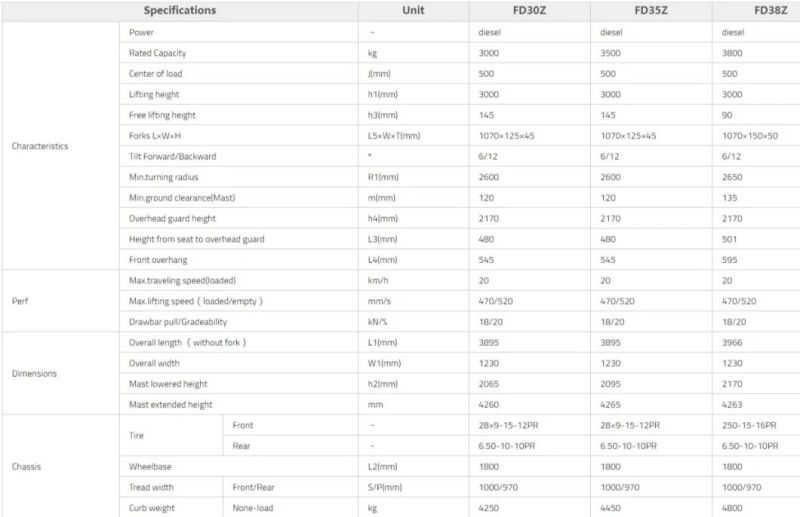

Main Parameter
