• Model NO.：3T,5T,7T
• Lift height：3000~5000mm
• Condition：New
• Center Distance of Load Rating：500mm
• Free Lifting Height：145mm
• Front Tire：23X9-10
• Max Braking Distance：4.5m
• Color：Optional
• Engine：Optional
• Rated Lifting Capacity：3000 Kg
• Standard Mast Lifting Height：3000mm
• Rear Tire：18X7-8
• Appearance of High：2110mm
• Warranty：1year
• OEM：Accept
• Motor：Optional
• Transport Package：Export Package
• Specification：2T,3T,3.5T,4T,5T,6T,7T
• Trademark：OUKE
• Origin：Jining, China
• HS Code：8427109000
• Production Capacity：200

ModelOKY-3.0TOKY-5.0TRated Load3000 kg5000 kgMax.unloading Height3500 mm3500 mmOverall Weight4500 kg7800 kgMax.Grade Ability  16°≤30° 16°≤30°Engine Model YUNNEI 490 Supercharged engineYUNNEI 4102 Supercharged engineEngine power55kw 76kwDrive modeFour-wheel drive Four-wheel driveSteering modeArticulatedArticulatedFront tire20.5/70-16 Steel wire tire900-20 Steel wire tireRear tire20.5/70-16 Pneumatic tire16/70-20 Pneumatic tireGround Clearance 280  mm32 mmWheelbase 2250  mm2450 mmMin.Turning Radius3750  mm4250 mmMax. speed 25-30km/s 25-30km/sDimensions4450*1800*2600 mm5350*2100*2800 mm

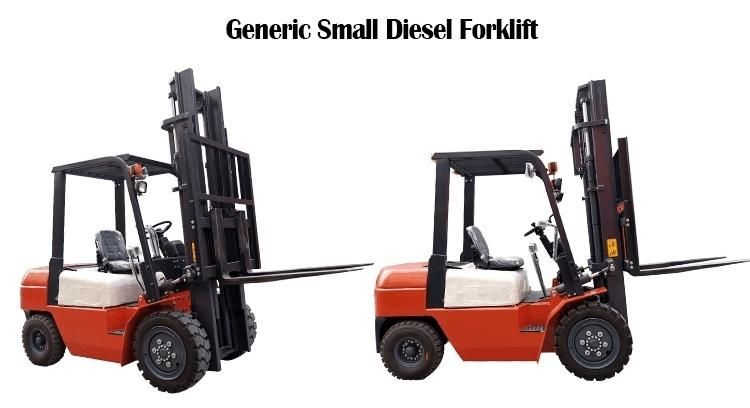

Generic Type


Small Forklift is a generic transportation vehicle, used for loading and unloading, short distance transport, heavy lifting, usually using diesel or battery driven. Simple operation and fast driving.

Widely used in railway station, port, airport, factory, warehouse, etc, is efficient equipment mechanical for loading andunloading, stacking and short distance transport.


ModelOKT-3.0TOKT-3.5TEngine4D27G314D27G31Rated load lifting capacity3000 KG3500 KGCenter distance of rated load500 mm500 mmStandard mounting height3000 mm1220 mmDoor frame inclination (front/back)6/12 º 6/12 ºMax. running speed (full load/no load)20 Km/h20K m/hLifting height2.2 m4.5 m(Customized)Max. climb (full load)20%20%Min. outside turning radius2510 mm2510mmMax. braking distance2.5m2.5mOverall dimension length (up to the fork back)3757 mm3757mmThe width of the shape1226 mm1226mmOverall height (up to roof guard)2125 mm2125mmTotal Weight4220 KG4420KG

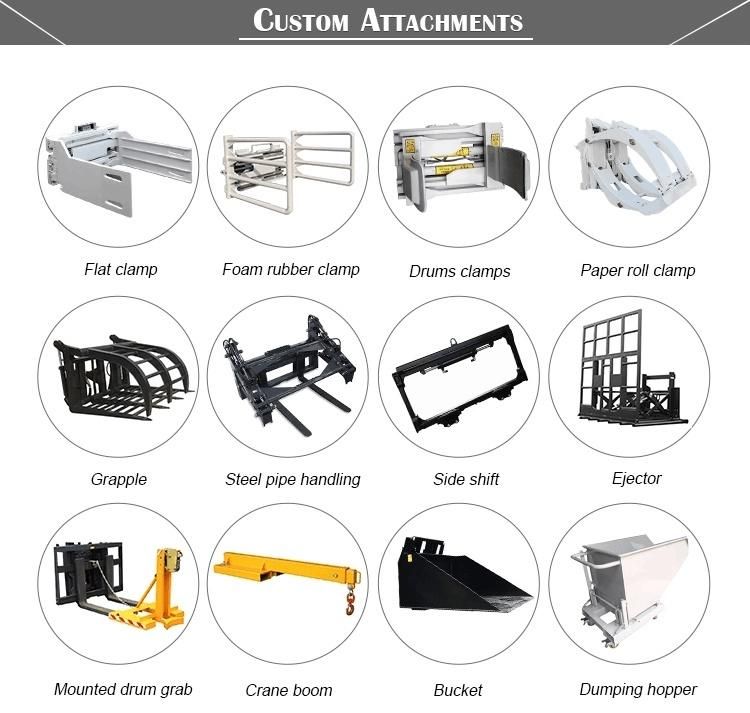

Custom Attachments

Packaging & Shipping
Company Information
