• Model NO.：TFZ
• Lift height：3000~9000mm
• Condition：New
• Model：Tfz
• Power Unit：Battery
• Operation：Seat
• Wheelbase：1425mm
• Wheels Number,Front/Back(X=Driven)：2,1X
• Mast Closure Height：2175mm
• Fork Size：1070*100*35mm
• Turning Radius：1700mm
• Steering System：Electric Steering
• Travel Speeds：8.5km,10h
• Lift Speeds：210mm,340s
• Lowering Speeds：300mm,250s
• Max. Climbing Ability：<=10
• Battery Voltage/Rated Capacity：48V,420ah
• Service Brake：Mechanical
• Transport Package：International Packing Way with Thick Plastic Film.
• Specification：2355*1290*2200mm
• Trademark：NOELIFT
• Origin：China
• HS Code：84271090
• Production Capacity：500 Pieces,Month

Basic Info.

Model NO. TFZ Lift height 3000~9000mm Condition New Model Tfz Power Unit Battery Operation Seat Wheelbase 1425mm Wheels Number,Front/Back(X=Driven) 2/1X Mast Closure Height 2175mm Fork Size 1070*100*35mm Turning Radius 1700mm Steering System Electric Steering Travel Speeds 8.5km/10h Lift Speeds 210mm/340s Lowering Speeds 300mm/250s Max. Climbing Ability <=10 Battery Voltage/Rated Capacity 48V/420ah Service Brake Mechanical Transport Package International Packing Way with Thick Plastic Film. Specification 2355*1290*2200mm Trademark NOELIFT Origin China HS Code 84271090 Production Capacity 500 Pieces/Month

Product Description

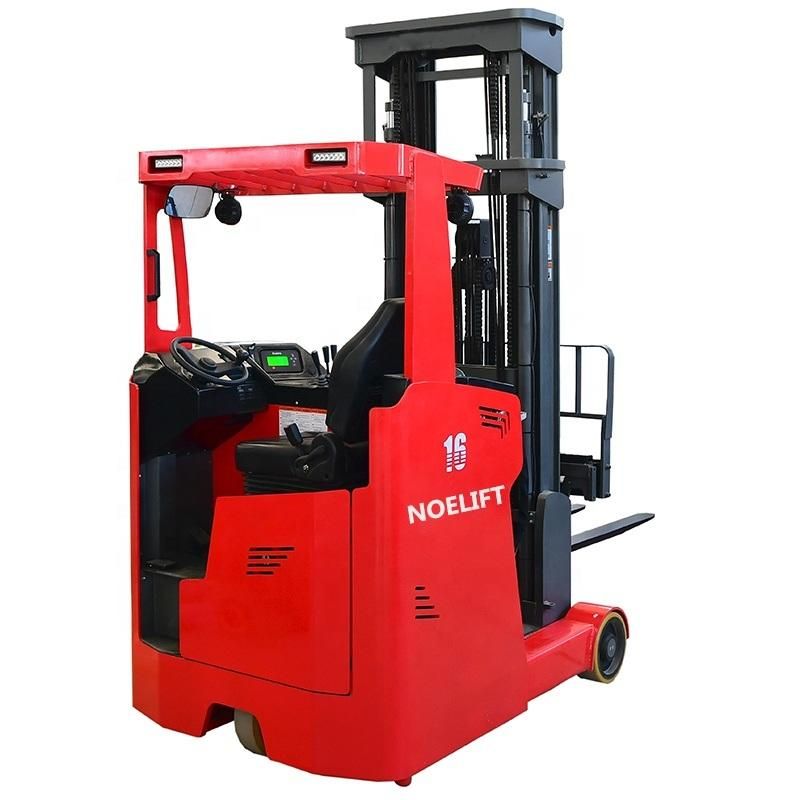

1.6 ton 2 ton sit type of electric reach truck

The MFZ series is a new forward-moving forklift with a load capacity of 1.6 to 2.0 tons. The gantry can be moved forward or retracted as a whole, with a smaller body and turning radius and higher efficiency. Applicable to: 1. Medium storage density, high turnover rate conditions 2. Stacking in narrow channels

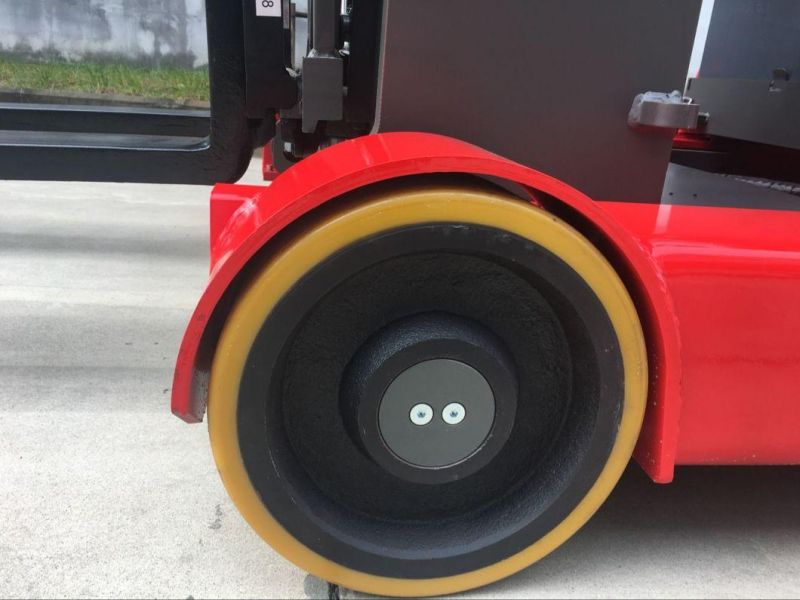

1. All-wheel brake: equipped with front wheel & rear wheel brakes, the brake effect is better, can be used on slippery and icy ground, and the operator can work safer;

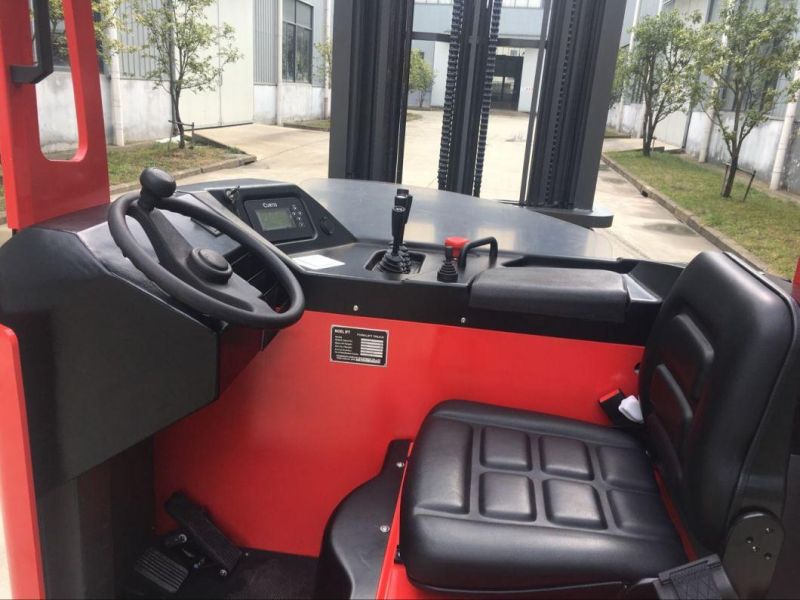

2, ergonomic design: easy to operate lever design and multi-function smart dashboard, with wheel display function, more comfortable and convenient operation; seat front and rear adjustable, to provide the operator with the most comfortable operating environment.

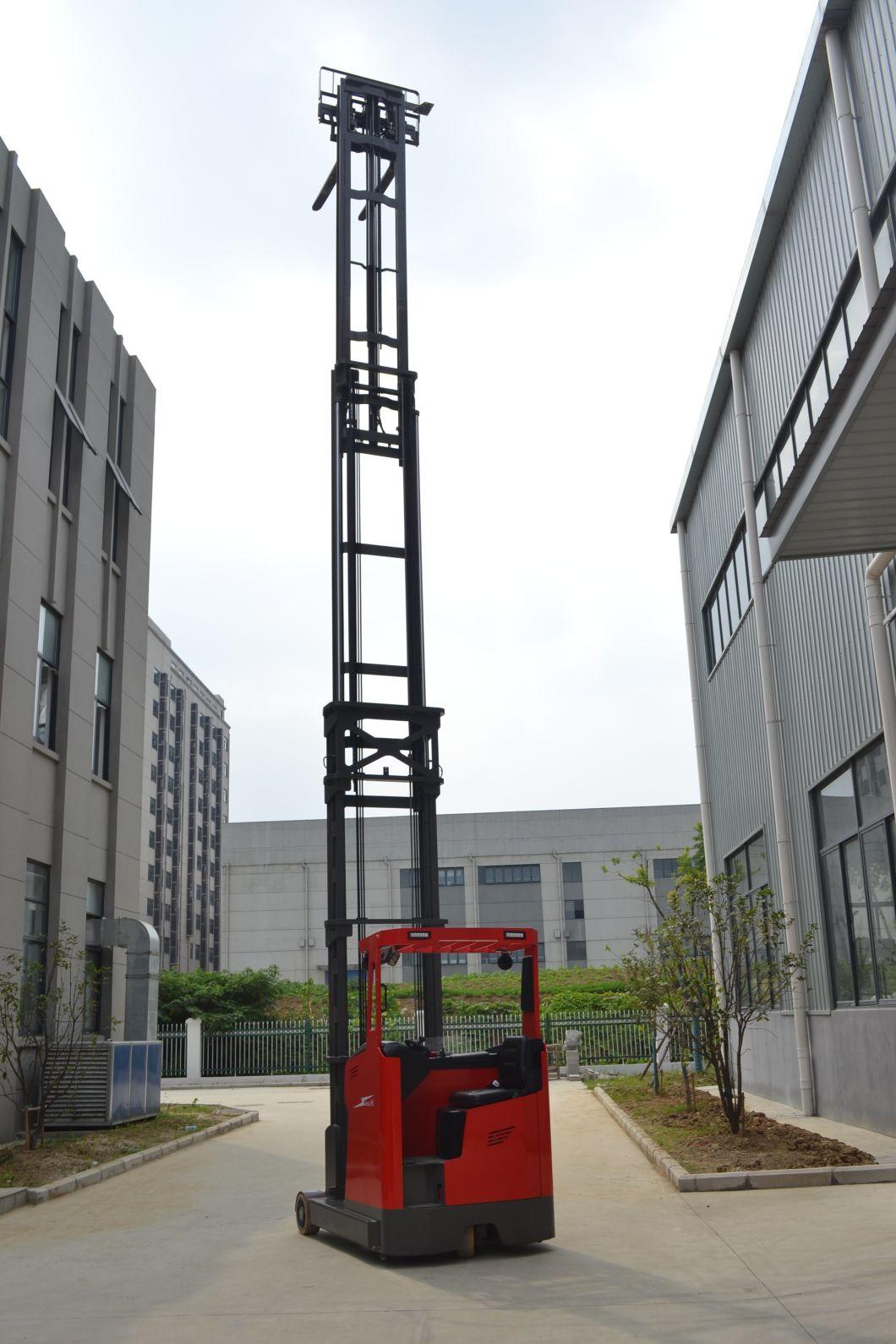

3, high surplus capacity door frame: high-precision gantry, no loss of load below 6000mm, the ability is also excellent in the ultra-high load.

4, strong endurance: full AC system design, using AC brushless motor, with high efficiency and energy saving, to meet the requirements of many operations under heavy working conditions.

5, high operating comfort: equipped with electronic steering, making steering more labor-saving, reducing fatigue strength and improving efficiency.

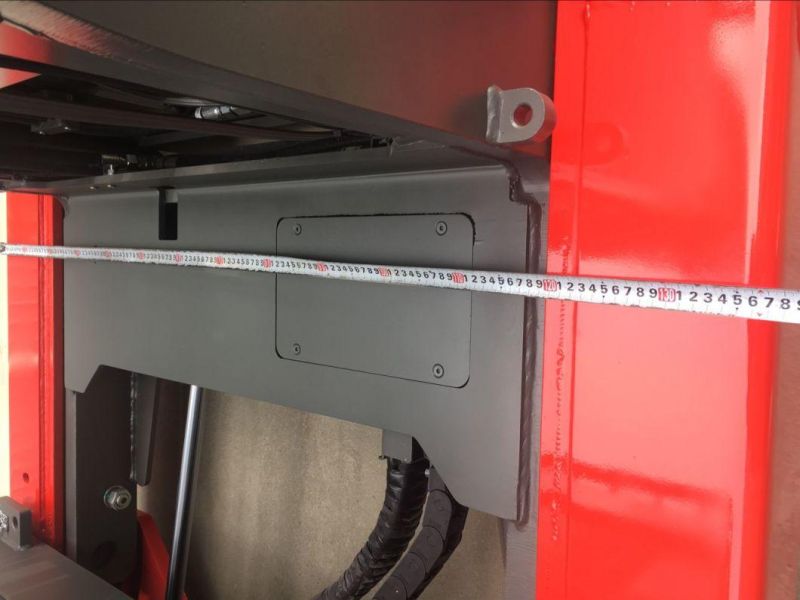

details

our company

NOELIFT EQUIPMENT CO.,LTD, as one of the professional material handling equipment manufacturer, we provide whole product range including diesel/gasoline/LPG forklift truck with load capacities of 1ton to 10tons and electric/warehouse trucks, which including 1-3.5tons electric forklift trucks, 1-2.5tons electric reach trucks, electric stackers, electric pallet trucks, hand-hydraulic pallet trucks, semi-electric stackers, electric tow tractors, etc. The full range encompassess close to 100 different models.






contact

1.6 ton 2 ton sit type of electric reach truck

International packing way with thick plastic film.

Thanks for coming to our Noelift company. if you need more information or technical assistance or any comment or questions, please feel free to contact with me.
