• Model NO.：TF
• Model：TF
• Power Unit：Battery
• Operation：Stand
• Wheelbase：1920mm
• Wheels Number,Front/Back(X=Driven)：2,1X+2
• Mast Closure Height：2082mm
• Fork Size：1070*125*45mm
• Turning Radius：2192mm
• Steering System：Pure Electric Steering
• Travel Speeds：8km,10h
• Lift Speeds：220mm,320s
• Lowering Speeds：340mm,290s
• Max. Climbing Ability：<=10
• Battery Voltage/Rated Capacity：48V,400ah
• Service Brake：Mechanical
• Transport Package：International Packing Way with Thick Plastic Film.
• Specification：2487*1270*2300mm
• Trademark：NOELIFT
• Origin：China
• HS Code：84271090
• Production Capacity：500 Pieces,Month

Basic Info.

Model NO. TF Model TF Power Unit Battery Operation Stand Wheelbase 1920mm Wheels Number,Front/Back(X=Driven) 2/1X+2 Mast Closure Height 2082mm Fork Size 1070*125*45mm Turning Radius 2192mm Steering System Pure Electric Steering Travel Speeds 8km/10h Lift Speeds 220mm/320s Lowering Speeds 340mm/290s Max. Climbing Ability <=10 Battery Voltage/Rated Capacity 48V/400ah Service Brake Mechanical Transport Package International Packing Way with Thick Plastic Film. Specification 2487*1270*2300mm Trademark NOELIFT Origin China HS Code 84271090 Production Capacity 500 Pieces/Month

Product Description

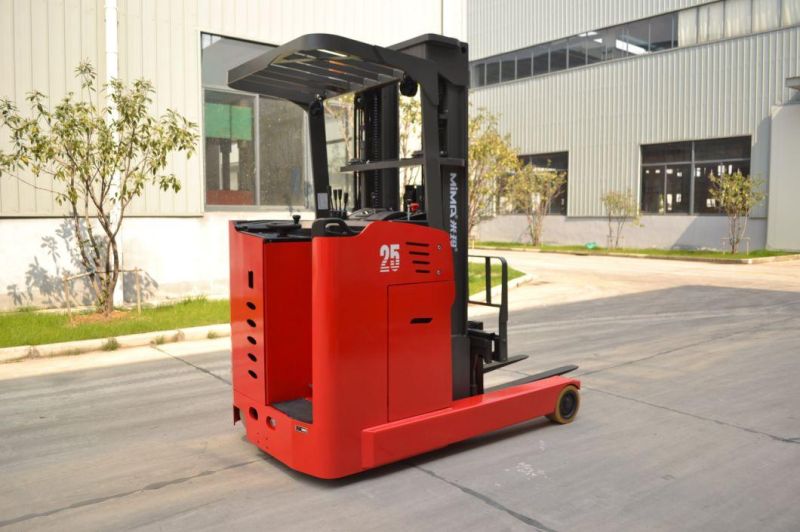

1 ton-3 ton electric reach truck of stand type

48V Electric Reach Track TF series

1, Narrow Chassis suit for narrow asiles.

2, 7.2M lifting height is no problem.
3, Wide vision mast, soft and comfortable design.

TF Series with AC driving motor, Rated load capacity:1500- 2500kg, lift height: 7200mm, it's popular in every industries;
1. Safety Device for neutral position to increase the safety of forklift;
2. High Strength frame to protect the operator;
3. Oil-way stop Valve,to protect the operator and goods;

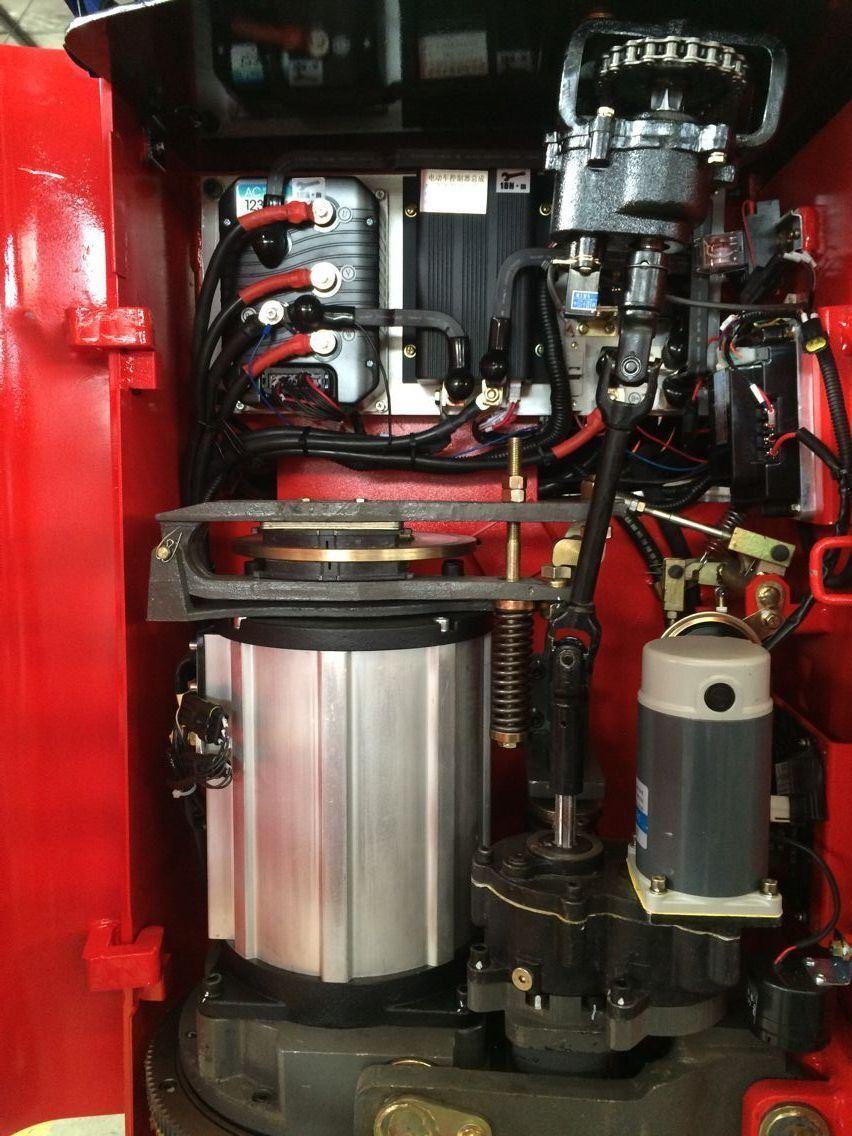

4. AC electric controller with multiple automatic safety protection settings, to reduce the operation accident by misoperation;
5. Inching capacity, the forklift can finish the extremely adjustment during moving




details

our company

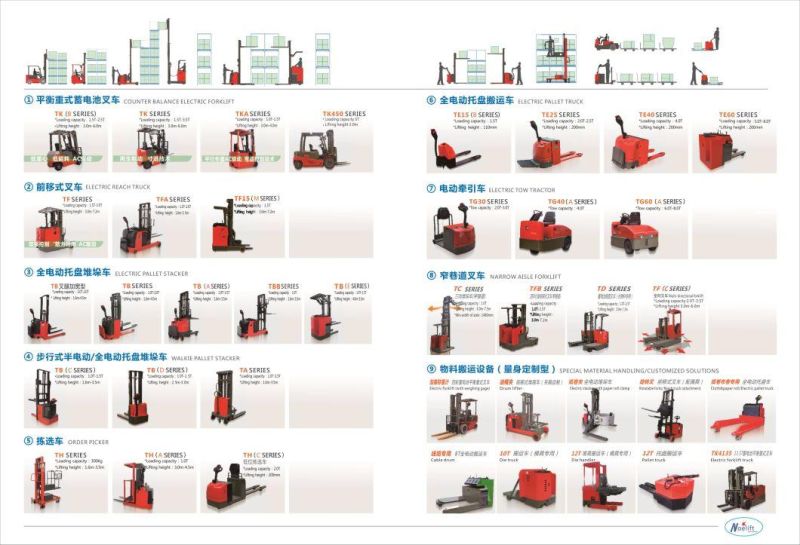

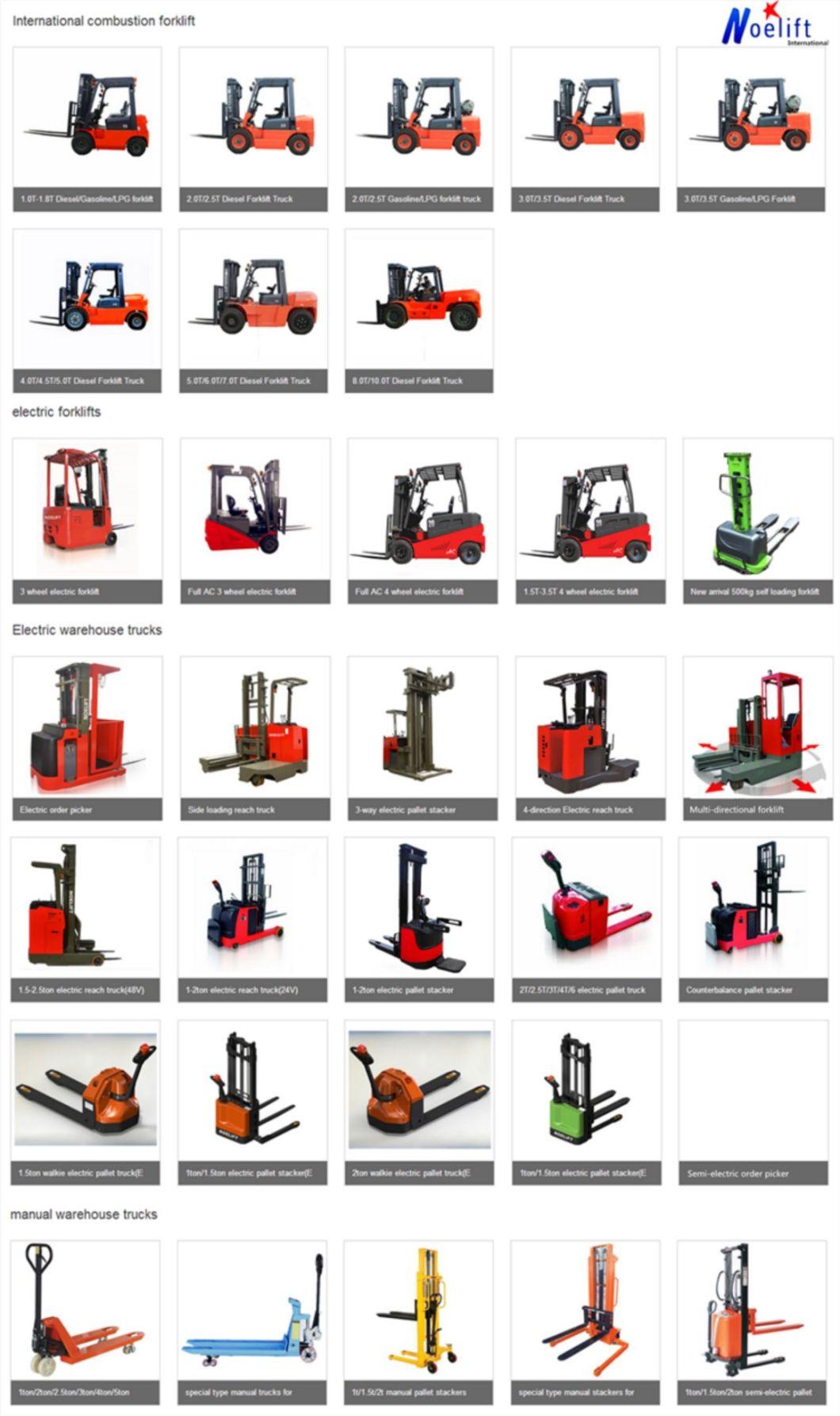

NOELIFT EQUIPMENT CO.,LTD, as one of the professional material handling equipment manufacturer, we provide whole product range including diesel/gasoline/LPG forklift truck with load capacities of 1ton to 10tons and electric/warehouse trucks, which including 1-3.5tons electric forklift trucks, 1-2.5tons electric reach trucks, electric stackers, electric pallet trucks, hand-hydraulic pallet trucks, semi-electric stackers, electric tow tractors, etc. The full range encompassess close to 100 different models.






contact

4 wheel electric forklift

International packing way with thick plastic film.

Thanks for coming to our Noelift company. if you need more information or technical assistance or any comment or questions, please feel free to contact with me.

Ms. NOE WANG
Web: noelift.en.made-in-china.com
Hangzhou noelift equipment co.,ltd
