• Model NO.：FD150
• Lift height：3000~5000mm
• Condition：New
• Fork Size：1800mm*180mm*90mm
• Engine：Yuchai
• Rated Power/Rotate Speed：125kw,2200rpm
• Color：Decided by Buyer
• Warranty：1 Year or 2000 Hours
• Tilt Angle：6,12 Deg
• Wheel Base：3800mm
• Wheel(F/R)：4,2
• Truck Weight：22000kg
• Ground Clearance：265mm
• Transport Package：Container
• Specification：7645mm*2750mm*3625mm
• Trademark：LTMG
• Origin：China
• HS Code：84272090
• Production Capacity：800sets,Year

ModelUnitFD150Rated loadkg15000Load centermm600Free liftmm180Mast tilt angle (front/rear)º6/12Overall dimensionsLengthmm7645Widthmm2750Heightmm3625Mast lifting heightmm3500Fork size (L*W*H)mm1800X180X90Min. turning radiusmm5800Max. travel speed (with load)Km/h28Lifting speed (with load)mm/s300Gradeability (with load)%20WeightKg22000Front 4X12.00-24/18PRRear 2X12.00-20/18PRWheel treadFrontmm2060Rearmm2330Wheelbasemm3800Min. ground clearancemm265Model YC6A175Z-T20Rated power/rotate speedKW/r.pm125/2200Max. torque/rotate speedN.m/r.pm650/1400
Product Features

Engine: Yuchai YC6A175Z-T20 Engine, strong power, energy conservation and environmental protection.
Steering system: adopt transverse oil cylinder type steering bridge, full-hydraulic steering, flexible and light, reliable.
Transmission & torque converter: imported technology, reliable performance, convenient maintenance, smooth transmission, and convenient operation.
Braking system: use mature product from professional manufacturer, disc brakes, heat dissipation faster, light, simple structure and easy to adjust. Especially have very good thermostability performance when heavy loaded, braking effect stable.
Explosion proof safety valve for pipeline:avoid the pipeline bursting suddenly,ensure system working safety and reliability.
Control system: pilot valve control device to make the work efficiency and reduce drivers' labor intensity.
Cooling system:adopt independent transmission oil and hydraulic oil cooling,increasing system stability
Frame structure: Exquisite workmanship &firm box-type frame, improve the transverse, longitudinal stability of vehicles.The vehicle get through the 3D finite element analysis, superior structure, reliable quality; the main welding parts through the nondestructive testing, effective coordination with the reinforced structure,bridge,box.
Fork: standard with hydraulic fork positioner, easy operation and reduce drivers' labor intensity.
Mast: box-type internal-external mast, special all-round roller bearings, increase lifting performance.
Cab: Smooth and beautiful appearance, the cab uses new composite decoration materials, and match with air-conditioner, more open vision.

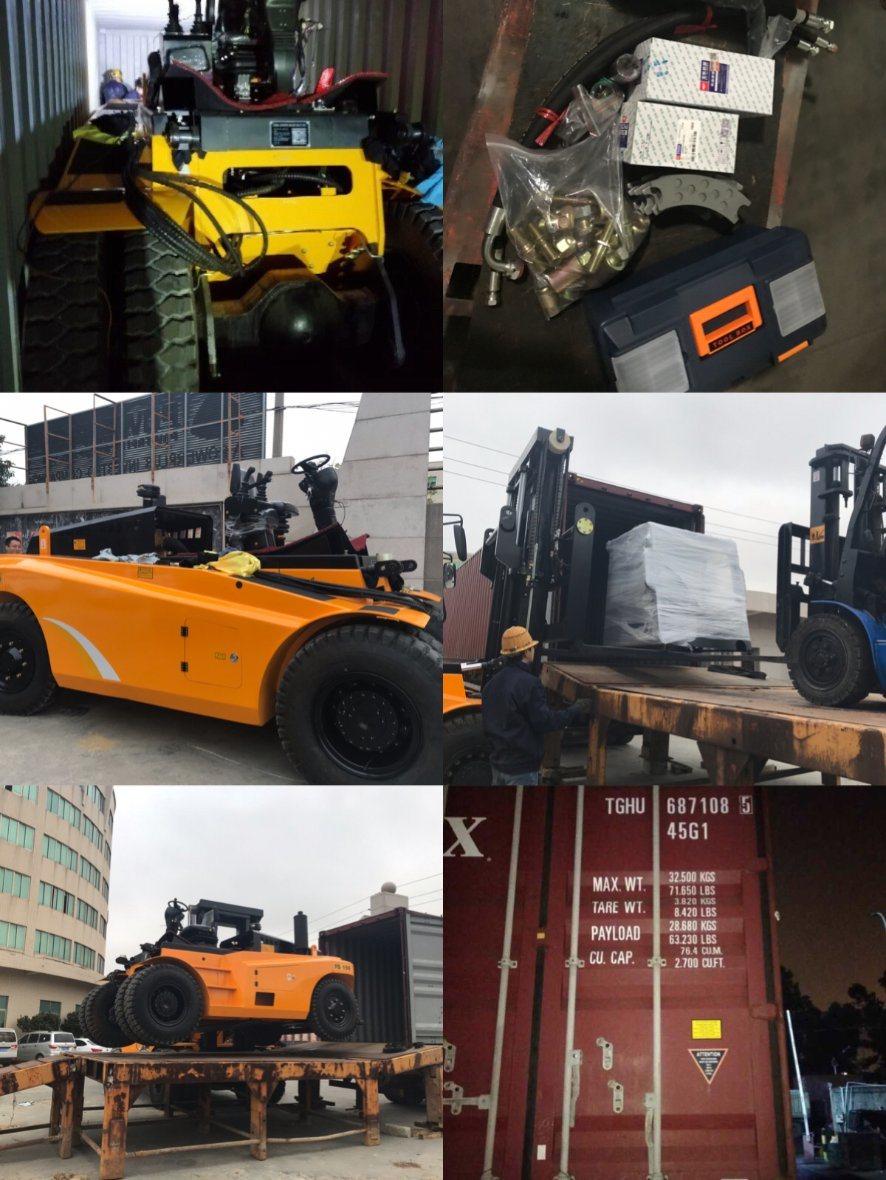

Packing &shipping






After sales service

LTMG always treat after-sale service important as the same as product quality.
LTMG grants our clients a twelve-month-period or 2000-hours warranty for any machine purchased from us.
LTMG can also help clients coordinate with trained service personnel to provide you detailed and extensive knowledge about your specific machine. With our technical advises, your machine service life can be significantly prolonged and sustained with high capacity.

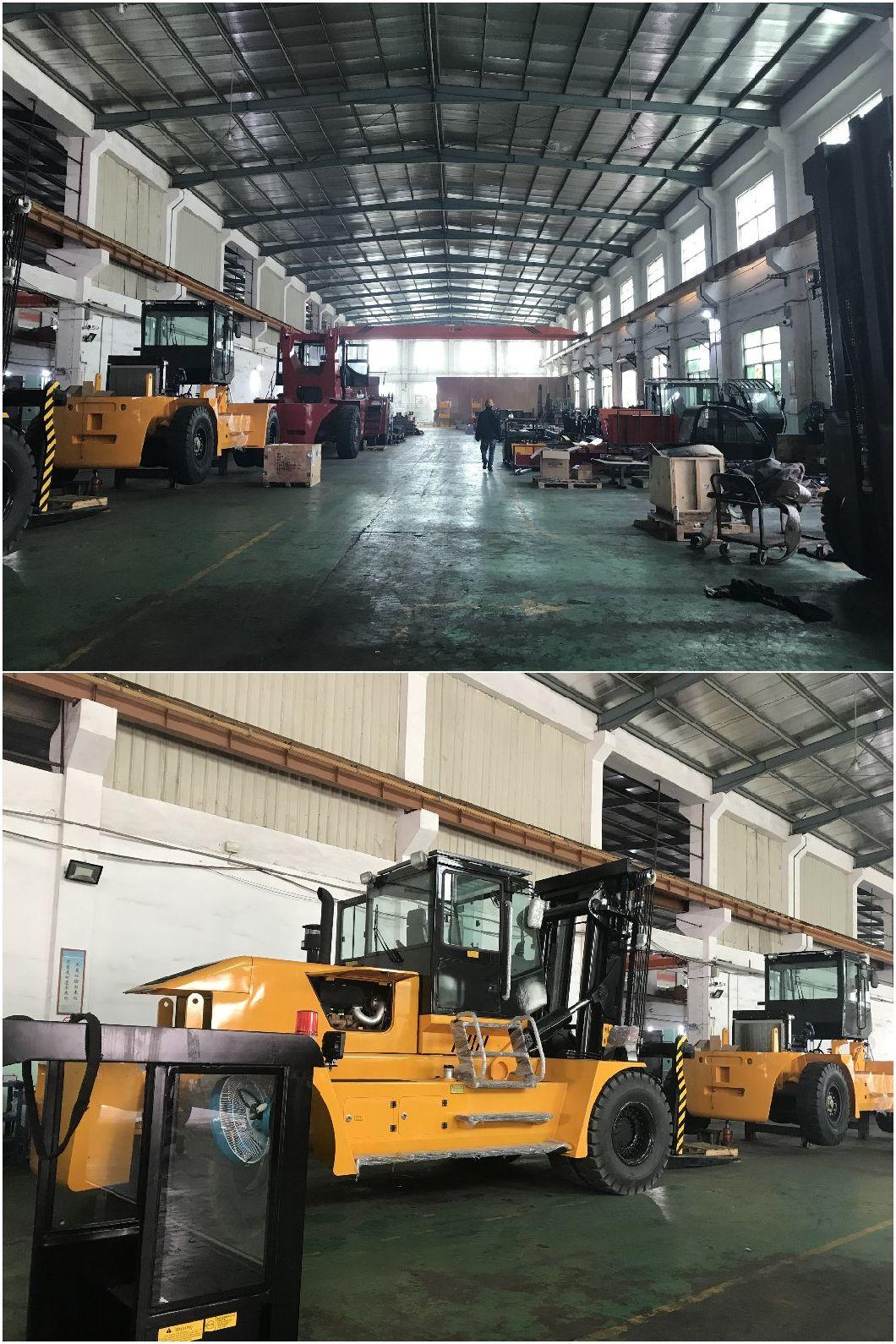

Factory &Customer
