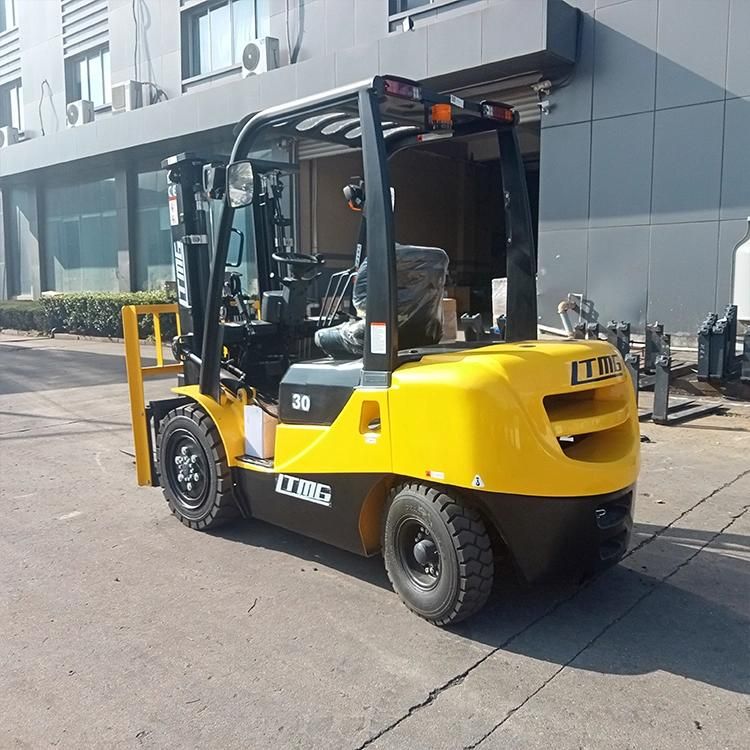

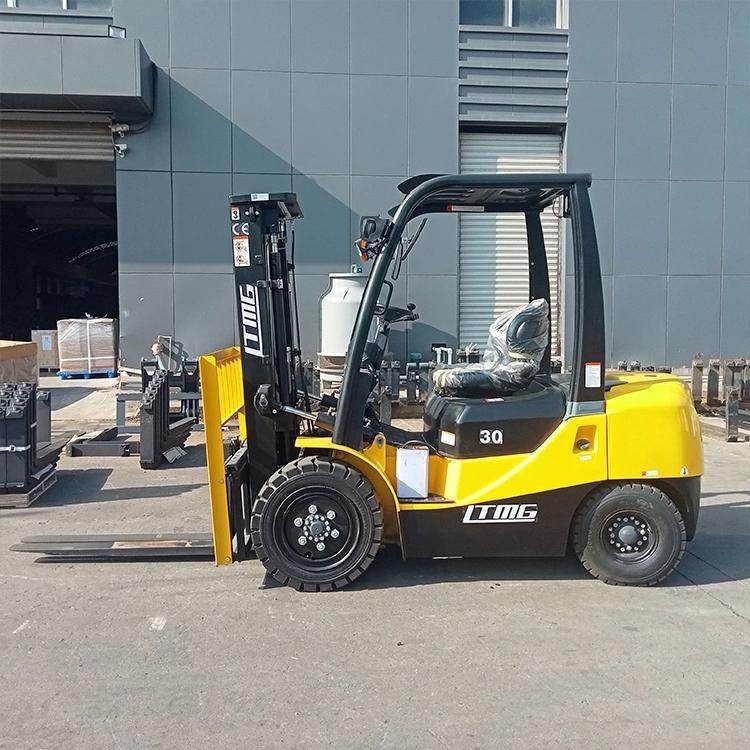

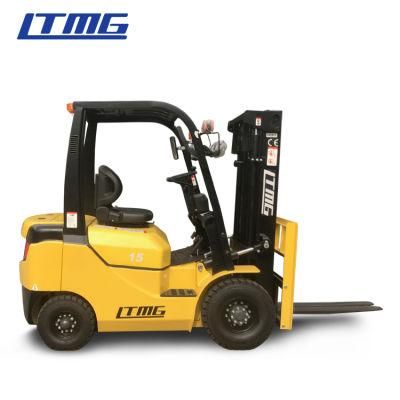

Powerful Duel Fuel Gas Fork Lift 1.5t 1.8t 2t 2.5ton 3ton Customized LPG Forklift with CE Approval

XIAMEN LTMG CO., LTD.
  • Warranty：1 Year , 2000 Working Hours
  • Cab Location：Adjustable
  • Type：LPG Forklift
  • Power：LP Gas Engine
  • Load Capacity：3 Ton
  • Fuel：LPG

Base Info

  • Model NO.：FG30
  • Load center：500mm
  • Lift height：3000mm
  • Condition：New
  • Item Name：Ltmg 3ton 3.5ton LPG Forklift Truck Chinese Forkli
  • Brand：Ltmg
  • Product Type：LPG Forklift
  • Load Centre：500mm
  • Min. Turning Radius(Outside)：2440mm
  • Wheelbase：1700mm
  • Ground Clearence：140 mm
  • Rated Output/r.p.m.：35.6,2100
  • Color：Customized by Customers
  • Certificate：CE,ISO
  • Overall Width：1225mm
  • Max. Gradeability：20%
  • Service Weight：4300kg
  • Transport Package：Container
  • Specification：2730mm*4150mm*1225mm
  • Trademark：LTMG
  • Origin：China
  • HS Code：8427209000
  • Production Capacity：800sets,Year

Description

General1Model FG302Power type LPG3Rated Capacitykg30004Load centremm500Characteristic&Dimension5Lift Heightmm30006Fork SizeL×W×T   mm1070×125×457Mast title AngleF/RDeg6°/12°8Front Overhang (Wheel center to fork face)mm4809Ground clearance (Bottom of mast)mm14010Overall DimensionLength to face of fork (without fork)mm273011Overall widthmm122512Mast Lowered Heightmm211513Mast Extended Height (with backrest)mm415014Overhead Guard Heightmm209015Turning Radius (outside)mm244016Min. intersecting aislemm2960Performance17SpeedTravel(no load)km/h2018Lifting(full load)mm/s51019Max Gradeability%20Chassis 20TireFront 28×9-15-12PR21Rear 6.50-10-10PR22Wheelbasemm170023Service Weightkg4300Power&Transmission24BatteryVoltage/Capacity                                      V/Ah12/8025EngineModel K2526Manufacture GCT(NISSAN)27Rated output/r.p.m.kwt/r.p.m35.6/210028Rated torque/r.p.m.N·mt/r.p.m176.5/160029No.of Cylinder 430Bore×Strokemm89×10031Displacementcc248832 Fuel Tank CapacityL6033TransmissionType Hydraulic34StageFWD/RVS 1/135Operating pressure for attachmentMpa19
Powerful Duel Fuel Gas Fork Lift 1.5t 1.8t 2t 2.5ton 3ton Customized LPG Forklift with CE ApprovalPowerful Duel Fuel Gas Fork Lift 1.5t 1.8t 2t 2.5ton 3ton Customized LPG Forklift with CE ApprovalPowerful Duel Fuel Gas Fork Lift 1.5t 1.8t 2t 2.5ton 3ton Customized LPG Forklift with CE Approval

Powerful Duel Fuel Gas Fork Lift 1.5t 1.8t 2t 2.5ton 3ton Customized LPG Forklift with CE Approval

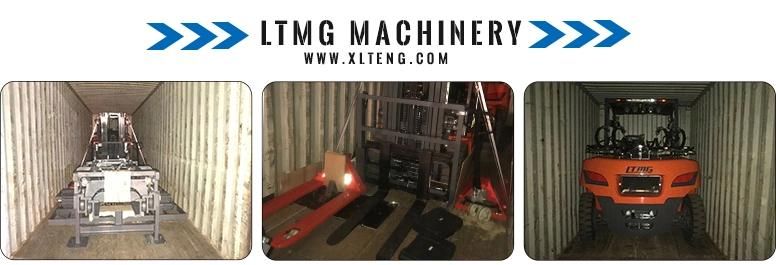

Powerful Duel Fuel Gas Fork Lift 1.5t 1.8t 2t 2.5ton 3ton Customized LPG Forklift with CE ApprovalPacking & Delivery

Powerful Duel Fuel Gas Fork Lift 1.5t 1.8t 2t 2.5ton 3ton Customized LPG Forklift with CE Approval

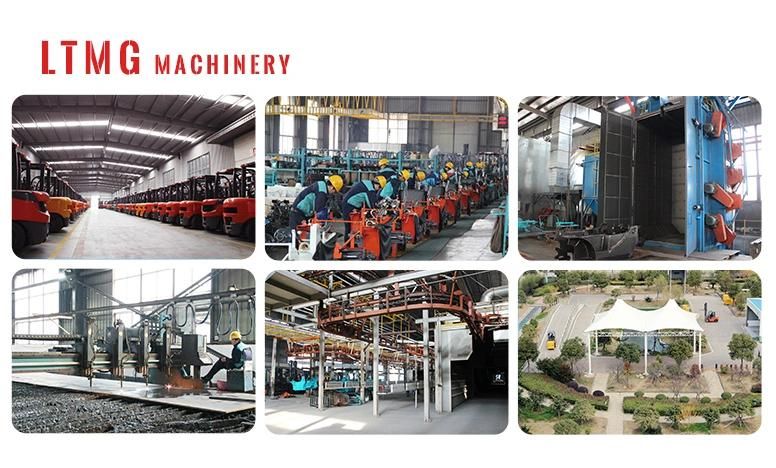

About us

LTMG Machinery Group (LTMG) has always kept its professional role in Chinese Material Handling Equipment &Construction Machinery industry.

At present, Forklift production base owns 120,000 square meters production base and 15000 units forklifts annual production capacity.

LTMG defines itself as the high cost-effective construction machine manufacturer. Beside meeting the demand of domestic market, over 30 LTMG overseas agents have been set up to provide global users with all-round marketing service, So far LTMG have exported to more than 110 countries and regions around the world.
Powerful Duel Fuel Gas Fork Lift 1.5t 1.8t 2t 2.5ton 3ton Customized LPG Forklift with CE Approval
Powerful Duel Fuel Gas Fork Lift 1.5t 1.8t 2t 2.5ton 3ton Customized LPG Forklift with CE Approval
Customers Show

Our LTMG Forklift is widely used in the port, wharf, industrial and mining enterprises, station, warehouse, and others.
The quality of our LTMG forklift has been recognized by our customers.
