Ltmg 3 Wheel 4 Wheel Battery Fork Lift 1.5 Ton 2ton 2.5 Ton 3ton 5 Ton Mini Electric Forklift with Side Shifter

XIAMEN LTMG CO., LTD.
  • Warranty:1 Year or 2000 Working Hours
  • Cab Location:Adjustable
  • Type:Electric Forklift
  • Power:AC Motor
  • Load Capacity:1.5 Ton
  • Fuel:Battery

Base Info

  • Model NO.:FB15
  • Load center:500mm
  • Lift height:3000~5000mm
  • Condition:New
  • Product Name:Chinese 1.5 Ton Electric Forklift Machines
  • Item:1.5ton Electric Forklift
  • Wheelbase:1420mm
  • Weight:3070kg
  • Gradeability:15
  • Fork Size:920mm*120mm*35mm
  • Overall Length(Without Fork):2190mm
  • Max.Lifting Height:3000mm
  • Load Distance:480mm
  • Transport Package:Container
  • Specification:2190mm*1090mm*2190mm
  • Trademark:LTMG
  • Origin:China
  • HS Code:8427109000
  • Production Capacity:800 Sets,Year

Description

ModelFB15FB20FB30Rated Capacity1500kg2000kg3000kgLoad Centre500mm500mm500mmLift Height3000mm3000mm3000mmFork Size (L×W×T) 920×120×35(mm)1070×120×401070×125×45Length to fork face of fork (Without fork)2035mm2360mm2610mmOverall Width1150mm1160mm1230mmOverhead Guard Height1995mm2240mm2250mmTurning Radius (outside)1997mm2075mm2350mmWheelbase1360mm1510mm1700mmDriven Motor5.5KW11KW15KWLift  Motor6KW8.6KW12KWBattery Standard48/400V/Ah48/560V/Ah80/500V/AhController ManufacturerCURTIS ACCURTIS ACCURTIS AC

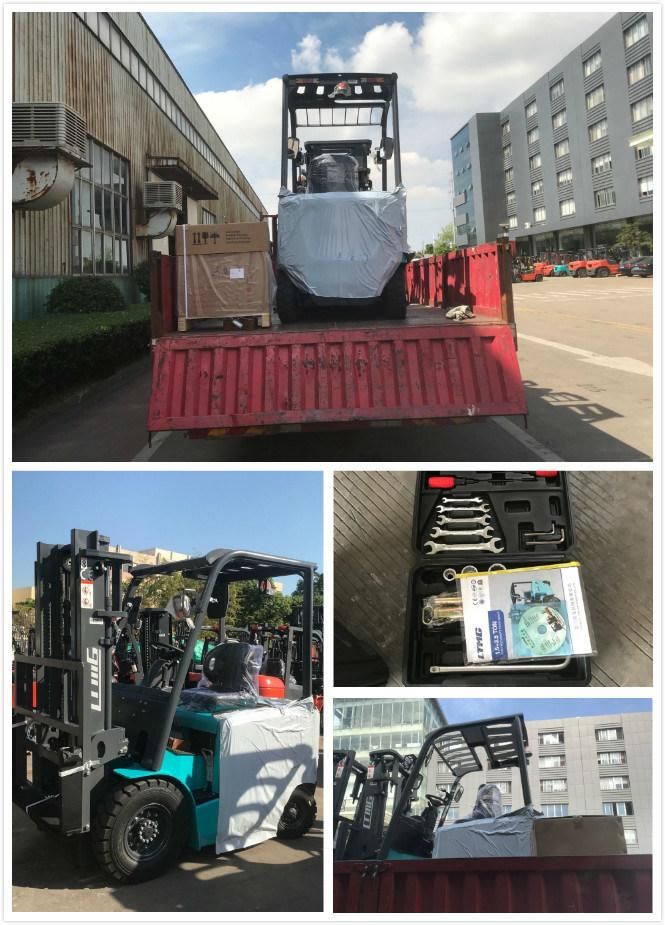

Packaging & Shipping

Ltmg 3 Wheel 4 Wheel Battery Fork Lift 1.5 Ton 2ton 2.5 Ton 3ton 5 Ton Mini Electric Forklift with Side Shifter

After sales service

LTMG always treat after-sale service as important as sale.
Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.

All the product of LTMG supplied with 1 year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.

Ltmg 3 Wheel 4 Wheel Battery Fork Lift 1.5 Ton 2ton 2.5 Ton 3ton 5 Ton Mini Electric Forklift with Side Shifter
Our factory

Ltmg 3 Wheel 4 Wheel Battery Fork Lift 1.5 Ton 2ton 2.5 Ton 3ton 5 Ton Mini Electric Forklift with Side Shifter
