• Model NO.：FG20
• Load center：500mm
• Lift height：3000~5000mm
• Condition：New
• Fork Size：1070mm*122mm*40mm
• Weight：3240kg
• Engine：Nissan K21
• Color：Decided by Buyer
• Max. Lifting Height  ：3000mm
• Rated Power：47kw,2250rpm
• Tire Type：Pneumatic
• Wheelbase：1600mm
• Transport Package：Nude Packing, Fixed in Container
• Specification：2460mm*1150mm*2120mm
• Trademark：LTMG
• Origin：China
• HS Code：8427209000
• Production Capacity：800sets,Year

Manufacturer                          LTMGModel                                   Power shift T/M         FG20Manual shift T/M    FG20Load capacity                        kg2000Load center mm500Power unit   Gasoline/LPGOperator type  Driver/seat Tire type    Front/rear PneumaticWheel Front/rear 2/2Max. lifting height                   mm3000Free lift                       mm160Fork size L*W*Tmm1070*122*40Tilt range                               Mast forward/backward             deg6/12Overall length(without fork)     mm2460Total width   mm1150Mast height (fork lowering)    mm1995Overall height fork raised      With backrest                             mm4030Height to head guard              mm2120Turning radius(outside)           mm2170Front face of fork to front axle mm450Min. right angle stacking aisle  without load length&clearance                    mm2615SpeedMax Travelling         full/no loadkm/h17/19Lifting              full/no load        mm/s550/580Lowering         full/no load          mm/s450/550Max.drawbar pull                  Power shift T/M      full/no load                                      kg1650/830Manual shift T/M       full/no load                                kg1700/830Gradeability at 1.6km/h         Power shift T/M      full/no load                                      %25/20Manual shift T/M       full/no load                                          %25/20Truck weight  kg3240Weight  distributionFull  load              front/rear        kg4660/580No  load               front/rear      kg1470/1770Tires                                      Numberfront/rear2/2Modelfront axle 7.00-12-12PRrear axle6.00-9-10PRWheelbase                              mm1600Tread    Front/rearmm970/970Ground clearance                 At lowest point(mast)                 mm110Framemm115Brake                                           Service  brake Hydraulic-foot pedal                                            Parking brake Mechanical-hand lever                                        Battery                                         Voltage/capacityV/AH12/60Engine                                         Model Nissan K21Rated powerPS(kw/rpm)47/2250(34.6/2250)Rated torquekg-m    max.(N.m)15.7/1600(153/1600)Number of cylinders 4PlacementL2.065Fuel tank capacityL70Transmission    Speed forward/backward          Power shift T/M Manual shift T/M    1-1 power shift T/M
2-2 manual shiftT/M    Operating pressure                   Hydraulic system pressure         kg/cm²180
Product Features

1.Safe:
LED work lights and warning lights make it safer and more efficient evenin poor lighting conditions.
New designed overhead guard protective device prevent the sudden accidents.

Thicker reinforcing plate ensure the safety and efficiency.

2.Easy to operate:
Linde-Technology single chain with reinforced load backrest--makes an excellent and wider field of visionfor operator.

3.Beautiful and comfortable:
New suspension adjustable seat makes the long time operating more comfortable.
Step area is 1.5 times larger with lower step height than fellow forklifts.

4.Durable:
Sunken tilt cylinder under the floor build broader flat floor and less abrasion.
Change plastic slider to alloy copper slider, reduce the abrasion and narrow the gap between masts.
Thicker steering axle bridge deck.

5.Environmental:
Middle muffler, more environmental.

6.High technology:
Maintenance free radiators adopt Germany technology.

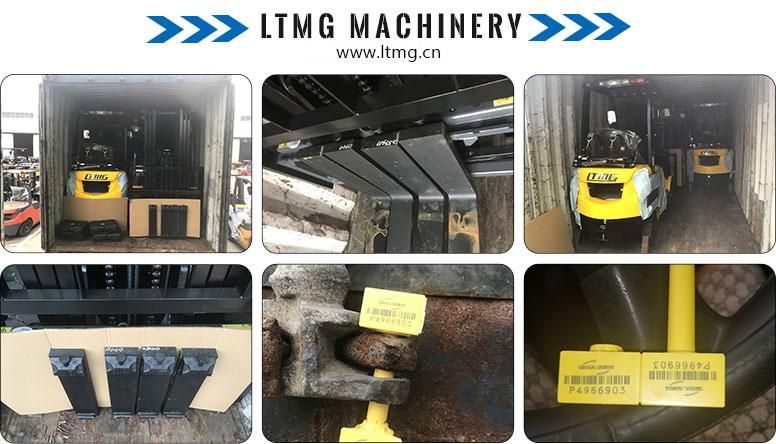

Packaging&Shipping

Factory show






After sales service
LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
