• Model NO.：FGL20,FGL25,FGL30,FGL35
• Fuel：Diesel
• Load center：500mm
• Lift height：3000~5000mm
• Condition：New
• Model：Fg(L)20
• Liftheight：3000mm
• Free Lift Height：140mm
• Fork Size：1070,120,40
• Mast Tilt Angle：6,12
• Front Overhang：484mm
• Length to Fork Facea：2510mm
• Overall Width：1150mm
• Mast Lowered Heightdimension：2050mm
• Mast Extended Height：4040mm
• Turning Radius：2170mm
• Overhead Guard Height：2060mm
• Lift Speed with Load：470
• Max. Grade Ability：20
• Service Weight：3550kg
• Transport Package：International Packing Standard Way with Additional
• Specification：2775*1225*2230mm
• Trademark：NOELIFT
• Origin：Zhejiang
• HS Code：8427102
• Production Capacity：600units

  NOELIFT2ModelUnitFD30/FG(L)30FD35/FG(L)35FD40/FG(L)40FD503Power type DIESELDIESELDIESELDIESEL4Rated capacitykg30003500400050005Max lift heightmm30003000300030006Load centremm5005005005007Mast extend heightmm42624262427542808Max lift height of forkmm30003000300030009Mast closed heightmm206521802150233010Free lift heightmm16017015015012Overall length (Without fork)mm268226932895310513Overall Widthmm122512251410148014Front overhangmm47949850056515Rear overhangmm49549549554016Wheel basemm170017001900200017The height of traction pinmm31031033035018Min. ground clearancemm13513513016019Fork Sizemm1070X125X451070X125X501070X130X501070X150X5020The distance between forksmm1060/2501060/2501290/2601370/30021Tread(front/rear)mm1000/9701000/9701160/10651180/119022Min. Turning Radius(outside)mm240024202700278023Min. Turning Radius(inside)mm20020023027024Min. intersecting aislemm238024002685336526SpeedTravel (full  load/no load)km/h18/1919/1918/1918/1927Lifting(full  load/no load)mm/s440/480330/370350/380400/45028Lowering(full  load/no load)mm/s450/500350/400350/400350/40029Max.Grade ability(with/without full load)%20/2015/2015/1818/2030Total weightkg427047005310640031Weight distribution full load(front/rear)kg6543/7277380/8208380/9309540/136032Weight distribution sero load(front/rear)kg1708/25601880/28202120/31902630/3770

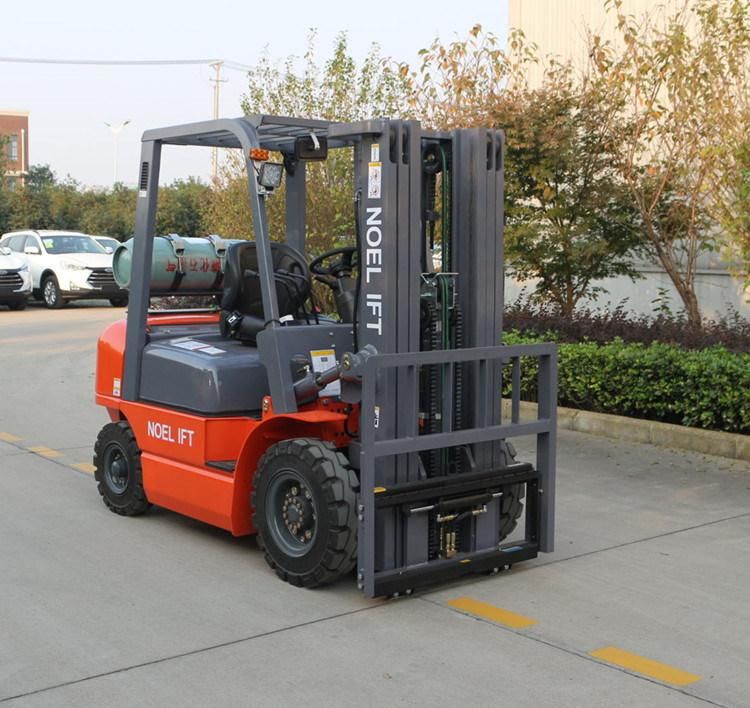

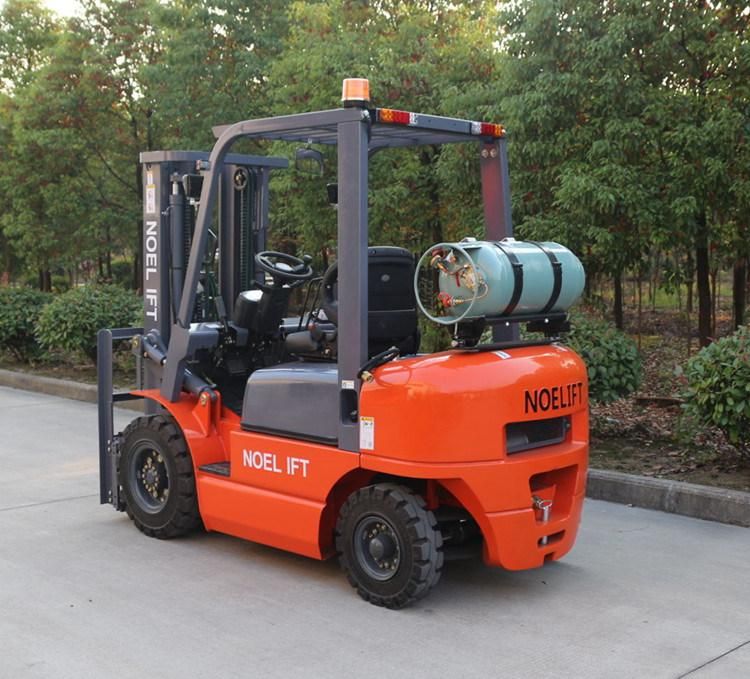

FORKLIFT DETAILS
