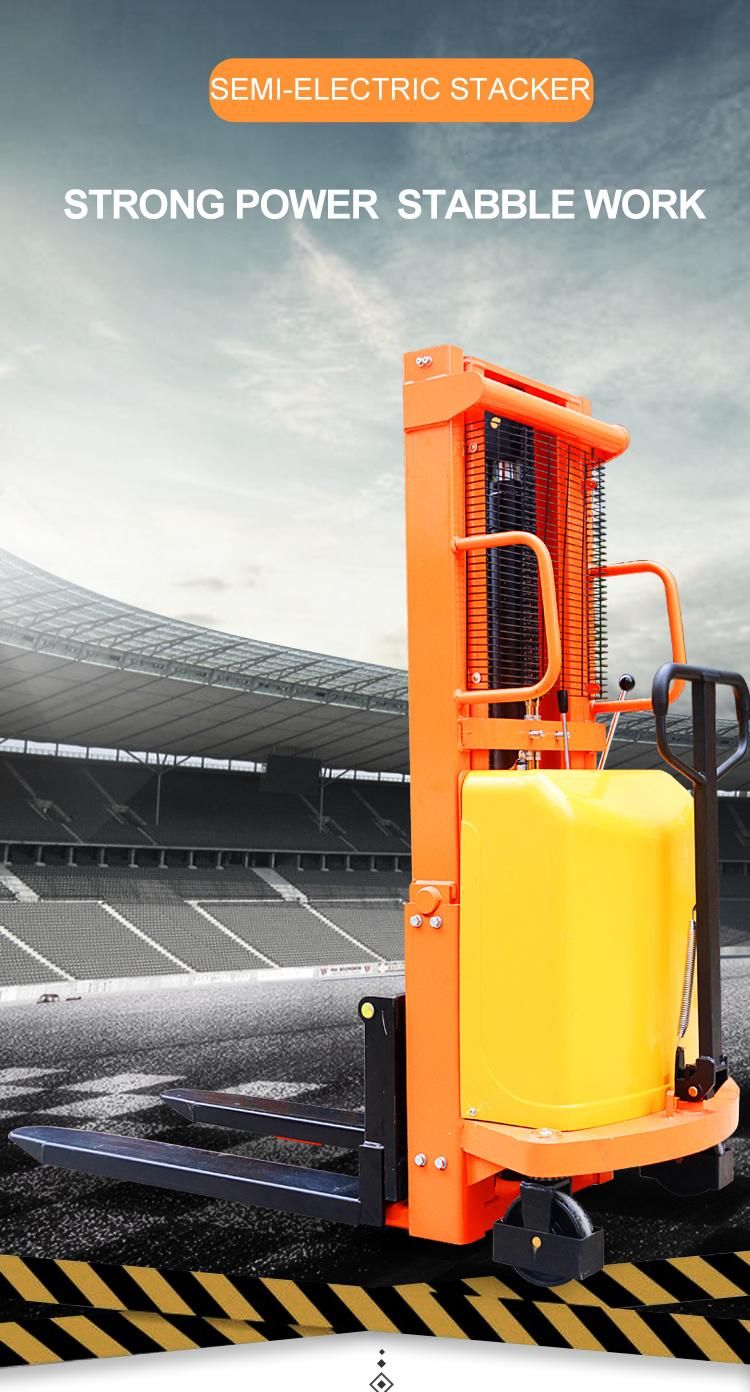

• Model NO.：HK10-30BD
• Fuel：Electric
• Load center：400mm
• Lift height：1600mm-3500mm
• Condition：New
• Model：HK10-30bd
• Loading Capacity：1000kg
• Max Fork Height：3000mm
• Fork Length：1000mm
• Fork Width：300-850mm
• Mini Turning Radius：1450mm
• Wheel Base：1185mm
• Front Wheel Base：316mm
• Lifting Motor：12V,1.6kw
• Batterty：12V,120ah
• Charger：12V,15A
• Machine Length：1660mm
• Machine Width：930mm
• Machine Height：2080mm
• Machine Weight：470kg
• Transport Package：by Sea
• Specification：Rated load: 1000-2000kg
• Trademark：Hao Ke
• Origin：China
• Production Capacity：1000000units,Year

Basic Info.

Model NO. HK10-30BD Fuel Electric Load center 400mm Lift height 1600mm-3500mm Condition New Model HK10-30bd Loading Capacity 1000kg Max Fork Height 3000mm Fork Length 1000mm Fork Width 300-850mm Mini Turning Radius 1450mm Wheel Base 1185mm Front Wheel Base 316mm Lifting Motor 12V/1.6kw Batterty 12V/120ah Charger 12V/15A Machine Length 1660mm Machine Width 930mm Machine Height 2080mm Machine Weight 470kg Transport Package by Sea Specification Rated load: 1000-2000kg Trademark Hao Ke Origin China Production Capacity 1000000units/Year

Product Description

Product Description:

 Technical Specification:

Model	Unit	HK10-16BD	HK15-16BD	HK20-16BD
Loading Capacity	kg	1000	1500	2000
Loading Center	mm	400	400	400
Max Fork Height	mm	1600	1600	1600
Fork Length	mm	1000	1000	1000

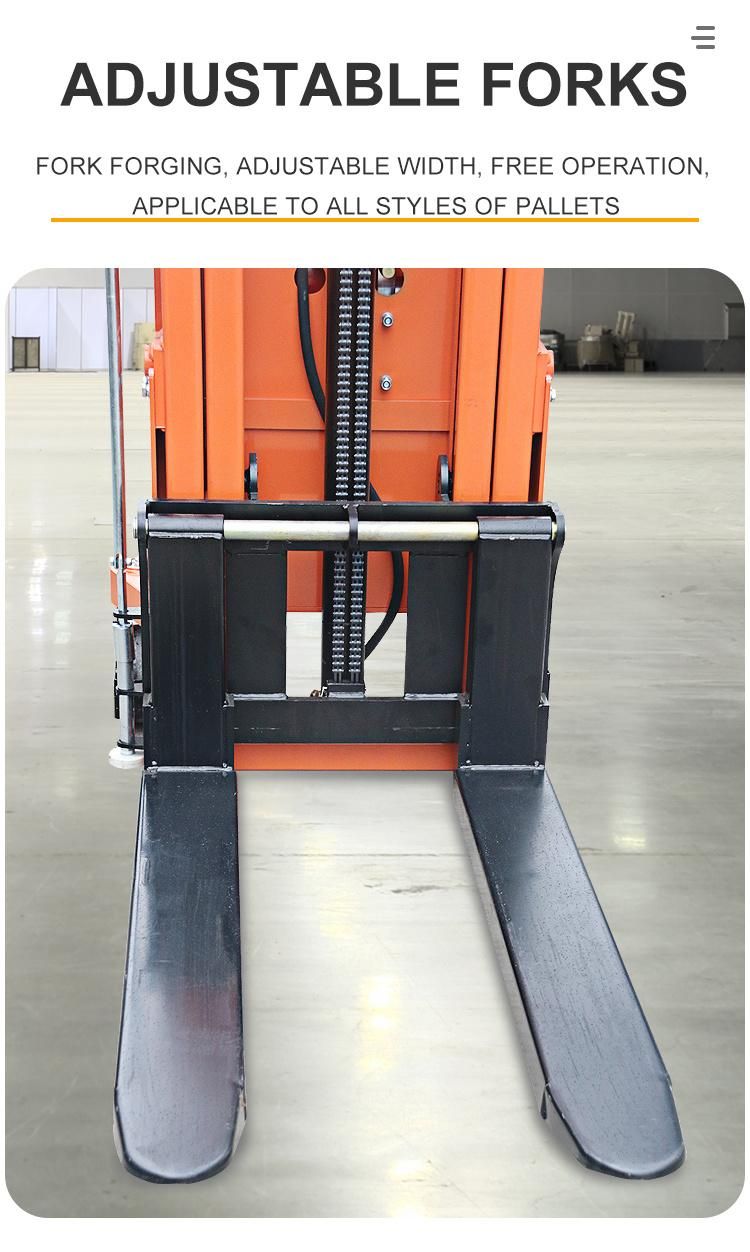

Fork Width	mm	300-850	320-850	320-850
Mini Turning Radius	mm	1350	1350	1350
Wheel Base	mm	1180	1180	1180
Front Wheel Base	mm	322	322	322
Lifting Motor	v/kw	12/1.6	12/1.6	12/1.6
Batterty	v/Ah	12/120	12/120	12/120
Charger	V/A	12/15	12/15	12/15
Machine Length	mm	1670	1670	1670
Machine Width	mm	865	865	865
Machine Height	mm	2060	2060	2060
Machine Weight	kg	350	365	390

Model	Unit	HK10-20BD	HK10-25BD	HK10-30BD	HK10-35BD	HK15-25BD	HK15-30BD	HK15-35BD	HK20-20BD
Loading Capacity	kg	1000	1000	1000	1000	1500	1500	1500	2000
Loading Center	mm	400	400	400	400	400	400	400	400
Max Fork Height	mm	2000	2500	3000	3500	2500	3000	3500	2000
Max Machine Height	mm	2560	3060	3560	4060	3060	3560	4060	2560
Fork Size	mm	1150	1000	1000	1000	1000	1000	1000	1000
Fork Width	mm	320-680	300-850	300-850	300-850	320-850	320-850	320-850	320-850
Mini Turning Radius	mm	1350	1350	1450	1450	1350	1450	1450	1350
Wheel Base	mm	1185	1185	1185	1185	1185	1185	1185	1185
Front Wheel Base	mm	316	316	316	316	316	316	316	316
Lifting Motor	v/kw	12/1.6	12/1.6	12/1.6	12/1.6	12/1.6	12/1.6	12/1.6	12/1.6
Batterty	v/Ah	12/120	12/120	12/120	12/120	12/120	12/120	12/120	12/120
Charger	V/A	12/15	12/15	12/15	12/15	12/15	12/15	12/15	12/15
Machine Length	mm	1810	1660	1660	1660	1660	1660	1660	1660
Machine Width	mm	865	865	930	930	865	930	930	865
Machine Height	mm	1580	1830	2080	2330	1830	2080	2330	1580
Machine Weight	kg	425	450	470	500	475	495	520	470

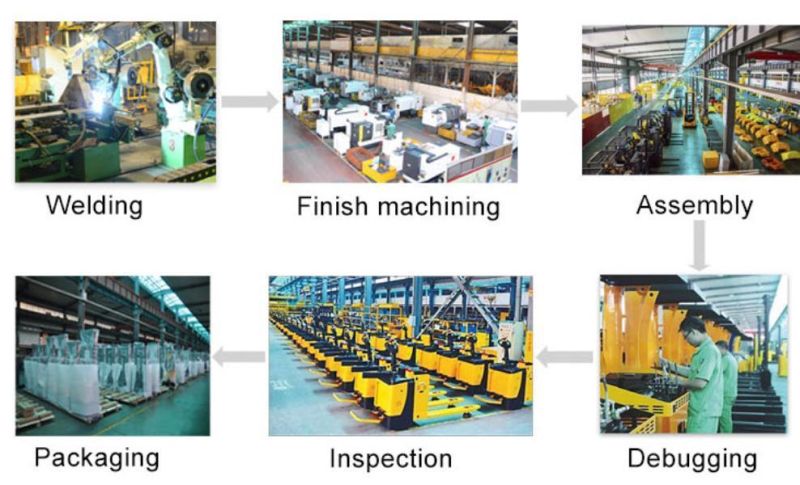

Quality Control Process:

Packaging & Shipping:

After Sales Service:

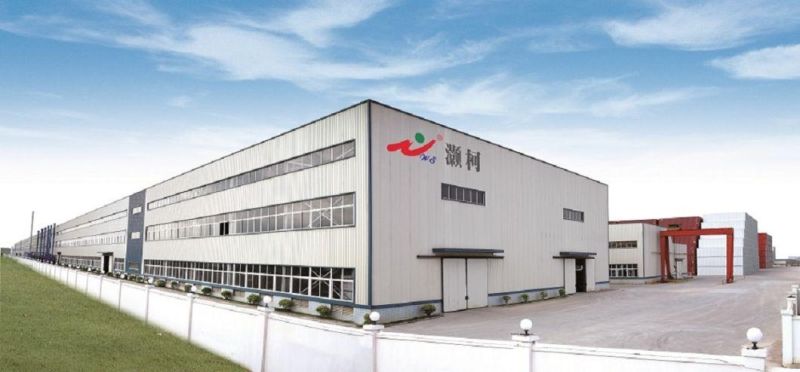

Company Profits:

Haoke is a research and development, production, sales and service in one of the professional manufacturer. Our products mainly include: aerial working platform, scissor type aerial working platform, electric lifting platform, fixed lifting platform,stacker series, lift table series, pallet truck series, forklift attachments series etc.

Our company's products have been certified by a lot of international quality certification, covering an area of 20000 square meters, the annual output has been grown to 30%. In order to better develop overseas market, we had established branch office in Russia, Japan, South Korea, Taiwan, Vietnam.

Haoke would continue to innovate and transform new technologies into products and services with international influence. With pioneering and enterprising spirit of "dare to be the first in the world", which will constantly improves its management methods to precipitate a profound enterprise.



Certificate:


FAQ:

1: How long does it take to execute my order?

Please tell us the quantity and model number of the products you are about to order, so that we will give you a detailed schedule.

2: How can I know the completion of my order?

Upon receipt of the deposit, we will immediately arrange for the shippment, after the order is completed, we will also send you the detection images of your order before delivery for you to confirm.

3: Can you arrange to deliver the goods for us?

Yes. When finish the orders, we will inform you and also we can arrange the shipping in the same time. There is LCL shipping and FCL shipping for different order term,the buyer also can choose Air-transport or Ocean shipping for your requirement. When your
orders reach your local nearest Sea port or River port, the logistics company will inform you.

4: Can you guarantee your products?

Yes, we guarantee your 100% satisfaction on all our products. Please feel free to feed back to us immediately if you are not satisfied with our quality or service. If the product does not meet the contract requirements, we will send you a free replacement or give you compensation in the next order.

5: Can I visit your company?

Of course, We always with great pleasure at your service. We have office in Shanghai, China. If you want to order our products and visit our company, please contact us to make an appointment.
