Good Quality 3 Ton Diesel Forklift Truck with Japanese Engine
XIAMEN LTMG CO., LTD.- Warranty：1 Year or 2000 Working Hours
- Cab Location：Adjustable
- Type：Diesel Forklift
- Power：Diesel Engine
- Load Capacity：1T - 5T
- Fuel：Diesel
Base Info
- Model NO.：FD30
- Load center：500mm
- Lift height：3000~5000mm
- Condition：New
- Fork Size：1070mm*125mm*45mm
- Weight：4380kg
- Engine：Isuzu,Yanmar
- Wheel Base：1700mm
- Color：Decided by Buyer
- Certificate：EPA ISO CE
- Turning Radius(Outside)：2445mm
- Rated Power：34.3kw,2500rpm
- Fuel Tank：70L
- Transport Package：Container
- Specification：2730mm*1225mm*2115mm
- Trademark：LTMG
- Origin：China
- HS Code：84272090
- Production Capacity：1000sets,Year
Description
Model Power shift T/M FD30 Manual shift T/M FD30C Load capacity kg 3000 Load center mm 500 Power unit Diesel Operator type Driver/seat Tire type Pneumatic Wheel Front/rear 2/2 Max. lifting height mm 3000 Free lift mm 150 Fork size L*W*T mm 1070*125*45 Tilt range Mast forward/backward deg 6/12 Overall length(without fork) mm 2705 Total width mm 1225 Mast height (fork lowering) mm 2075 Overall height fork raised With backrest mm 4250 Height to head guard mm 2140 Turning radius(outside) mm 2445 Front face of fork to front axle mm 480 Min. right angle stacking aisle without load length&clearance mm 2925 Speed Max Travelling full/no load km/h 18/19.5 Lifting full/no load mm/s 450/500 Lowering full/no load mm/s 450/450 Max.drawbar pull Power shift T/M full/no load kg 1500/1000 Manual shift T/M full/no load kg 1550/1000 Gradeability at 1.6km/h Power shift T/M full/no load % 18/20 Manual shift T/M full/no load % 18/20 Truck weight kg 4380 Weight distribution Full load front/rear kg 6490/890 No load front/rear kg 1670/2700 Tires Number front/rear 2/2 Model front axle 28x9-15-12PR rear axle 6.50-10-10PR Wheel base mm 1700 Tread Front/rear mm 1000/970 Ground clearance At lowest point(mast) mm 120 Frame mm 135 Brake Service brake Hydraulic-foot pedal Parking brake Mechanical-hand lever Battery Voltage/capacity V/AH 12/80 Engine Model ISUZU C240 Rated power kw/rpm 34.3/2500 Rated torque N.m/rpm 138/1800 Number of cylinders 4 Placement L 2.369 Fuel tank capacity L 70 Transmission Speed forward/backward Power shift T/M Manual shift T/M 1-1 power shift T/M
2-2 manual shift T/M

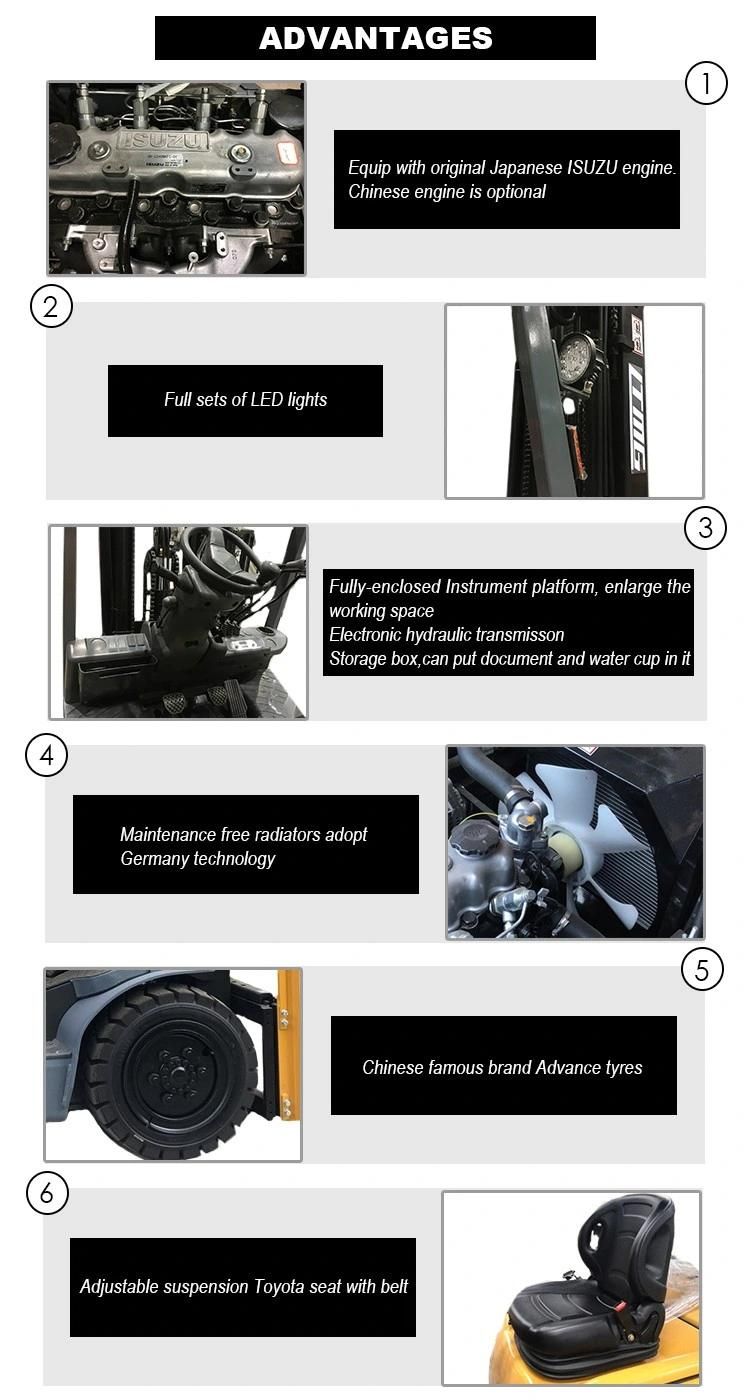

Product Features
1. Quality:
With CE and ISO certificate, 10 km away from the Xiamen Port, China, 14 years' manufacture's experience specially in loader. LTMG have the customers covers more than 30 districts and zones in the world.
2. Competitive price and service:
We manufacturer's products are directly supply the after-sale service to our customers agents, and exported to buyers without the trading company in China.
3. Optional equipments for LTMG forklift:
(1) Original Isuzu / Cummins / Mitsubishi / Nissan engine and other engine which is according with the Euro III or IV emission standard and USA EPA requirements.
(2) Various attachments: rotating fork, grapple, bale clamp, fork extension, side shifter, paper roll clamp and so on.
After sales service
LTMG always treat after-sale service more important than sale.
Nowadays more than 30 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
