• Model NO.：CPCD80
• Fuel：Diesel
• Load center：>500mm
• Lift height：3000~5000mm
• Condition：New
• Rated Loading Capacity：8 Ton
• Max. Lifting Height：3000 mm
• Optional Engine：Yanmar, Isuz
• Fork Length：1220 mm
• Operating Weight：10960 Kg
• Fork Width：170 mm
• Free Lift Height：200 mm
• Rated Power：83 Kw
• Overall Dimensions：5160*2165*2560 mm
• Transport Package：Nude, Suitable for Shiping
• Specification：ISO, CE
• Trademark：HELI
• Origin：Anhui
• HS Code：84272090
• Production Capacity：1000sets,Month

Basic Info.

Model NO. CPCD80 Fuel Diesel Load center >500mm Lift height 3000~5000mm Condition New Rated Loading Capacity 8 Ton Max. Lifting Height 3000 mm Optional Engine Yanmar, Isuz Fork Length 1220 mm Operating Weight 10960 Kg Fork Width 170 mm Free Lift Height 200 mm Rated Power 83 Kw Overall Dimensions 5160*2165*2560 mm Transport Package Nude, Suitable for Shiping Specification ISO, CE Trademark HELI Origin Anhui HS Code 84272090 Production Capacity 1000sets/Month

Product Description

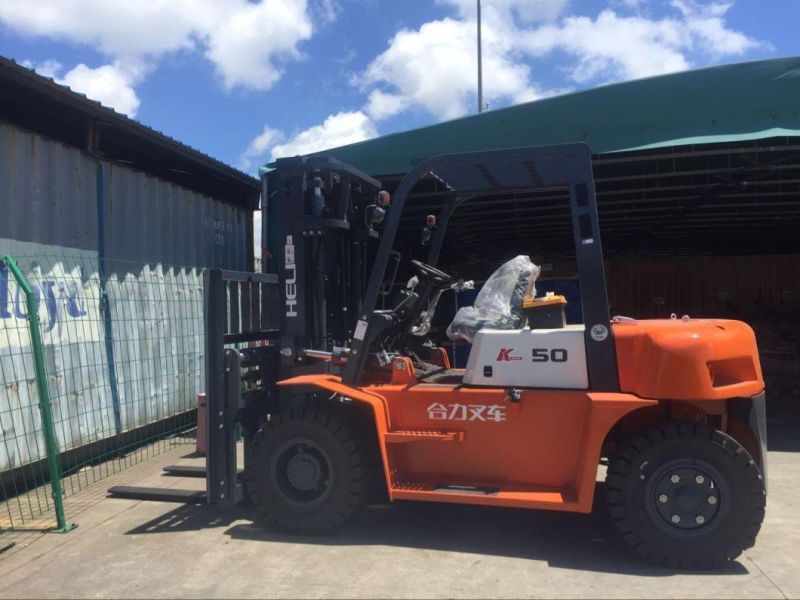

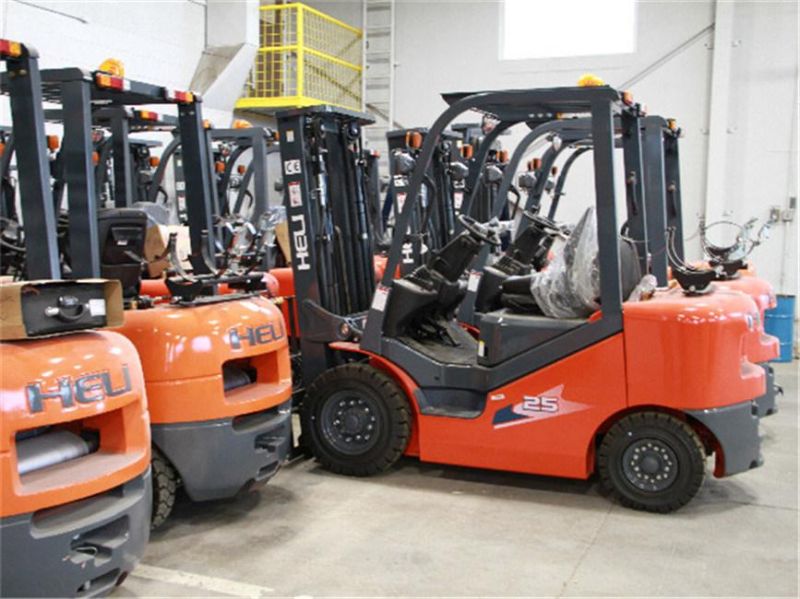

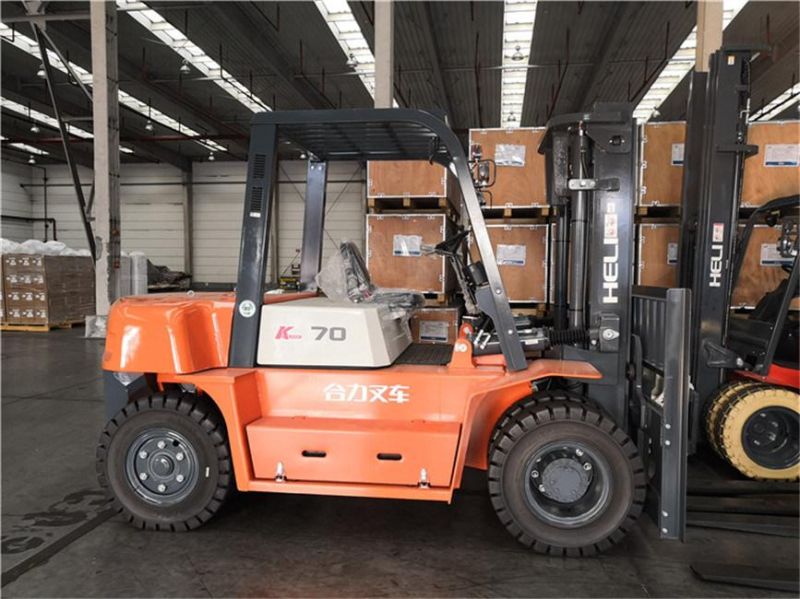

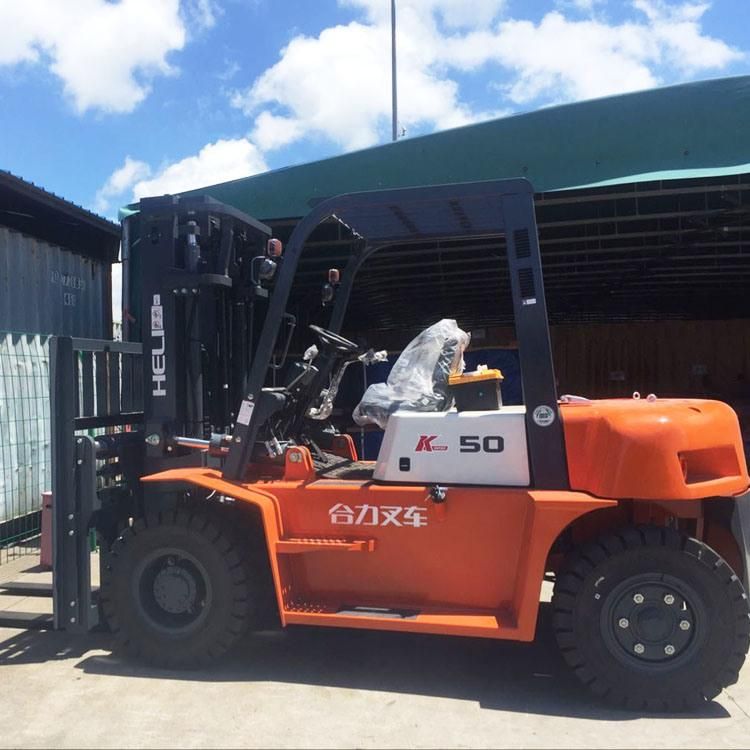

China Top Brand Heli Cpcd80 8 Ton Diesel Container Fork Lift Truck Forklift with Side Shifter

Features:

Improved Performance

Fashion, sporty, modern design with streamline appearance.

HELI specialized transmission box and drive axle with more than 20 years market verification are Chinese top forklift truck transmission system.

Load sensing and dual pump confluence hydraulic system technology not only improves working efficiency but also effectively reduces truck energy consumption.

HELI forklift truck specialized electric control technology which is co-developed with engine manufacturer makes engine performance better.

9 inches air cleaner with safety filter and electronic pressure alarm not only ensures engine air intake amount but also improve truck safety, reliability and durability.

The reliability and durability of key parts such as transmission box and engine are improved by optimized cooling system and improved cooling performance.

Standard electric-hydraulic reversing system realizes light and easy operation; update whole new gear shifting system avoids starting with second gear, improving transmission's reliability.

Standard powered braking system offers quick-respond brake and effective brake; high capacity bag type accumulator with good performance improves truck reliability.

Steering system offer easy operation, flexible and reliable steering.

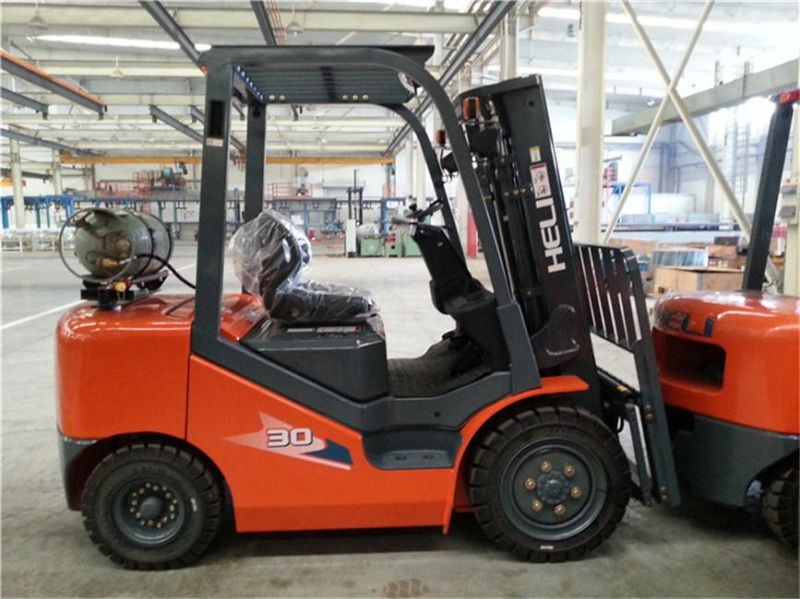

For LPG truck, with dual-cylinder type, the cruising range has doubled, and realizes the automatic switch between cylinders; With spring booster type cylinder bracket, the cylinder is easy to be changed.



Working place: G series 5-7t diesel/gasoline /LPG counterbalanced truck is widely used for packed goods loading , unloading and handling in factory, warehouse, station, dock, port and so on. The truck can also be used for bulk goods and unpacked good loading, unloading and handing after assembled with other attachments.

Model		CPCD80	CPCD100
power type		diesel	diesel
rated capacity	kg	8000	10000
load center	mm	600	600
mast height (with backrest)	mm	4420	4330
Max. lifting height	mm	3000	3000
free lifting height	mm	200	200
overall height (overhead guard)	mm	2560	2560
overall length(with fork)	mm	5160	5480
over width	mm	2165	2165
min ground clearance(at the mast )	mm	250	245
min turning radius(exterior)	mm	3700	3900
min .right angle stacking aisle width	mm	3310	3540
fork size (LXWXH)	mm	1220X170X70	1220X175X80
max.travelling speed (loaded/unloaded)	km/h	26/30	26/30
max.traction force(loaded/unloaded)	KN	63	57
max.gradeability(loaded/unloaded)	%	25/21	21/20
tyre type		Pneumatic tyre	Pneumatic tyre
engine model		xichai CA6110	Pekins 1104D-44TA
rated power	kw/rpm	83/2000	83/2200
rated torque	Nm/rpm	150/1400-1500	418/1400
total weight (oil included)	kg	10960	12510

Main technological parameters
