• Model NO.：CPCD30
• Fuel：Diesel
• Load center：500mm
• Lift height：3000~5000mm
• Condition：New
• Fork Length：1220mm
• Lift Height.：4500mm
• Drive Speeds：18,19.5km,H
• Max.Grade Ability：15%
• Fuel Tank Capacity：52L
• Place of Origin：Anhui, China
• Fork Width：125mm
• Certification：ISO,CE,EPA
• Max.Lifting Height：3000mm
• Free Lift Height：145mm
• Lifting Speeds：470,520mm,S
• Total Weight：4350kg
• Marketing Type：New Product 2020
• Condition.：New
• Transport Package：Nude
• Specification：2748*1225*2170 mm
• Trademark：HELI
• Origin：China
• HS Code：8427900000
• Production Capacity：10000000piece,Month

Model

CPCD30

Power type

Diesel

Rated capacity

kg

3000

Load center

mm

500

Lift height

mm

4500

Free lift height

mm

145

Fork size

mm

1220×125×45

Mast tilt angle

deg

6/12

Front overhang

mm

482

Overall

Length to face of forklift

mm

2695

Overall width

mm

1225

Mast lowerd height

mm

2070

Mast extended height

mm

4250

Overhead guard height

mm

2090

Turning radius

mm

2420

Min.right angle aisle width

mm

2885

Speeds

Drive speeds

km/h

18/19.5

Lifting speeds

mm/s

470/520

Lowering speeds

mm/s

≤600

Max.grade ability

%

15

Total weight

kg

4350

Tires

Frot

28*9-12PR

Rear

6.5-10-10PR

Wheeslbase

mm

1700

Tread

Front

mm

1000

Rear

mm

970

Hold under mast

mm

110

Engine

Model

Xinchang 490BPG

Rated output

kw/rpm

37/2650

Rated torque

N.m/rpm

148/2000

No.of cylinder

4

Displacement

L

2.54

Fuel tank capacity

L

52

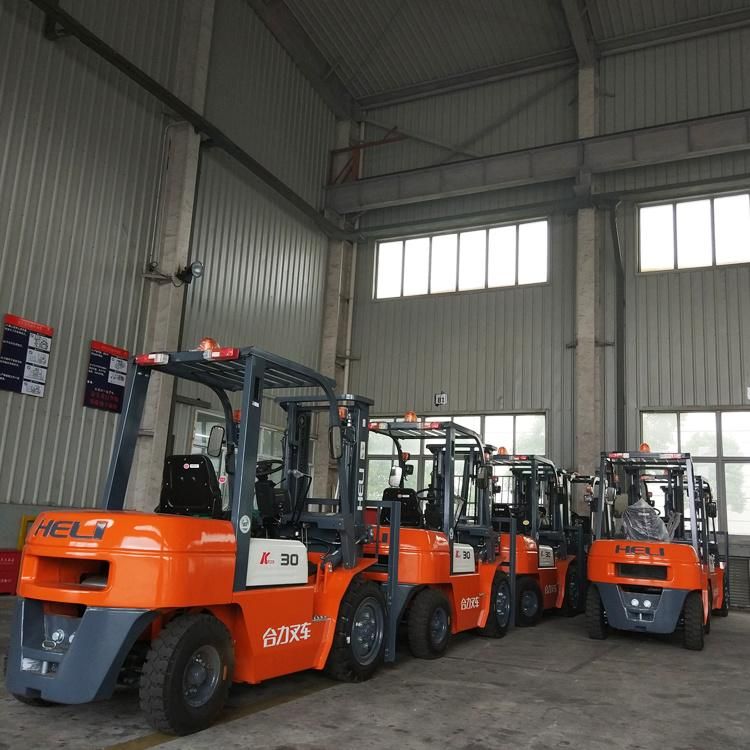

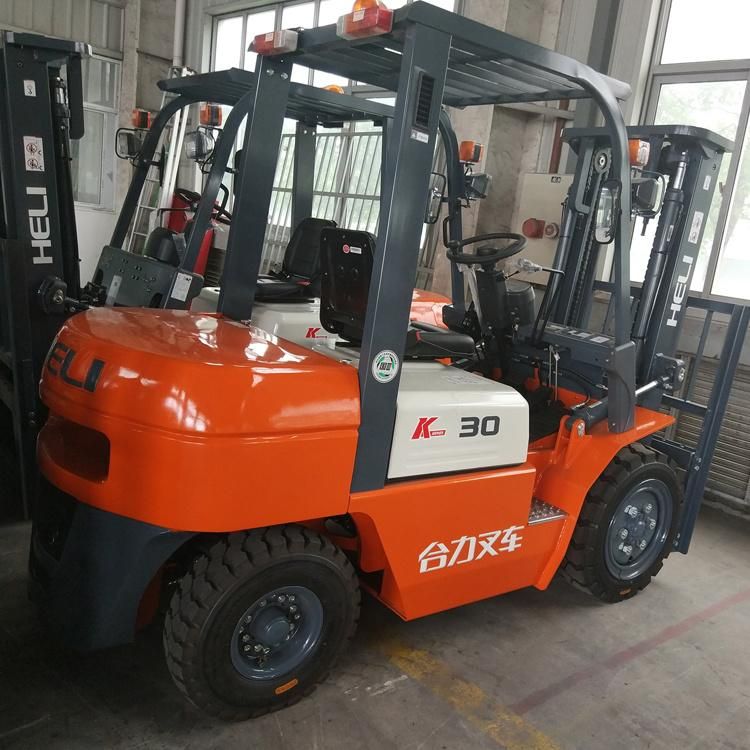

product image
