• Model NO.：HK2030BD
• Fuel：Electric
• Load center：600mm
• Lift height：1600mm-3500mm
• Condition：New
• Maximum Load Capacity：2000kg
• Fork Lifting Height：3000mm
• Mast Height When Working：1980mm
• Mast Height with Fork Lowered：3450mm
• Length：1825mm
• Width：800mm
• Wheelbase：1210mm
• Fork Length：1150mm
• Fork Outside Width：560,680mm
• Min Ground Clearance：30mm
• Fork Lowered Height：85mm
• Drive Motor Type：0.75kw
• Lifting Motor Type：2.2kw
• Voltage：24V
• Weight：15*4kg
• Transport Package：by Sea
• Specification：Rated load: 1500kg,2000kg
• Trademark：Hao Ke
• Origin：China
• Production Capacity：1000000units,Year

Basic Info.

Model NO. HK2030BD Fuel Electric Load center 600mm Lift height 1600mm-3500mm Condition New Maximum Load Capacity 2000kg Fork Lifting Height 3000mm Mast Height When Working 1980mm Mast Height with Fork Lowered 3450mm Length 1825mm Width 800mm Wheelbase 1210mm Fork Length 1150mm Fork Outside Width 560/680mm Min Ground Clearance 30mm Fork Lowered Height 85mm Drive Motor Type 0.75kw Lifting Motor Type 2.2kw Voltage 24V Weight 15*4kg Transport Package by Sea Specification Rated load: 1500kg/2000kg Trademark Hao Ke Origin China Production Capacity 1000000units/Year

Product Description

Product Description:

 Technical Specification:

Model	Unit	HKB15/2016	HKB15/2020	HKB15/2025	HKB15/2030	HKB15/2035
Maximum load capacity	kg	1500/2000	1500/2000	1500/2000	1500/2000	1500/2000
Fork lifting height	mm	1600	2000	2500	3000	3500
Mast height when working	mm	2010/2080	1485/1580	1735/1830	1985/1980	2235/2330
Mast height with fork lowered	mm	2035/2080	2435/2550	2935/3050	3435/3450	3935/4050
Loading center	mm	600	600	600	600	600
Travel speed (without/with load)	km/h	4.5/3.5	4.5/3.5	4.5/3.5	4.5/3.5	4.5/3.5
Lifting speed (without/with load)	mm/s	140/135	140/135	140/135	140/135	140/135
Lower speed (without/with load)	mm/s	150/155	150/155	150/155	150/155	150/155
Gradeability (without/with load)	%	7/5	7/5	7/5	7/5	7/5
Weight (with battery)	kg	510/520	550/560	570/580	590/610	610/630
Length	mm	1825	1825	1825	1825	1825
Width	mm	800	800	800	800	800
Wheel base	mm	1210	1210	1210	1210	1210
Fork length	mm	1150	1150	1150	1150	1150
Fork outside width	mm	560/680	560/680	560/680	560/680	560/680
Fork thickness	mm	60	60	60	60	60
Min ground clearance	mm	30	30	30	30	30
Fork lowered height	mm	85	85	85	85	85
Minimum turning radius	mm	1420/1530	1420/1530	1420/1530	1420/1530	1420/1530
Minimum intersecting aisie	mm	2110/2440	2110/2440	2110/2440	2110/2440	2110/2440
Front wheel	mm	80*70	80*70	80*70	80*70	80*70
Drive wheel	mm	210*75	210*75	210*75	210*75	210*75
Caster wheel	mm	115*55	115*55	115*55	115*55	115*55
Drive motor type	kw	0.75	0.75	0.75	0.75	0.75
Lifting motor type	kw	2.2	2.2	2.2	2.2	2.2
Voltage	V	24	24	24	24	24
Capacity	AH	80/85	80/85	80/85	80/85	80/85
Weight	kg	26*2/15*4	26*2/15*4	26*2/15*4	26*2/15*4	26*2/15*4

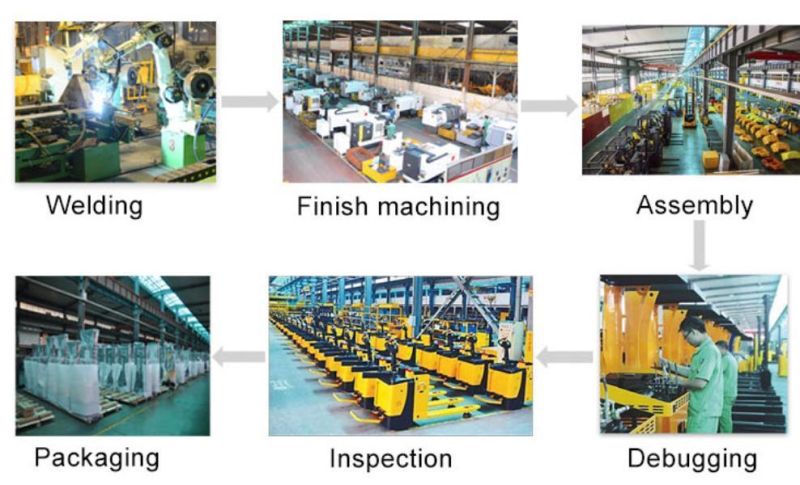

Quality Control Process:

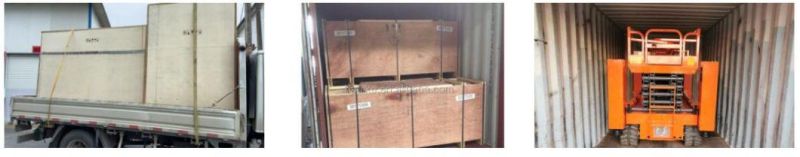

Packaging & Shipping:

After Sales Service:

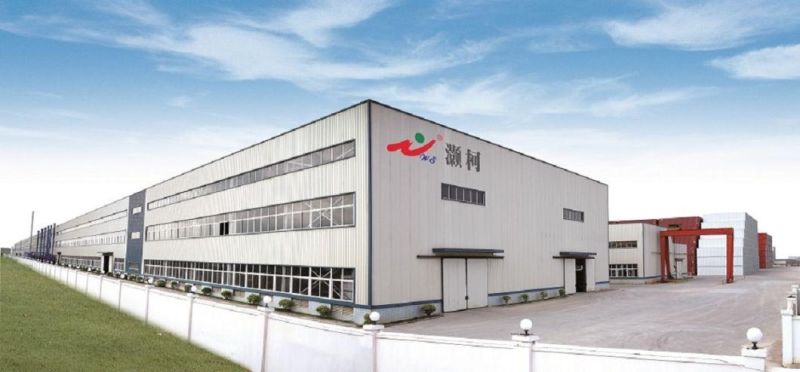

Company Profits:

Haoke is a research and development, production, sales and service in one of the professional manufacturer. Our products mainly include: aerial working platform, scissor type aerial working platform, electric lifting platform, fixed lifting platform,stacker series, lift table series, pallet truck series, forklift attachments series etc.

Our company's products have been certified by a lot of international quality certification, covering an area of 20000 square meters, the annual output has been grown to 30%. In order to better develop overseas market, we had established branch office in Russia, Japan, South Korea, Taiwan, Vietnam.

Haoke would continue to innovate and transform new technologies into products and services with international influence. With pioneering and enterprising spirit of "dare to be the first in the world", which will constantly improves its management methods to precipitate a profound enterprise.



Certificate:


FAQ:

1: How long does it take to execute my order?

Please tell us the quantity and model number of the products you are about to order, so that we will give you a detailed schedule.

2: How can I know the completion of my order?

Upon receipt of the deposit, we will immediately arrange for the shippment, after the order is completed, we will also send you the detection images of your order before delivery for you to confirm.

3: Can you arrange to deliver the goods for us?

Yes. When finish the orders, we will inform you and also we can arrange the shipping in the same time. There is LCL shipping and FCL shipping for different order term,the buyer also can choose Air-transport or Ocean shipping for your requirement. When your
orders reach your local nearest Sea port or River port, the logistics company will inform you.

4: Can you guarantee your products?

Yes, we guarantee your 100% satisfaction on all our products. Please feel free to feed back to us immediately if you are not satisfied with our quality or service. If the product does not meet the contract requirements, we will send you a free replacement or give you compensation in the next order.

5: Can I visit your company?

Of course, We always with great pleasure at your service. We have office in Shanghai, China. If you want to order our products and visit our company, please contact us to make an appointment.
