• Model NO.：df
• Load Capacity：18T - 42T
• Fuel：Diesel
• Load center：>500mm
• Lift height：3000~5000mm
• Condition：New
• Overall Dimensions：2873*4425*6035mm
• Warranty：1 Year
• Spare Parts：Along with Equipment

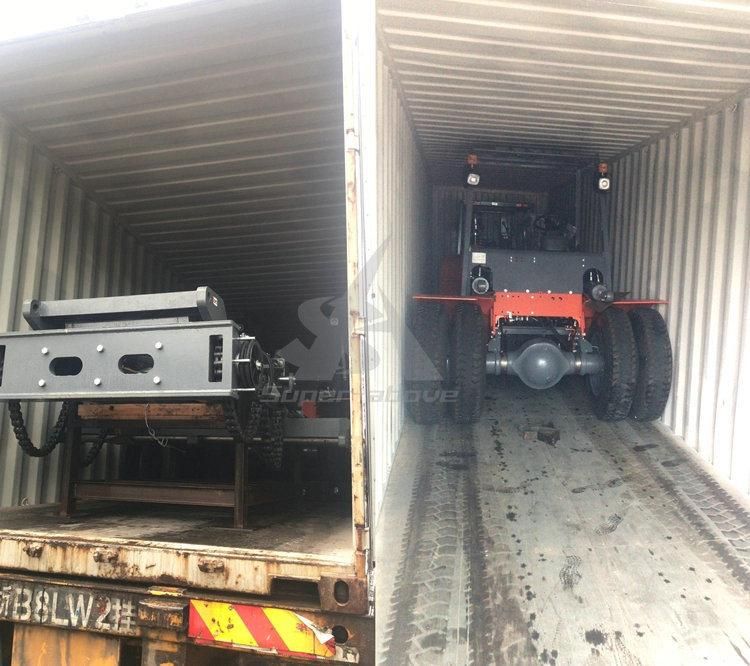

• Transport Package：Naked in Container
• Specification：CE
• Trademark：Super-above
• Origin：Jiangsu, China
• HS Code：8705109100
• Production Capacity：1000PCS,Year

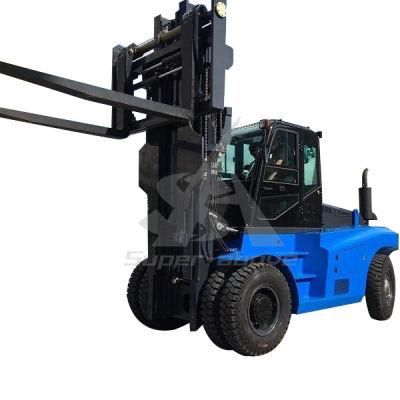

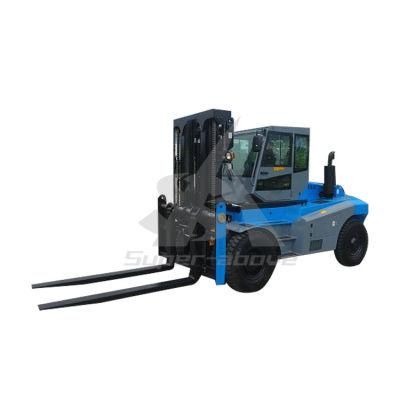

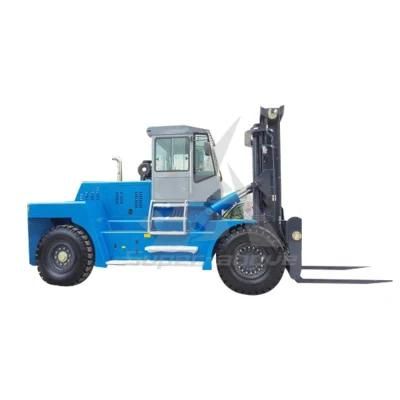

                      SPECIFICATIONS FOR  20 TON FORKLIFT TRUCKConfigurationdiesel heavy duty forklift truck 20 ton UnitSA200PerformanceRated load kg20000 Load center mm900 Free lift mm180 Mast tilt angle (front/rear) º6/12 Overall dimensionsLengthmm8100  Widthmm3020  Heightmm3600  Mast lifting heightmm3500 Fork size (L*W*H) mm2000X260X100 Min. turning radius mm5800 Max. travel speed (with load) Km/h25 Lifting speed (with load) mm/s180 Gradeability (with load) %20 Weight Kg26000TyreFront  4X14.00-24/24PR Rear  2X14.00-24/24PR Wheel treadFrontmm2200  Rearmm2390 Wheelbase mm4000 Min. ground clearance mm250EngineModel  SC8D180 Rated power/rotate speed KW/r.pm132/2000 Max. torque/rotate speed N.m/r.pm810/1600
