• Model NO.：FB15
• Load center：500mm
• Lift height：3000~5000mm
• Condition：New
• Fork Size：920mm*100mm*35mm
• Weight：2690kg
• Wheelbase：1250mm
• Max.Lifting Height：3000mm
• Overall Length(Without Fork)：1955mm
• Turning Raduis(Outside)：1780mm
• Front Face of Fork to Front Axle：375mm
• Min. Right Angle Stacking Aisle：1770mm
• Transport Package：Container
• Specification：1955mm*1070mm*2100mm
• Trademark：LTMG
• Origin：China
• HS Code：8427109000
• Production Capacity：800sets,Year

Manufacturer     LTMGModel    FB15Load capacity  kg1500Load center  mm500Power unit  BatteryOperator type  Driver/seat Tire type  PneumaticWheel(x=driving) Front/rear   2X/2Max. lifting height mm3000Free lift  mm155Fork sizeL*W*Tmm920*100*35Tilt range Mast forward/backward deg6/12Overall length(without fork) mm1955Total width  mm1070Mast height (fork lowering)   mm1995Overall height fork raisedWith backrestmm4030Height to head guard mm2100Turning radius(outside)     mm1780Load distance mm375Min. right angle stacking aisle not add load length&clearancemm2155Speed   Max Travellingfull load km/h14Max TravellingNoload km/h16Liftingfull load mm/s350Liftingnoload  mm/s530Gradeabilityfull load  %15Truck weight(with standard battery) kg2690Weight  distribution  Fullloadfront/rearkg3635/555Noloadfront/rear  kg1110/1580Tires        Number                                                   front/rear   2/2Model                                                    frontaxle 6.00-9-10-10PRrear axle        16*6-8-10PRWheelbase   mm1250Tread   Front/rear        mm910/900Ground clearanceAt lowest point(mast)  mm105Frame      mm95BrakeServicebrake          Hydraulic-foot pedal Parking brake Mechanical-hand lever BatteryVoltage/capacity     V-AH/5hr48V-400Weight with box (standard) kg 735Electric motor AC Driving motorkw8DC Hydraulic driving motor kw8.2AC Hydraulic driving motor (as option) kw8Control type Driving AC  , lifting DC
Driving AC  , lifting AC(as option )  Operating pressure  kg/cm²145

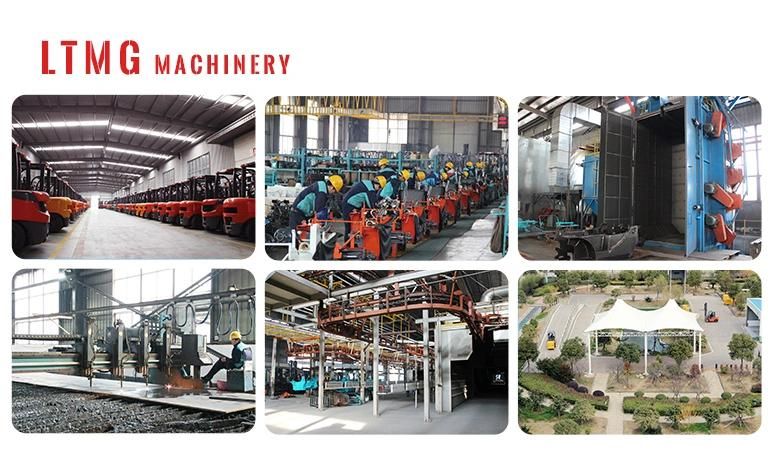

Factory Overview


Product Features
1.Safe:
LED work lights and warning lights make it safer and more efficient evenin poor lighting conditions.
New designed overhead guard protective device prevent the sudden accidents.
Thicker reinforcing plate ensure the safety and efficiency.

2.Easy to operate:
Linde-Technology single chain with reinforced load backrest--makes an excellent and wider field of visionfor operator.

3.Beautiful and comfortable:
New suspension adjustable seat makes the long time operating more comfortable.
Step area is 1.5 times larger with lower step height than fellow forklifts.

4.Durable:
Sunken tilt cylinder under the floor build broader flat floor and less abrasion.
Change plastic slider to alloy copper slider, reduce the abrasion and narrow the gap between masts.
Thicker steering axle bridge deck.

5.Environmental:
Middle muffler, more environmental.

6.High technology:
Maintenance free radiators adopt Germany technology.
After sales service

Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.

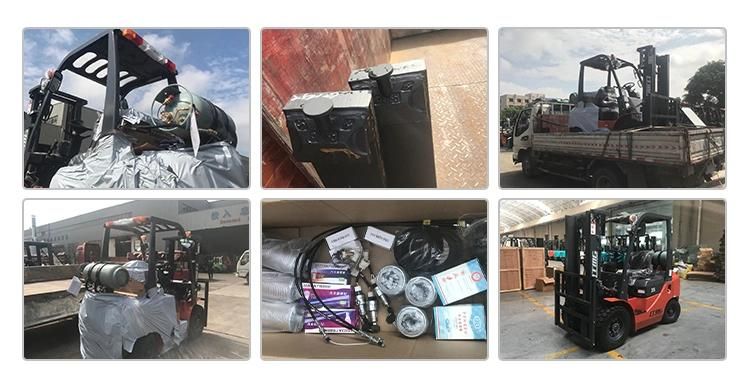

Packing&Shipping


FAQ

1.What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate.  Some of our products meets the EPA requirements.
LTMG neverrecruit Underage labor.

2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.

3.How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.

4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.

5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, blance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.

6.Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
