• Model NO.：FD15
• Lift height：3000~5000mm
• Condition：New
• Fork Size：920mm*100mm*35mm
• Engine：Isuzu
• Max. Lifting Height：3000mm
• Weight：2550kg
• Color：Could Be Design by Buyer
• Rated Power：34.3kw,2500rpm
• Overall Length(Without Fork) ：2245mm
• Warranty：1 Year,2000 Working Hours
• Tire Type：Pnenumatic
• Overall Length(Without Fork)：2245mm
• Transport Package：Container
• Specification：2245mm*1070mm*2060mm
• Trademark：LTMG
• Origin：China
• HS Code：84272090
• Production Capacity：1000sets,Year

Manufacturer   LTMGModel   Power shift T/MFD15Load capacity  kg1500Load center  mm500Power unit    dieselOperator type   Driver/seatTire type   PneumaticWheel Front/rear 2/2Max. lifting height  mm3000Free lift  mm155Fork size L×W×Tmm920*100*35Tilt range Mast forward/backwarddeg6/12Overall length(without fork)   mm2245Total width   mm1070Mast height ( fork lowering)  mm1995Overall height fork raised ( with backrest)  mm4030Height to head guard  mm2060Turning radius(outside)  mm2040Front face of fork to front axle  mm395Min. right angle stacking aisle  mm2435SpeedMax Travelling full loadkm/h14no loadkm/h14.5Liftingfull loadmm/s440no loadmm/s500Loweringfull loadmm/s370no loadmm/s530Max.drawbar pull full/no loadKg1130/690Gradeability at 1.6km/h full/no load%21/18Truck weight  kg2550Weight
distributionfull loadfrontkg3580rearkg470no loadfrontkg1110rearkg1440front wheel   6.50-10-10PRrear  wheel   5.00-8-10PRWheelbase  mm1425Treadfront mm890rear mm900Ground
clearanceAt lowest point(mast) mm115Frame mm105BrakeService  brake  Hydraulic-foot pedalParking brake  Mechanical-hand leverBatteryVoltage/capacity  12/80EngineModel  ISUZU C240Rated power kw/rpm34.3/2500Rated torque Nm/rpm138/1800Number of cylinders  4Placement L2.369Fuel tank capacity  L50TransmissionSpeed forward/backward  1-1 power shift T/MOperating pressureHydraulic system pressure Kg/cm²180
Product Features

1.Safe:
LED work lights and warning lights make it safer and more efficient evenin poor lighting conditions.
New designed overhead guard protective device prevent the sudden accidents.
Thicker reinforcing plate ensure the safety and efficiency.

2.Easy to operate:
Linde-Technology single chain with reinforced load backrest--makes an excellent and wider field of visionfor operator.

3.Beautiful and comfortable:
New suspension adjustable seat makes the long time operating more comfortable.
Step area is 1.5 times larger with lower step height than fellow forklifts.

4.Durable:
Sunken tilt cylinder under the floor build broader flat floor and less abrasion.
Change plastic slider to alloy copper slider, reduce the abrasion and narrow the gap between masts.
Thicker steering axle bridge deck.

5.Environmental:
Middle muffler, more environmental.

6.High technology:
Maintenance free radiators adopt Germany technology.







Packing& Shipping

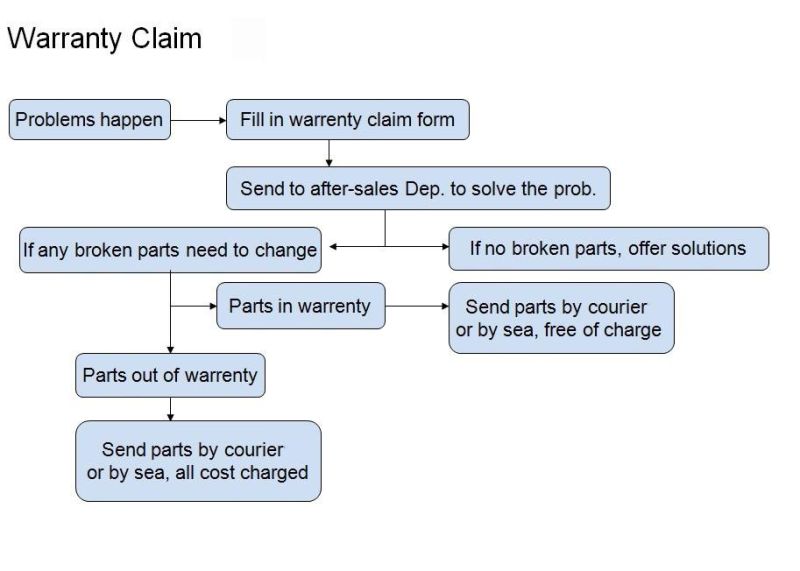

After sales service

LTMG always treat after-sale service more important than sale.
Nowadays more than 100 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
