Small 2ton Electric Pallet Truck / Electric Transpalet

Hangzhou Noelift Equipment Co., Ltd.

Cab Location：Not Adjustable
Type：Powered Pallet Truck
Power：DC Motor
Load Capacity：1T - 5T
Fuel：Electric
Load center：500mm

Base Info

Model NO.：ET18MH
Lift height：<=200mm
Condition：New
Product Name：Semi Electric Pallet Truck
EPS：Optional
Lifting Height：200mm
Rated Load Capacity：1500kg
Lift：Manual
Drive：by Motor
Battery：24V,80ah
Charger：with
Color：Yellow
Emergency Stop Button：with
Transport Package：Standard Export Packing
Specification：1850mm*850mm*1350mm
Trademark：Noelift
Origin：China
HS Code：8427102000
Production Capacity：300PCS,Month

Description

Basic Info.

Model NO. ET18MH Lift height <=200mm Condition New Product Name Semi Electric Pallet Truck EPS Optional Lifting Height 200mm Rated Load Capacity 1500kg Lift Manual Drive by Motor Battery 24V/80ah Charger with Color Yellow Emergency Stop Button with Transport Package Standard Export Packing Specification 1850mm*850mm*1350mm Trademark Noelift Origin China HS Code 8427102000 Production Capacity 300PCS/Month

Product Description

Product Description

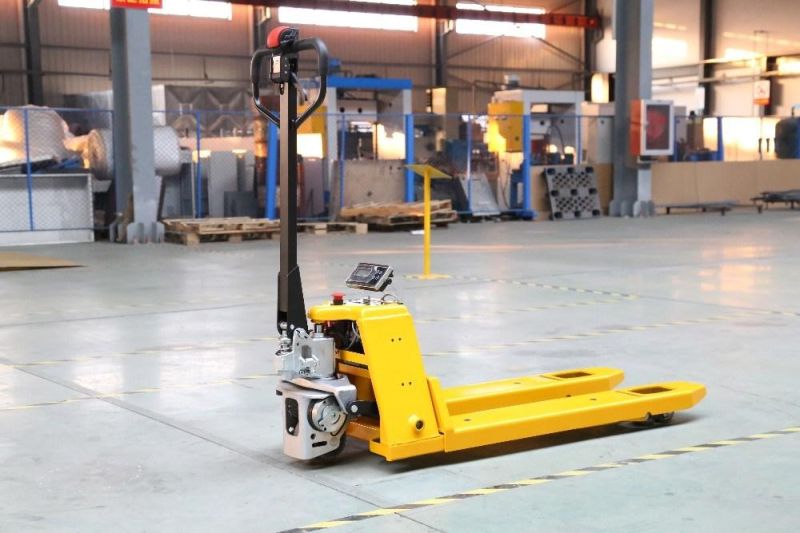

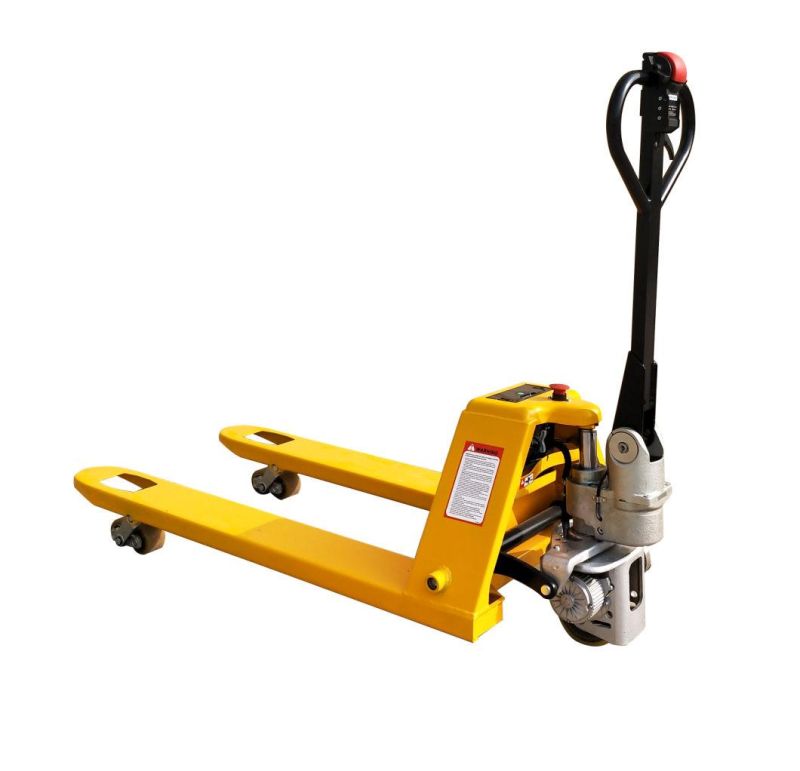

Compact design mini electric pallet truck, rated loading capacity 1.5ton --2.0ton,
walking operation type, armrest and footpedal for option.

Option: precise scale

	Model		ET15MH
1	Rated load capacity	kg	1500
2	Load center	mm	600
3	Operation type		Walkie
4	Max. lifting height	mm	200
5	Forks overal width	mm	540/680
6	Forks lowered height	mm	85
7	Single fork width	mm	163
8	Fork length	mm	1150/1220
9	Min. ground clearance	mm	30
10	Max. driving speed, laden	km/h	4
11	Max. driving speed, unladen	km/h	4.5
12	Max. gradeability, laden		0.03
13	Max. gradeability, unladen		0.2
14	Min. turning radius	mm	1320/1390
15	Overal length	mm	1540/1610
16	Overal width	mm	540/680
17	Overal height	mm	1250
18	Axle distance		1170/1240
19	Li battery capacity	AH/24V	20
20	Service weight	kg	125
