• Model NO.：TFA15
• Lift height：3000~5000mm
• Condition：New
• Product Name：Electric Stacker
• Tire：PU
• Fork Length：850mm,920mm,1070mm,1150mm, etc
• Lifting Height：Duplex Mast
• Battery：24V,210ah
• Charger：with
• Transport Package：International Packing Way with Thick Plastic Film.
• Specification：1600*850*1900mm
• Trademark：noelift
• Origin：Zhejiang
• HS Code：8427102000
• Production Capacity：300 Pieces,Year

Basic Info.

Model NO. TFA15 Lift height 3000~5000mm Condition New Product Name Electric Stacker Tire PU Fork Length 850mm/920mm/1070mm/1150mm, etc Lifting Height Duplex Mast Battery 24V/210ah Charger with Transport Package International Packing Way with Thick Plastic Film. Specification 1600*850*1900mm Trademark noelift Origin Zhejiang HS Code 8427102000 Production Capacity 300 Pieces/Year

Product Description

PRODUCT DESCREPTION

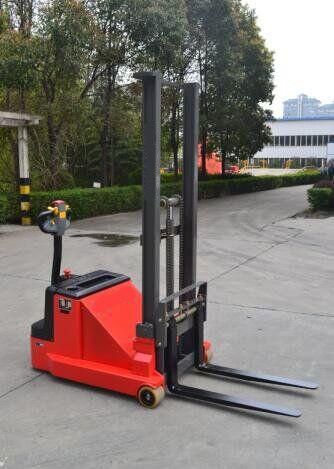

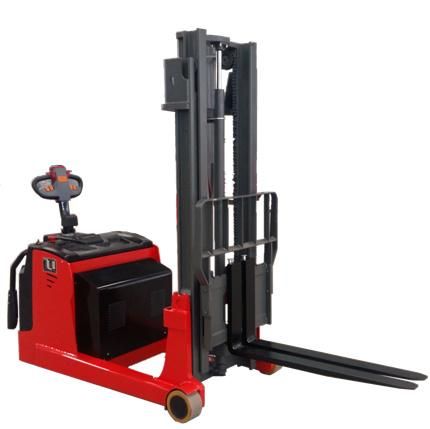

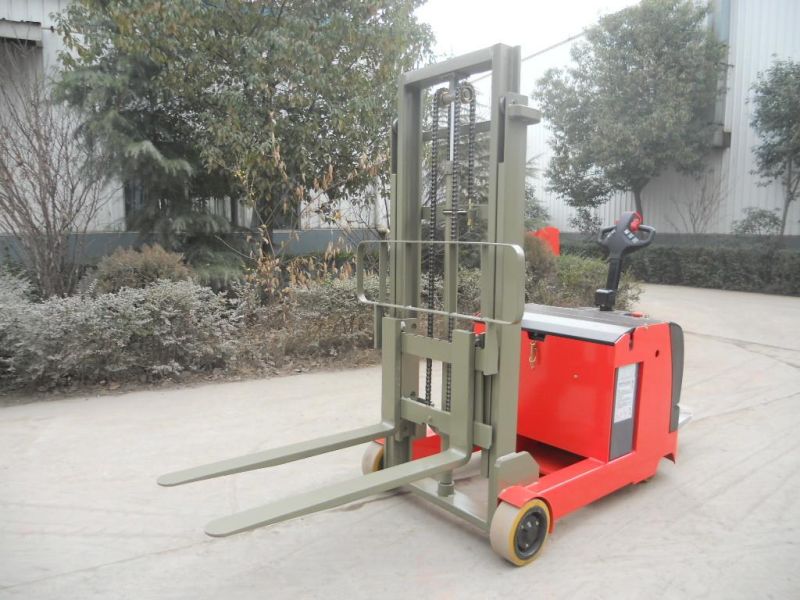

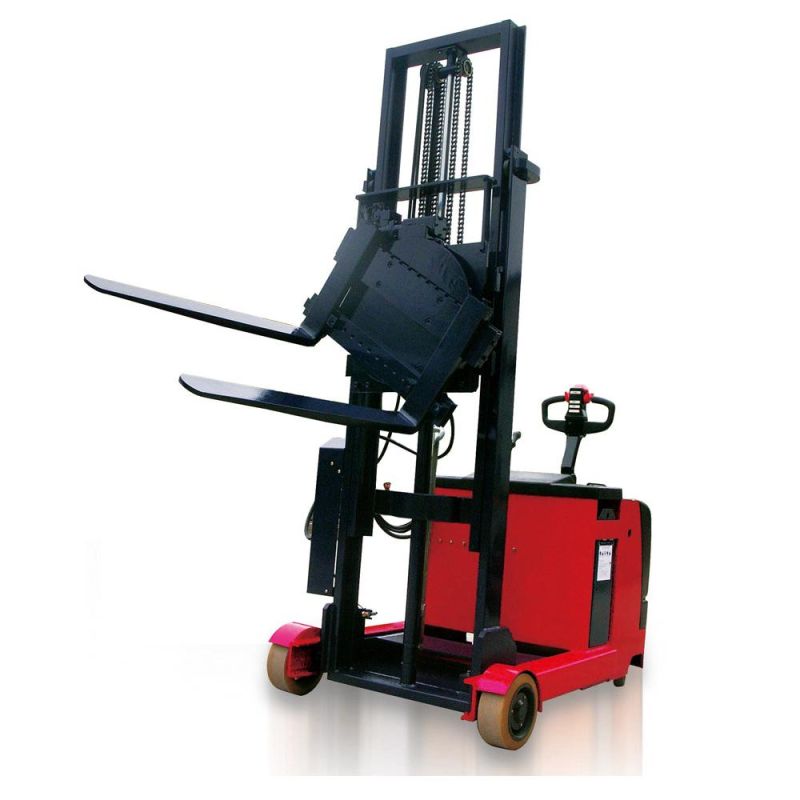

ELECTRIC COUNTER BALANCE STACKER

Able to handle double sides pallets, widely used for America market.
Rated loading weight 700kg 900kg 1000kg 1500kg.
Forks length 850mm /920mm/1070mm/1150mm/1220mm
Curtis controller, AC drive motor;
Electric steering.






DETAILED IMAGES

1	Product name	Counterblance Electric Stacker
2	Model:	TBB09-25
3	Loading capacity	900kg@load center 400mm
4	Lifting height	2500mm
5	Mast lowered height	1745mm
6	Mast extended height	3100mm
7	Overall length	2235mm
8	Overall width	875mm
9	*Fork length	850mm
10	Overall forks width	200-600mm
12	Grade ability	3%/5%
13	Turning radius	1300mm
14	Aisle width for pallet 1000x1200mm crosswise	2740mm
15	Driving motor	0.75AC
16	Lifting motor	2
17	Battery	24V/100Ah
18	Charger	include
19	Net Weight	1160



Product name	Counterblance Electric pallet Stacker
Model:	TBB10-30
Loading capacity	1000kg
Lifting height	3000mm
Mast lowered height	2087mm
Mast extended height	3568mm
Overall length	2720mm
Overall width	1010mm
Long arm length	1070mm
Grade ability	8%-10%
Turning radius	1495mm
Driving motor	1.5kw   AC
Lifting motor	2.0kw   DC
Battery:	24V/210AH
Weight:	1815kg

CERTIFICATIONS

FQA

Q1. What is your terms of packing?
A: Generally, we pack our goods in International packing standard way with additional special fixed. If you
have legally registered patent, we can pack the goods in your branded boxes after getting your
authorization letters.

Q2. What's your warranty?
Key parts for 12 months. Easily damaged parts are not in the range of the warranty. During the warranty
term, key parts are damaged (not caused by improper operation), seller will compensate buyer with the
replacement parts free of charge. Buyer will show seller clear picture to verify they are damaged indeed.
If necessary, seller can ask buyer to return the damaged parts.

Q3. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and
packages
before you pay the balance.

Q4. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.

Contact me right now for more information! Online 24 hours one day!
