• Model NO.：LTR100
• Lift height：3000~5000mm
• Condition：New
• Rated Center Distance：500mm
• Min.Ground Clearance：360mm
• Wheel Base：2630mm
• Engine：Cummins Engine
• Item：All Terrain Fork Lift
• Brand：Ltmg
• Rated Power：10000kg
• Max.Grade Ability：20%
• Wheelbase：2630mm
• Work Pressure：16 MPa
• Output Power：92kw
• Transport Package：Container
• Specification：8000kg
• Trademark：LTMG
• Origin：China
• HS Code：84272090
• Production Capacity：500units,Year

Rated Power
10000 Kg
Rated center distance
500 mm

Running speed(no load)
21 Km/h

Lifting speed(full load)
490 Km/h
Max.grade ability
20%
Deadweight
8000 Kg
Tires
Front wheel
17.5-25
Rear wheel
17.5-25
Tread
Front wheel
1800 mm
Rear wheel
1800 mm
Wheelbase
2630 mm
Min.ground clearance
360 mm
Battery
Voltage
24V
Engine
Model
CA110/125G5
Place of origin
Xichai
Output power
92 Kw
Rated torque
432 Nm
Number of cylinders
6
Cylinder size X trip
90 X 100 mm
Displancement
2540 cc
Fuel tank capacity
65 L
Transmission
Gears(front and rear)
3/2
Work pressure
16 Mpa

Product Features

1.Safe:
LED work lights and warning lights make it safer and more efficient evenin poor lighting conditions.
New designed overhead guard protective device prevent the sudden accidents.
Thicker reinforcing plate ensure the safety and efficiency.

2.Easy to operate:
Linde-Technology single chain with reinforced load backrest--makes an excellent and wider field of visionfor operator.

3.Beautiful and comfortable:
New suspension adjustable seat makes the long time operating more comfortable.
Step area is 1.5 times larger with lower step height than fellow forklifts.

4.Durable:
Sunken tilt cylinder under the floor build broader flat floor and less abrasion.
Change plastic slider to alloy copper slider, reduce the abrasion and narrow the gap between masts.
Thicker steering axle bridge deck.

5.Environmental:
Middle muffler, more environmental.

6.High technology:
Maintenance free radiators adopt Germany technology.

After sales service

Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.

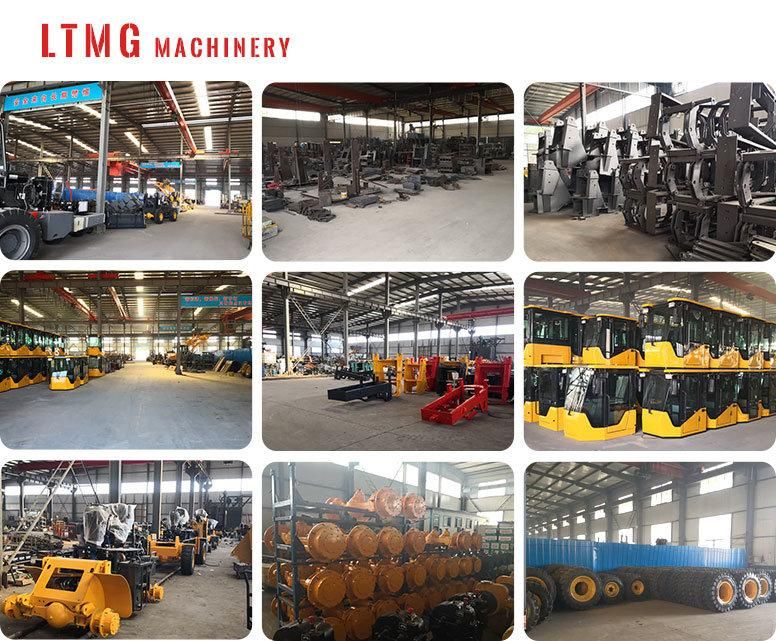

Factory
