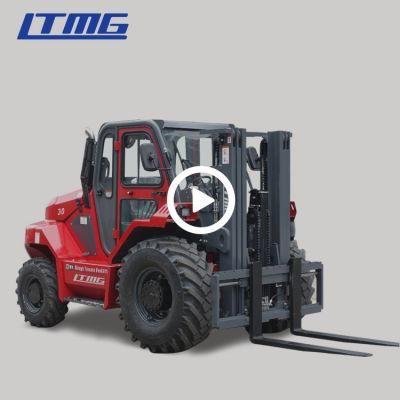

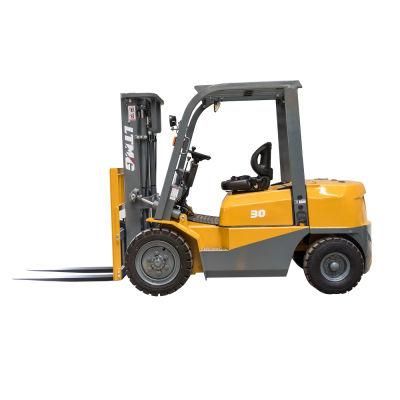

Ltmg Diesel Powered Fork Lift 3.5t Forklift Truck with Optional 6m Lifting Height
XIAMEN LTMG CO., LTD.- Cab Location：Adjustable
- Type：Diesel Forklift
- Power：Diesel Engine
- Load Capacity：5ton
- Fuel：Diesel
- Load center：500mm
Base Info
- Model NO.：FD35
- Lift height：3000mm
- Condition：New
- Fork Size：1070*125*50mm
- Weight：4500kg
- Engine：Chinese Engine,Isuzu
- Wheelbase：1700mm
- Color：Could Be Designed by Buyer
- Free Lift：140mm
- Warranty：1 Year , 2000 Working Hours
- Tire Type：Pneumatic
- Transport Package：Container
- Specification：2775*1225*2115mm
- Trademark：LTMG
- Origin：China
- HS Code：84272090
- Production Capacity：1000sets,Year
Description
General1 Model FD35 2 Power Type Diesel 3 Rated Capacity kg 3500 4 Load Centre mm 500 Characteristic&Dimension 5 Lift Height mm 3000 6 Fork Size L×W×T mm 1070×125×50 7 Mast Tilt Angle F/R Deg 6°/12° 8 Front Overhang (Wheel center to fork face) mm 485 9 Ground Clearance(Bottom of mast) mm 140 10 Overall Dimension Length to face of fork(Without fork) mm 2775 11 Overall Width mm 1225 12 Mast Lowered Height mm 2115 13 Mast Extended Height(With backrest) mm 4150 14 Overhead Guard Height mm 2090 15 Turning Radius (outside) mm 2480 Performance 16 Speed Travel (Empty load) km/h 20 17 Lifting (Full load) mm/s 440 18 Max.Gradeability (No load/Full load) % 20 Chassis 19 Tire Front mm 28×9-15-12PR 20 Rear mm 6.50-10-10PR 21 Wheelbase mm 1700 22 Service weight kg 4500 Power&Transmission 23 Battery Voltage/Capacity V/Ah 12/80 24 Engine Model 4JG2PE-01 25 Manufacture ISUZU 26 Rated output/r.p.m. kw 46/2450 27 Rated torque/r.p.m. N·m 184.7/1600-1800 28 No.of Cylinder 4 29 Bore×Stroke mm 95.4×107 30 Displacement cc 3059 31 Fuel Tank Capacity L 60 32 Transmission Type Hydraulic 33 Stage FWD/RVS 1/1
Product Features
1.Safe :
LED work lights and warning lights make it safer and more efficient evenin poor lighting conditions.
New designed overhead guard protective device prevent the sudden accidents.
Thicker reinforcing plate ensure the safety and efficiency.
2.Easy to operate:
Linde-Technology single chain with reinforced load backrest--makes an excellent and wider field of visionfor operator.
3.Beautiful and comfortable:
New suspension adjustable seat makes the long time operating more comfortable.
Step area is 1.5 times larger with lower step height than fellow forklifts.
4.Durable :
Sunken tilt cylinder under the floor build broader flat floor and less abrasion.
Change plastic slider to alloy copper slider, reduce the abrasion and narrow the gap between masts.
Thicker steering axle bridge deck.
5.Environmental:
Middle muffler, more environmental.
6.High technology:
Maintenance free radiators adopt Germany technology.

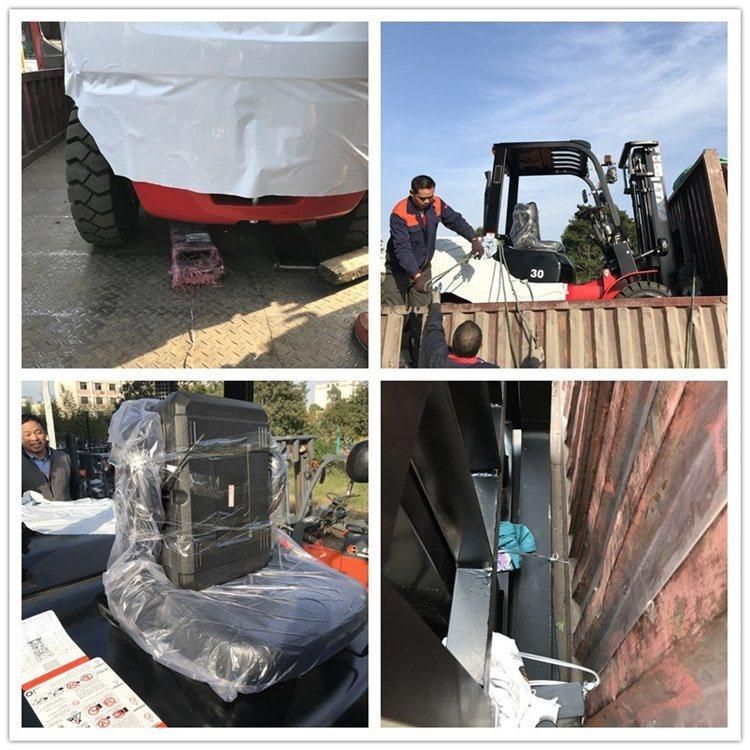

Packaging & Shipping
Customer & Exhibition

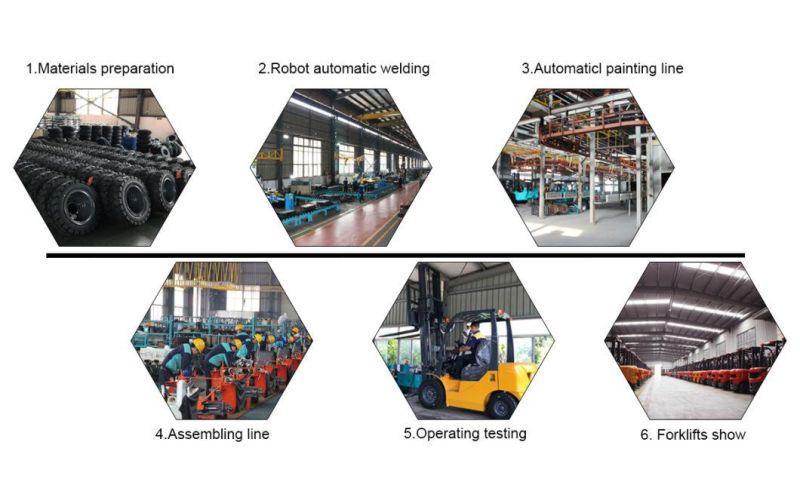

Company
