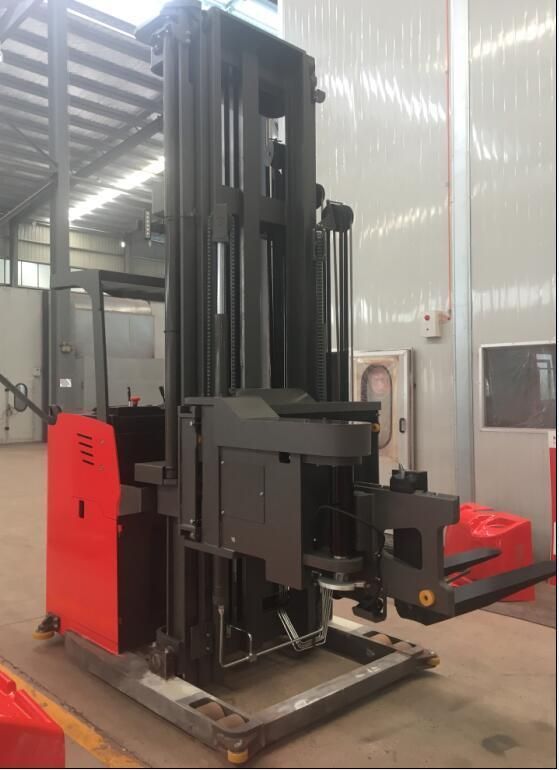

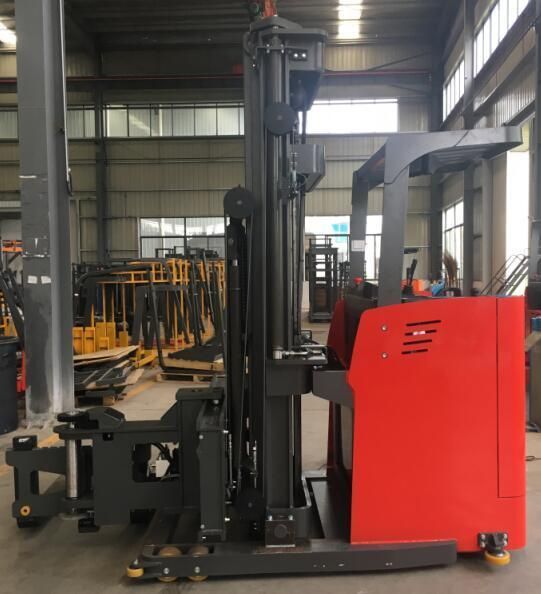

• Model NO.：TC10
• Lift height：>5000mm
• Condition：New
• Service Weight：4760kg
• Max. Lift Height：7500mm
• Min.Lift Height：3000mm
• Fork Type：3 Ways
• Driving Motor：AC Motor
• Fork Dimension：1070mm
• Aisle Width：1480mm
• Brake Type：Mechanical
• Steering Type：EPS
• Battery Change Type：Side Pull
• Transport Package：International Packing Standard Way with Additional
• Specification：2892*1450*2570
• Trademark：NOELIFT
• Origin：Zhejiang
• HS Code：8427102
• Production Capacity：300

NOELIFTModel TC10TC10SQPower type BatteryBatteryOperation type Stand-onStand-onLoading capacitykg10001000Loading centermm500500Tire type front/rear solid PU/solid PUsolid PU/solid PULifting heightmm30004500Mast height(closed)mm25702750Overhead guard heightmm23202320Overall lengthmm33753454Overall widthmm14501450Fork sizemm1070×100×351070×100×35Fork spreadmm260~820260~820Aisle(1000×1000 pallet)mm14801480Turning radiusmm18801880Min. width aislemm14801480Total weight(include battery)kg32263920

HIGH MAST PARAMETER



Mast	Full free	Lifting height	Lowered height of the mast	Free lift height	Loading capacity @ MAX. height
					TC10
Duplex	NO	3000mm	2570mm	100mm	1000kg
	NO	3500mm	2820mm	100mm	1000kg
	NO	4000mm	3070mm	100mm	1000kg
Triplex	YES	5000mm	2920mm	1670mm	1000kg
	YES	5500mm	3090mm	1850mm	1000kg
	YES	6000mm	3250mm	2000mm	1000kg
	YES	6500mm	3420mm	2200mm	900kg
	YES	7000mm	3580mm	2400mm	800kg
