• Model NO.：FD20
• Lift height：3000~5000mm
• Condition：New
• Model：Fd20
• Fork Size：1070*122*40 mm
• Weight：3330 Kg
• Wheel Base：1600 mm
• Tire Type：Pneumatic
• Turning Radius：2170 mm
• Tilt Range(F/B)：6,12 Deg
• Engine：Isuzu
• Ground Clearance ：110mm
• Rated Power：34.3 Kw
• Transport Package：Container
• Specification：2460mm*1150mm*1995mm
• Trademark：LTMG
• Origin：China
• HS Code：84272090
• Production Capacity：800sets,Year

1Manufacturer             LTMG2Model Power shift T/M  FD20Manual shift T/M FD203Load capacity   kg     20004Load center    mm     5005Power unit              Diesel  6Operator type            Driver/seat 7Tire type              Pneumatic  8Wheel   Front/rear   2/2   Dimension 9Max. lifting height     mm300010Free lift    mm16011Fork size  L*W*Tmm1070*122*4012Tilt rangeMast forward/backwarddeg6/1213Overall length(without fork)    mm246014Total width    mm115015Mast height (fork lowering)    mm199516Overall height fork raised With backrest  mm403017Height to head guard    mm212018Turning raduis(outside)    mm217019Front face of fork to front axle    mm45020Min. right angle stacking aisle without load length&clearence mm2615Performance21SpeedMax Travelling     full/no load  km/h17/1922Lifting    full/no load mm/s550/58023Lowering     full/no loadmm/s450/55024Max.drawbar pull   Power shift T/M  full/no load kg1670/830Manual shift T/M   full/no load kg1700/83025Gradeability at 1.6km/h                 Power shift T/M  full/no load %27/20Manual shift T/M   full/no load  %21/20Weight 26Truck weight    kg333027Weight  distribution Full  load  front/rear kg4700/63028No  load   front/rear kg1510/1820Frame 29Tires  Number front/rear2/230Model front axle  7.00-12-12PR31rear axle6.00-9-10PR32Wheelbase    mm160033Tread  Front/rearmm970/97034Ground clearenceAt lowest point(mast) mm110Frame mm11535BrakeService  brake   Hydraulic-foot pedal Parking brake      Engine36Battery Voltage/capacityV/AH12/8037Engine Model    ISUZU C240Rated power kw/rpm34.3/2500Rated torque N.m/rpm138/1800Number of cylinders    4Placement L2.369Fuel tank capacity L7038Transmission Speed forward/backwardPower shift T/M Manual shift T/M  T/M 39Operating pressure Hydraulic system pressure kg/cm²180Product Features

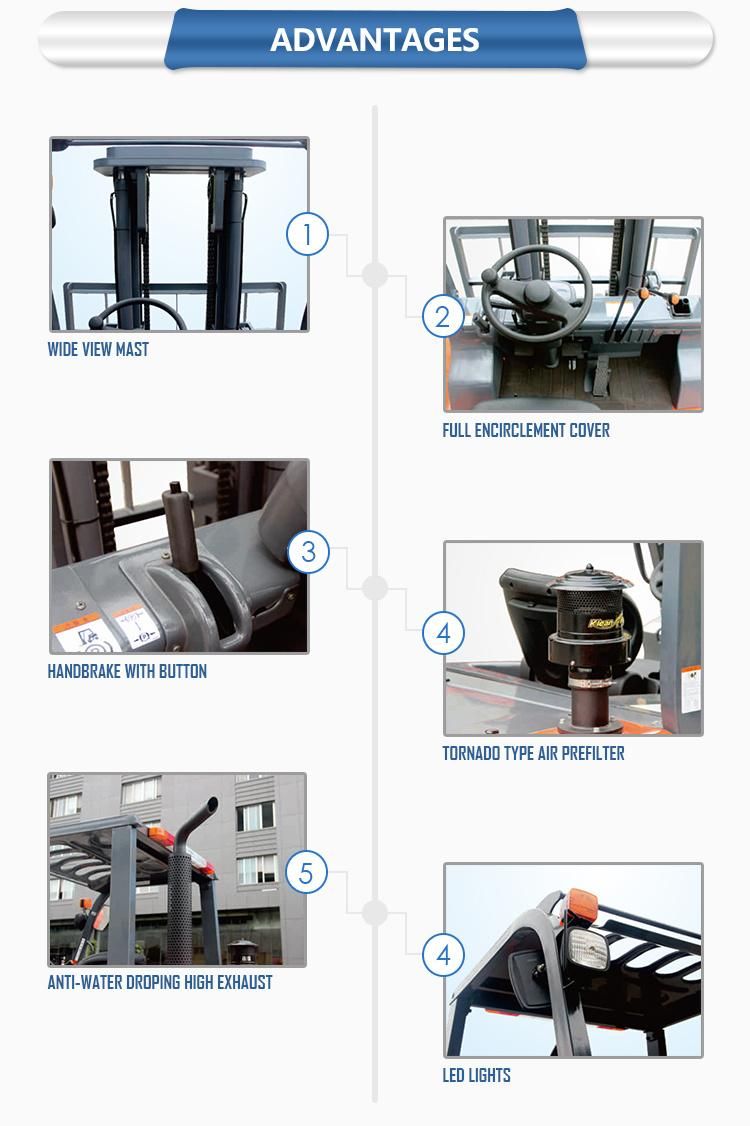

1.Safe:
LED work lights and warning lights make it safer and more efficient evenin poor lighting conditions.
New designed overhead guard protective device prevent the sudden accidents.
Thicker reinforcing plate ensure the safety and efficiency.
Equipped with OPS or ORS seat and brake switch to prevent incorrect operation and secure the driver and
the forklift from all sides.
2.Easy to operate:
Linde-Technology single chain with reinforced load backrest--makes an excellent and wider field of visionfor operator.
3.Beautiful and comfortable:
New suspension adjustable seat makes the long time operating more comfortable.
Step area is 1.5 times larger with lower step height than fellow forklifts.
4.Durable:
Sunken tilt cylinder under the floor build broader flat floor and less abrasion.
Change plastic slider to alloy copper slider, reduce the abrasion and narrow the gap between masts.
Thicker steering axle bridge deck.
5.Engines
Equipped with Chinese powerful and reliable engines with excellent environmental performance; Original imported
Isuzu, Mitsubishi and Cummins engines are optional.
6.Environment performance
install optional three-way catalytic device to lower the harmful emission beside of low emission engines;
Adopt soundproof cotton to ease noise and high exhaust system as option to reduce dust.

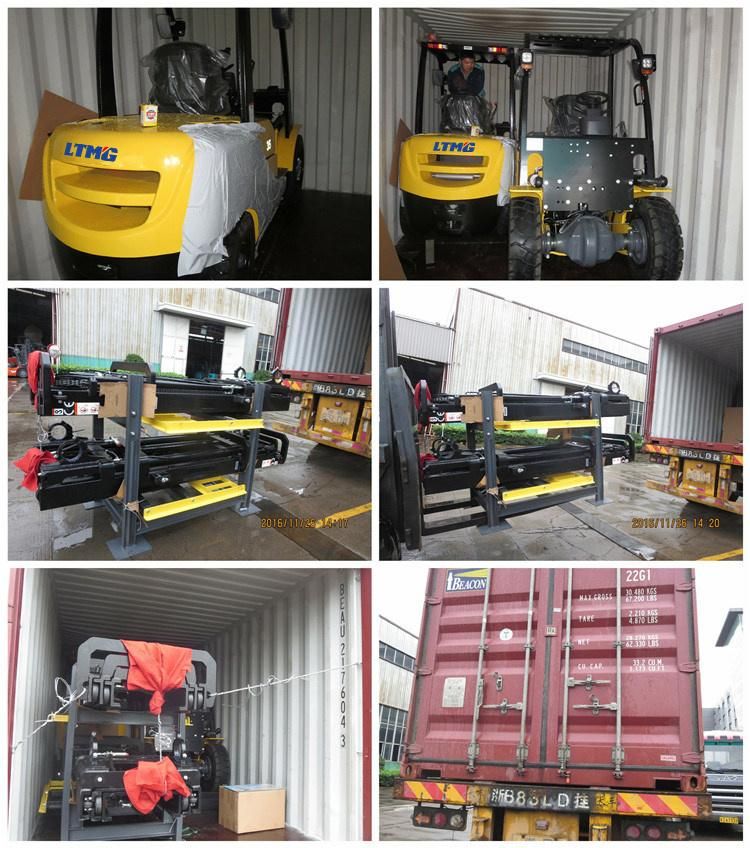

Packing & Shipping

Factory Show
LTMG machinery is engaged in forklift industry over 20 years.We produce a wide range of forklifts, loaders and airport tractors
If you are interested in our product,you could visit our website.
Website:
Ltmg.group
http://ltmamachine.en.made-in-china.com (Group)
http://ltmamachine.en.made-in-china.com  (Forklift)
http://ltmamachine.en.made-in-china.com  (Loader)
http://ltmamachine.en.made-in-china.com (Airport GSE)




Customer visit


After Sales Service
LTMG grants our clients a twelve-month-period or 2000 working hours warranty for any machine purchased from us.
LTMG can also help clients coordinate with trained service personnel to provide you detailed and extensive knowledge about your specific machine. With our technical advises, your machine service life can be significantly prolonged and sustained with high capacity.
