5 Ton Counterbalance Forklift Truck with Optional Engine
XIAMEN LTMG CO., LTD.- Cab Location：Adjustable
- Type：Powered Pallet Truck
- Power：Diesel Engine
- Load Capacity：1T - 5T
- Fuel：Diesel
- Load center：600mm
Base Info
- Model NO.：FD50
- Lift height：3000~5000mm
- Condition：New
- Engine：Chinese Engine,Isuzu Engine
- Fork Size：1220mm*150mm*60mm
- Weight：8050kg
- Wheelbase：2250mm
- Color：Decided by Buyer
- Max.Lifting Height：3000mm
- Rated Power：82.3kw,2000rpm
- Warranty：1 Year or 2000 Working Hours
- Item：Counterbalance Forklift Truck
- Transport Package：Container
- Specification：3455mm*1995mm*2500mm
- Trademark：LTMG
- Origin：China
- HS Code：84272090
- Production Capacity：1000 Sets,Year
Description
GeneralModel LTMG FD50 Power Type Diesel Rated Capacity kg 5000 Load Centre mm 500 Characteristic&Dimension Lift Height mm 3000 Fork Size L×W×T mm 1070×150×50 Mast Tilt Angle F/R Deg 6°/12° Front Overhang (Wheel center to fork face) mm 570 Ground Clearance(Bottom of mast) mm 210 Overall Dimension Length to face of fork(Without fork) mm 3220 Overall Width mm 1480 Mast Lowered Height mm 2350 Mast Extended Height(With backrest) mm 4250 Overhead Guard Height mm 2320 Turning Radius (outside) mm 2940 Min. intersecting aisle mm 2960 Performance Speed Travel (Full load) km/h 25 Lifting(Full load) mm/s 440 Max.Gradeability (No load/Full load) % 20 Chassis Tire Front mm 300-15-18PR Rear mm 7.00-12-12PR Wheelbase mm 2100 Service weight kg 6900 Power&Transmission Battery Voltage/Capacity V/Ah (12V/80Ah)x2 Engine Model LR4B3-G89X6-U2 Manufacture LUOTUO Rated output/r.p.m. kw 57/2200 Rated torque/r.p.m. N·m 284-297/1400-1600 No.of Cylinder 4 Bore×Stroke mm 108×125 Displacement cc 4578 Fuel Tank Capacity L 105 Transmission Type Powershift Stage FWD/RVS 2/1 Operating Pressure for Attachment Mpa 17.5
Our factory and client
Shipping & packging

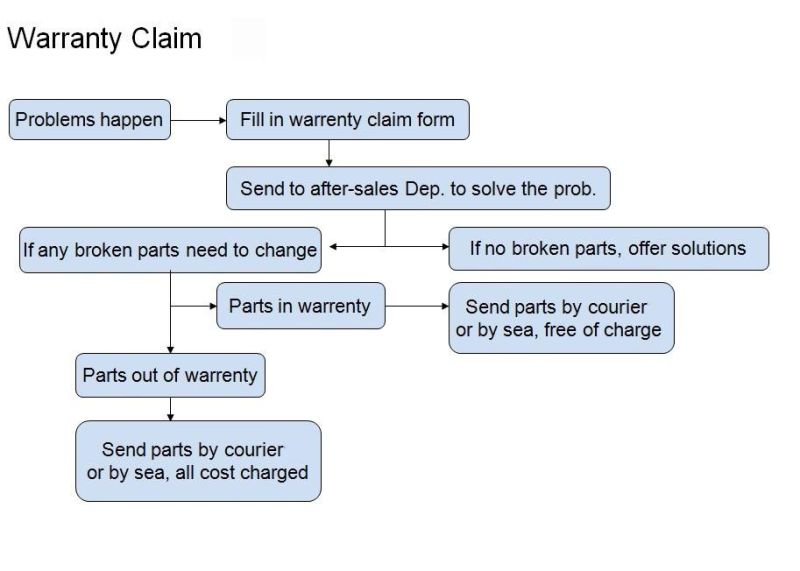

After sales service
LTMG always treat after-sale service as important as sale. Nowadays more than 100 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
