• Model NO.：FD30
• Load center：500mm
• Lift height：3000~5000mm
• Condition：New
• Weight：4380kg
• Engine：Isuzu
• Wheelbase：1700mm
• Color：Could Be Designed by Buyer
• Tire Type：Pneumatic,Solid
• Height to Head Guard：2140mm
• Mast Height：2075mm
• Free Lift：150mm
• Total Width：1225mm
• Transport Package：Container
• Specification：2705mm*1225mm*2140mm
• Trademark：LTMG
• Origin：China
• HS Code：84272090
• Production Capacity：800sets,Year

Manufacturer   LTMGModel Power shift T/MFD30TManual shift T/MFD30CLoad capacity  kg3000Load center  mm500Power unit   Diesel  Operator type   Driver/seat Tire type   PneumaticWheel Front/rear 2/2Max. lifting height   mm3000Free lift  mm150Fork size                     L*W*Tmm1070*125*45Tilt range  Mast forward/backward deg6/12Overall length(without fork)  mm2705Total width  mm1225Mast height (fork lowering)  mm2075Overall height fork raised With backrest                                    mm4250Height to head guard mm2140Turning radius(outside)          mm2445Front face of fork to front axle  mm480Min. right angle stacking aisle without load length&clearancemm2925Speed Max Travelling full/no loadkm/h18/19.5Lifting full/no load                mm/s450/500Lowering full/no load      mm/s450/450Max.drawbar pullPower shift T/M full/no load        kg1500/1000Manual shift T/M full/no load kg1550/1000Gradeability at 1.6km/h Power shift T/M full/no load %18/20Manual shift T/M full/no load %18/20Truck weight kg4380Weight  distribution Full load front/rear            kg6490/890No load front/rear           kg1670/2700Tires Numberfront/rear2/2Modelfront axle 28x9-15-12PRrear axle6.50-10-10PRWheelbase  mm1700Tread Front/rearmm1000/970Ground clearance   At lowest point(mast)                        mm120Framemm135Brake Service  brake Hydraulic-foot pedal  Parking brake Mechanical-hand lever Battery   Voltage/capacityV/AH12/80Engine                                         Model ISUZU C240Rated powerkw/rpm34.3/2500Rated torqueN.m/rpm138/1800Number of cylinders 4PlacementL2.369Fuel tank capacityL70Transmission                             Speed forward/backward                  Power shift T/M
Manual shift T/M              1-1 power shift T/M
2-2 manual shift T/M
Product Features

1. Equipped with Original imported Isuzu powerful and reliable engines with excellent environmental performance;
2. Adopt advanced load sense technology which offers flow for steering system to save energy ,protect environment ,and lower the system heat.
3. Optimal gearshift pattern is selectable. Trucks with an automatic transmission come with a three-mode selection switch. You can select the automatic transmission gearshift pattern according to your working conditions with the flick of the switch.
4. high strength-solder bath mast. Wide filed of the front vision ensures the safety of the operation and improves work efficiency.

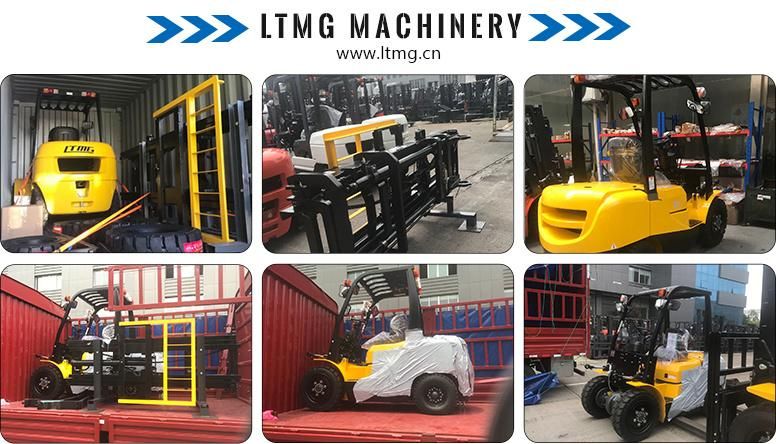

Shipping & package

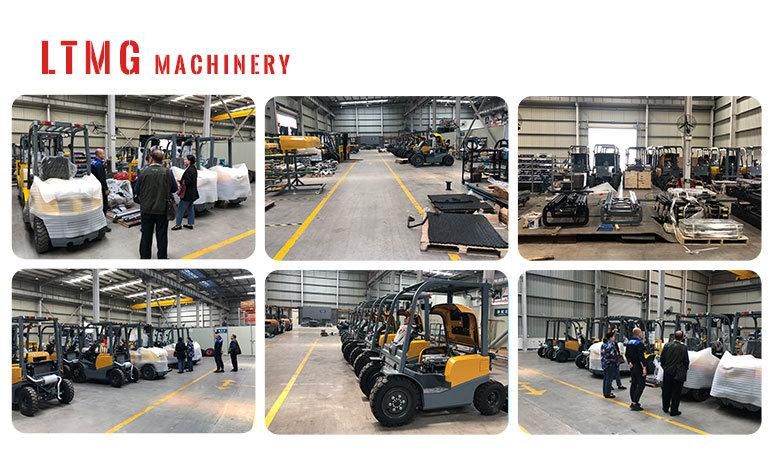

Factory Show
LTMG machinery is engaged in forklift industry over 20 years.We produce a wide range of forklifts, loaders and airport tractors



After Sales Service
LTMG grants our clients a twelve-month-period or 2000 working hours warranty for any machine purchased from us.
LTMG can also help clients coordinate with trained service personnel to provide you detailed and extensive knowledge about your specific machine. With our technical advises, your machine service life can be significantly prolonged and sustained with high capacity.
