Diesel All Terrian Forklift with Ce for Sale Fd38 (T)

Maxizm Construction Machinery (Qingdao) Co., Ltd.
  • Cab Location：Adjustable
  • Type：Diesel Forklift
  • Power：Diesel Engine
  • Load Capacity：1T - 5T
  • Fuel：Diesel
  • Load center：500mm

Base Info

  • Model NO.：FD38(T)
  • Lift height：3000~5000mm
  • Condition：New
  • Powertype：Diesel
  • Ratedcapacity(Kg)：3800
  • Jloadcentre(mm)：500
  • H1stdmaxliftingheight(mm)：3000
  • H3freeliftingheight(mm)：130
  • L5*W*Tstdforksize(mm)：1070*150*50
  • Masttiltangle(Deg)：6,12
  • L3frontoverhang(mm)：495
  • Transport Package：Nude Packing or by Container
  • Specification：1070*150*50mm
  • Trademark：LONKING
  • Origin：China
  • HS Code：842790000
  • Production Capacity：10000 Units,Month

Description

MODELFD38(T)PowertypeDieselRatedcapacity(Kg)3800JLoadcentre(mm)500h1STDMaxliftingheight(mm)3000h3Freeliftingheight(mm)130L5*W*TSTDForksize(mm)1070×150×50Masttiltangle(deg)6/12L3Frontoverhang(mm)495L4Rearoverhang(mm)530R1Min.turningradius(mm)2620Min.width for pallets 1,000×1,200 crossways (L×W)(mm)4315Speed(load/unload) Max.travelingspeed(km/h)20Max,liftingspeed(mm/s)(load/unload)380/410Max.gradient(%)20STD Dead weight(kg)5000S/PTread(frnt/rear)(mm)1040/980L2Axledistance(mm)1900Min.groundclearance m2Mast(mm)150m1Frame(mm)180Optinal EngineEngine Model4D30G31YN4A055-31CRC04-1834C6-65M22A498T1Rated Power(kw/rpm)36.8/250036.8/260036.8/250048/245036.8/2650Max.Torque(Nm/rpm)174/1900180/1800185/1800215/1700180/1800Number of Cylinders44444Displacement (L)2.972.673.473.473.17

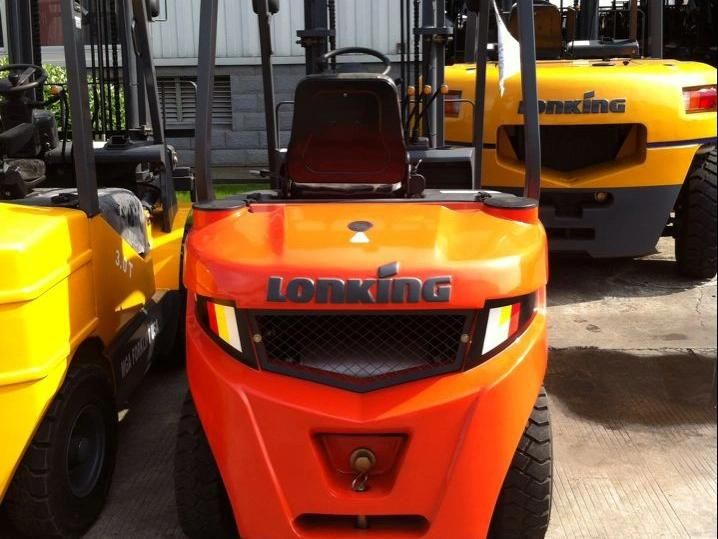

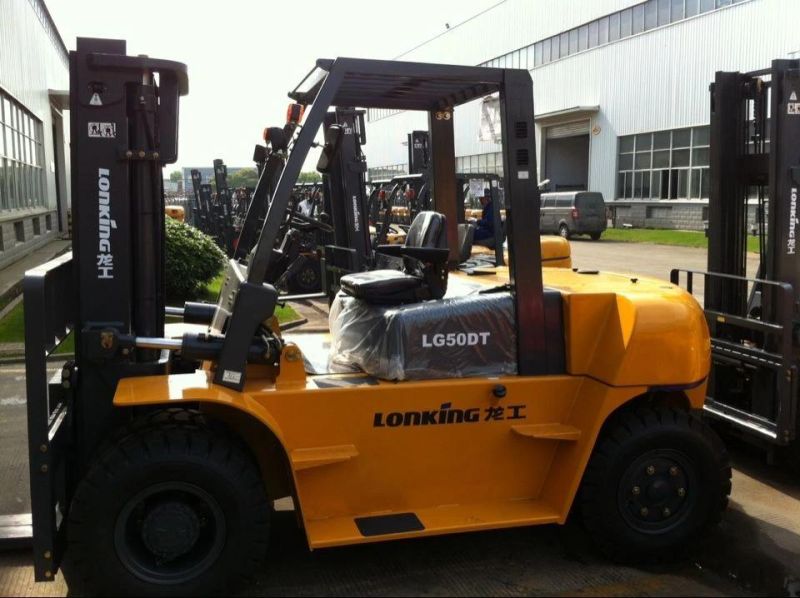

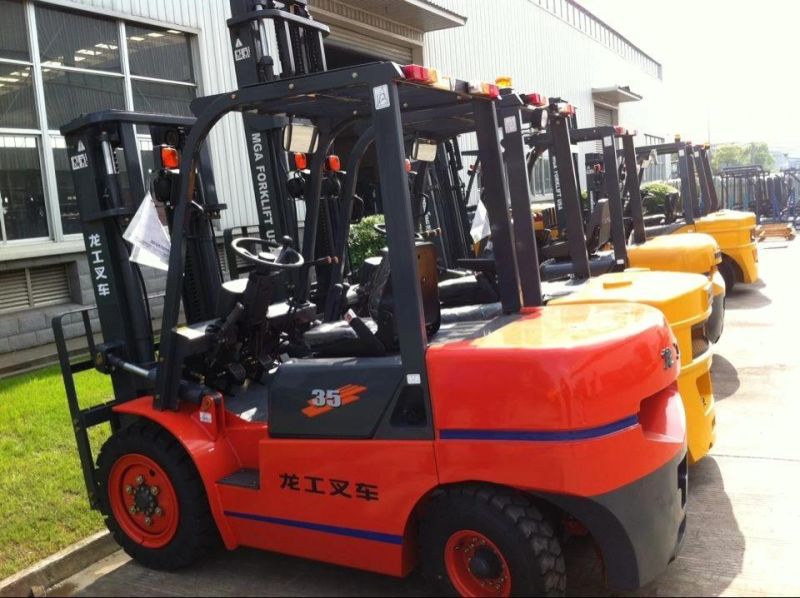

Product Show
