Haiqin Brand Telescopic Forklift Loader (HQ920T) with 5.68m Lift Height

Weifang Haiqin Top Machinery Co., Ltd.
  • After-sales Service：24 Hours Every Day of Technology and Parts Service
  • Warranty：12 Months
  • Cab Location：Adjustable
  • Type：Diesel Forklift
  • Power：Diesel Engine
  • Load Capacity：1T - 5T

Base Info

  • Model NO.：HQ920T
  • Fuel：Diesel
  • Load center：>500mm
  • Lift height：>5000mm
  • Condition：New
  • Loading Weight：2000kg
  • Engine：Yunnei, Euro 5 , Cummins , EPA 4
  • Length：6000mm
  • Width：2050mm
  • Height：2750mm
  • Operation：Joystick Handle
  • Transport Package：2 Units in a Hq40 Container
  • Specification：CE, ISO, SGS, ROPS & FORPS
  • Trademark：Haiqin
  • Origin：Shandong, China
  • HS Code：84295100
  • Production Capacity：8000 Units , Year

Description

Basic Info.

Model NO. HQ920T Fuel Diesel Load center >500mm Lift height >5000mm Condition New Loading Weight 2000kg Engine Yunnei/ Euro 5 / Cummins / EPA 4 Length 6000mm Width 2050mm Height 2750mm Operation Joystick Handle Transport Package 2 Units in a Hq40 Container Specification CE, ISO, SGS, ROPS & FORPS Trademark Haiqin Origin Shandong, China HS Code 84295100 Production Capacity 8000 Units / Year

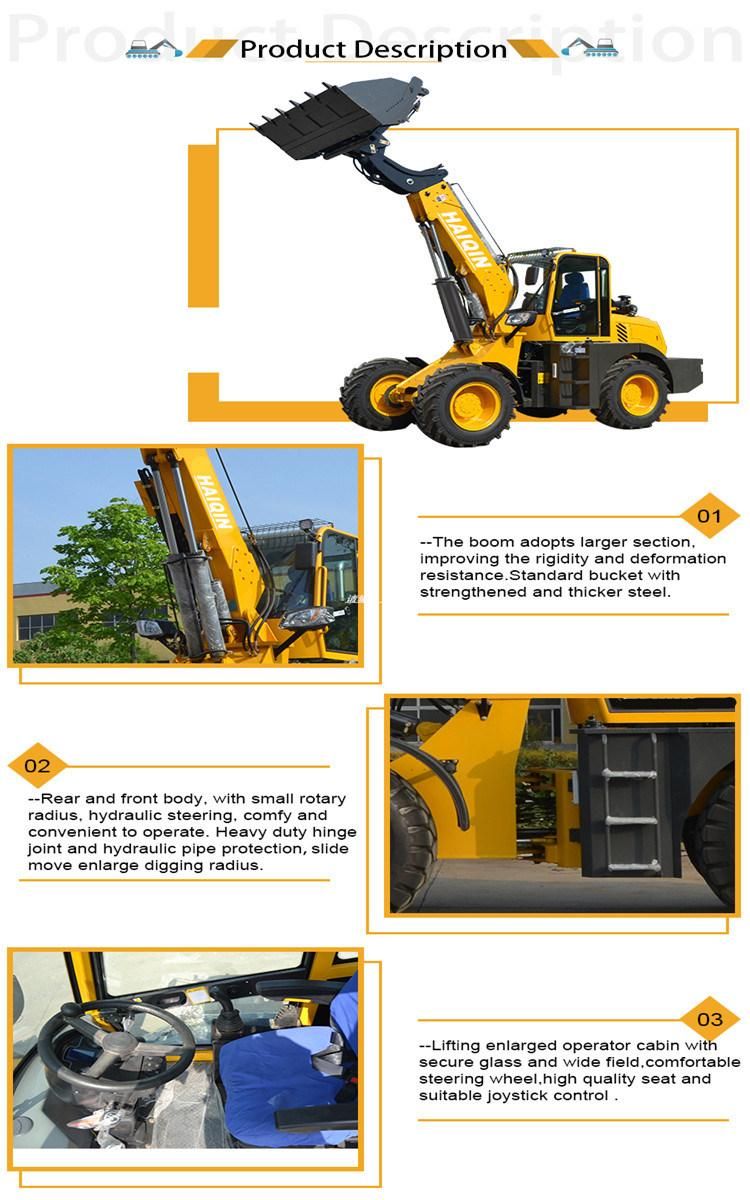

Product Description

Strong Telescopic forklift Loader (HQ920T) with Euro 5 engine
Haiqin Brand Telescopic Forklift Loader (HQ920T) with 5.68m Lift Height




1, Details Specifications of HQ920T Telescopic forklift Loader

1.0 Engine Details
(1) Model:  Standard China YUNNEI engine ; Euro 5 or  Cummins or EPA 4 engine for option
(2) Engine type: In-line arrangement, water-cooled, four-cycle diesel Engine
(3) Rated Power: 65KW
(4) Rated Speed: 2400 r/p. Min (rpm)

2.0 Transmission System:Hydraulic converter + drive shaft + Big reduction axles

3.0 Bucket
(1) Bucket Capacity: 1.1 m3
(2) Bucket width: 2000mm
(3) Bucket type: Heavy-duty bolt on teeth
(5) Rated Load: 2000kg including attachment

4.0 Overall Dimensions
(1) Overall Length: 6000mm
(2) Overall Height: 2750mm
(3) Overall Width: 2050mm
(4) Max. Lifting Height: 5680mm

5.0 Operating Specifications
(1) Steering System: Articulated Frame with hydraulic power steering
(2) Min Turning Radius: 5500mm
(3) Driving System: Hydraulic converter, four wheel drive
(4) Quick coupling system
(5) Joystick
(6) Self levering

6.0 Brake System
(1) Service Brake: Disc brake
(2) Parking Brake: Hand operated
7.0 Tyre Model: 16/70-20 .
8.0 Wheelbase: 2500mm
9.0 Track: 1600mm
10. System pressure: 20Mpa; Hydraulic output: 96L/min
11. Operation weight :5700kg

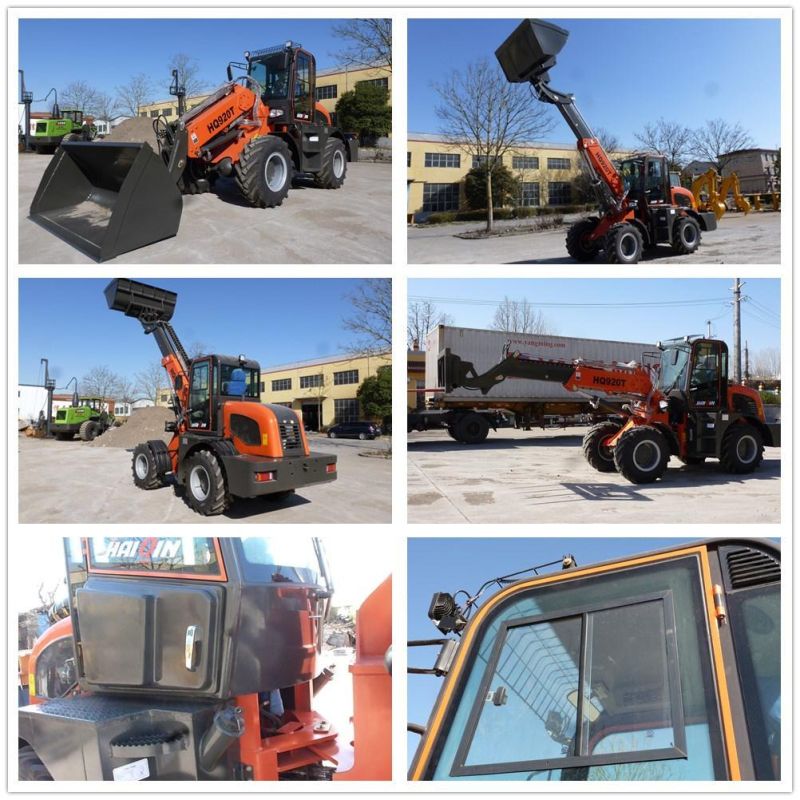

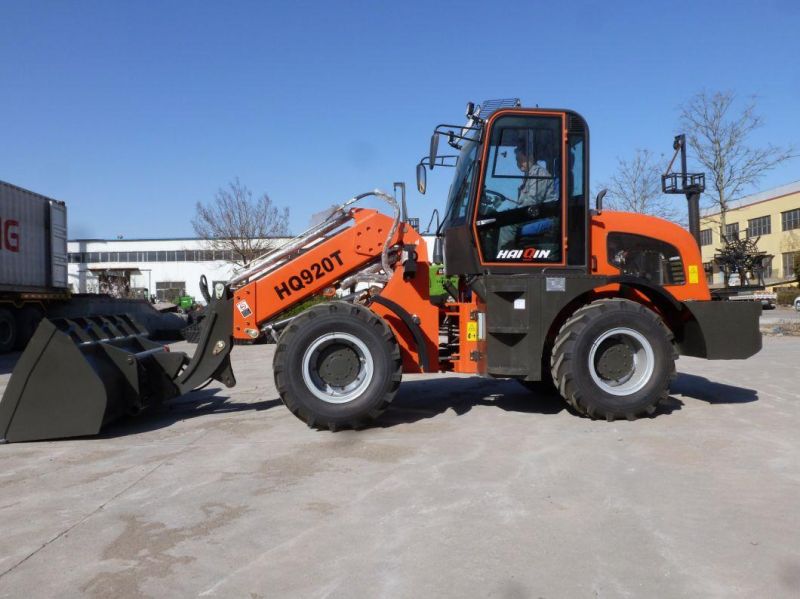

2, Details Photos of HQ920T Telescopic Loader

Haiqin Brand Telescopic Forklift Loader (HQ920T) with 5.68m Lift Height

Haiqin Brand Telescopic Forklift Loader (HQ920T) with 5.68m Lift Height
3, Optional Attachments for HQ920T Telescopic Loader

Haiqin Brand Telescopic Forklift Loader (HQ920T) with 5.68m Lift Height

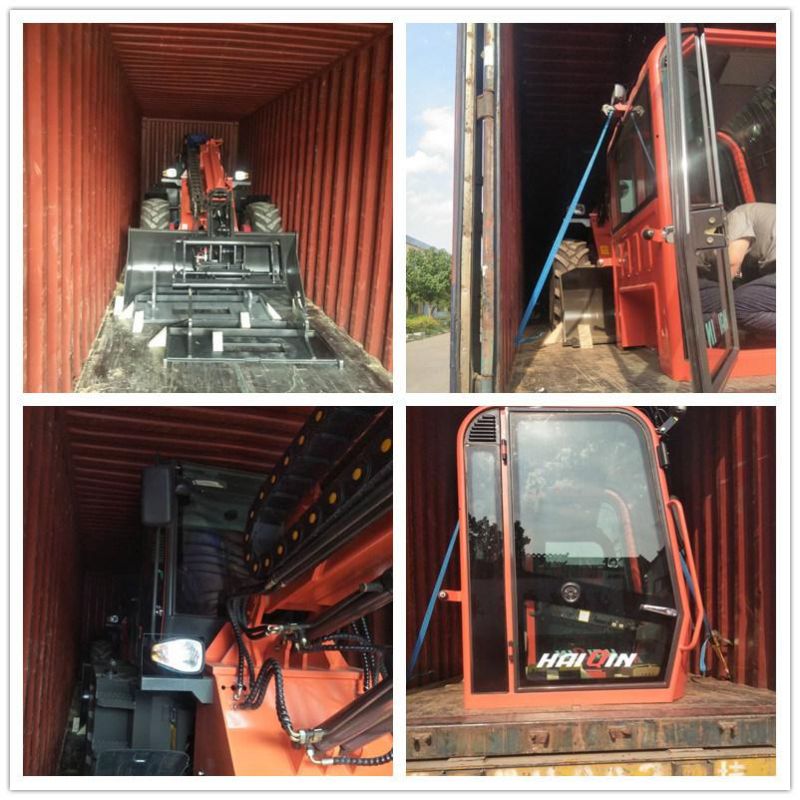

4, Professional Loading and Packing of HQ920T Telescopic Loader

Haiqin Brand Telescopic Forklift Loader (HQ920T) with 5.68m Lift Height

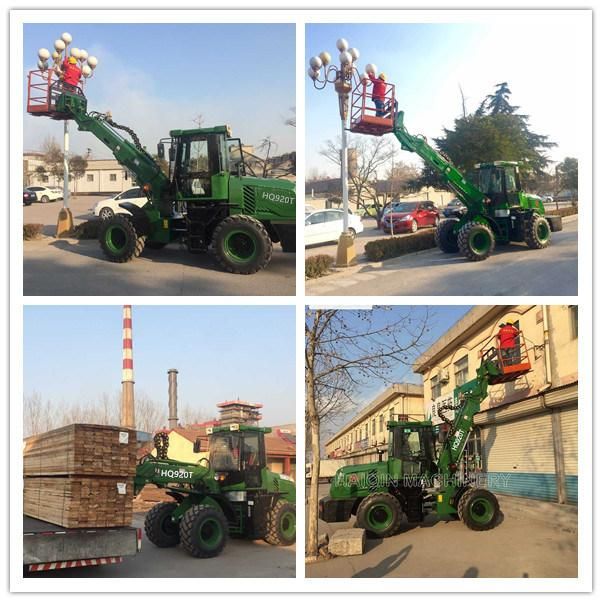

5, Working Case of Haiqin's Telescopic Loaders.
Haiqin Brand Telescopic Forklift Loader (HQ920T) with 5.68m Lift Height

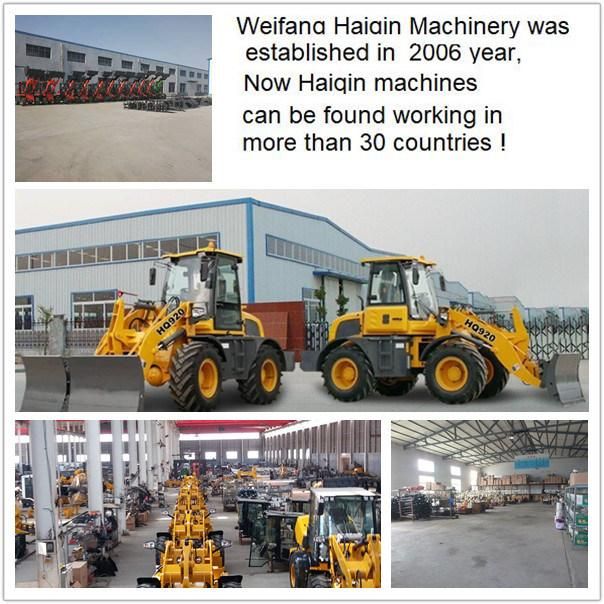

6, Factory introduction of Haiqin Machinery
Haiqin Brand Telescopic Forklift Loader (HQ920T) with 5.68m Lift Height

7,HaiQin Machinery Participating in foreign Machinery Exhibitions
Haiqin Brand Telescopic Forklift Loader (HQ920T) with 5.68m Lift Height

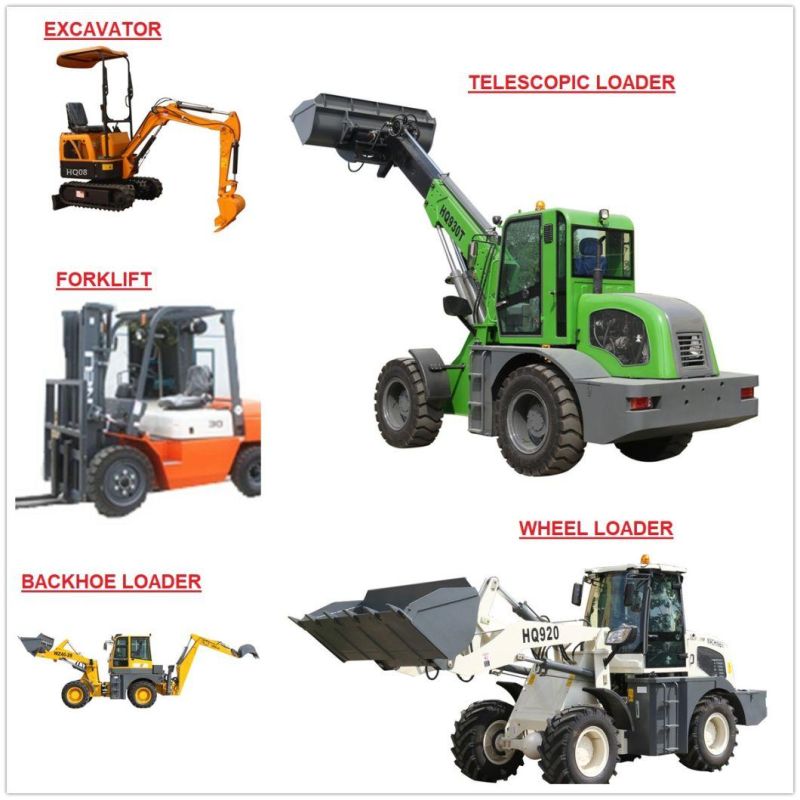

8, MORE PRODUCT CATEGORIES OF HAIQIN MACHINERY
Haiqin Brand Telescopic Forklift Loader (HQ920T) with 5.68m Lift Height
9,Warranty and Service.

HAIQIN loader has One Year Warranty.
During Warranty, if there is any part broken because of quality problem(except easy-damaged parts), send us detailed pictures and video, then we will send good/ new parts for your replacements.

Choose HAIQIN, and then better after-service will be guaranteed.

Contact us right now for more information!  Online 24 hours a day!
