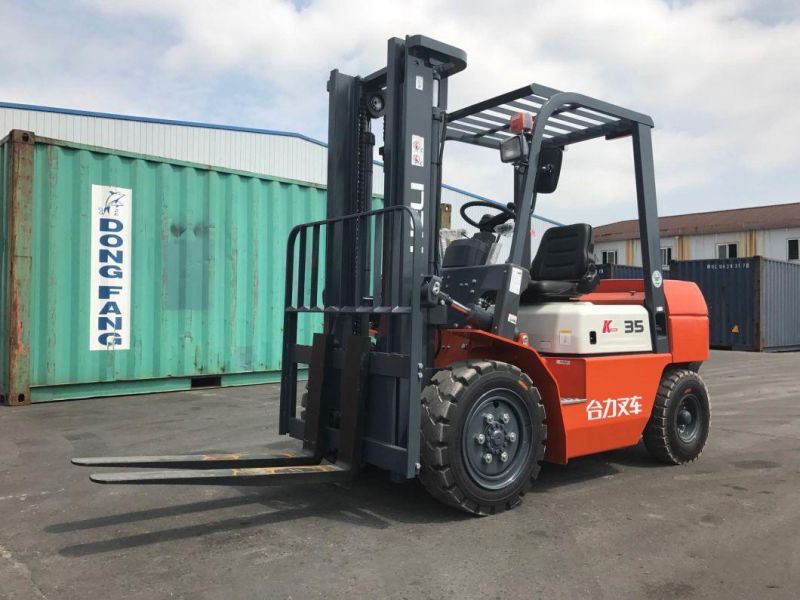

Heli Cpcd35 3ton Hangcha Forklift Price 3.5ton Forklift Trucks
Maxizm Construction Machinery (Qingdao) Co., Ltd.- After-sales Service：Online Service
- Warranty：1 Year
- Cab Location：Adjustable
- Type：Diesel Forklift
- Power：Diesel Engine
- Load Capacity：1T - 5T
Base Info
- Model NO.：cpcd30
- Fuel：Diesel
- Load center：>500mm
- Lift height：3000~5000mm
- Condition：New
- Product Name：Forklift Trucks Heli Brand 3ton Diesel Forklift Pr
- Color：Customer Demanded
- Brand：Heli
- Feature：High Efficiency
- Options：Fork Positioner
- Attachments：Working Platform
- Product Keywords：Manual Lift Tabl
- Transport Package：Nude Package or Container Package
- Specification：2930*1800*2452mm
- Trademark：HELI
- Origin：Anhui
- HS Code：8427209000
- Production Capacity：1000units,Year
Description
SPECIFICATIONModel CPCD30 Power type Diesel Rated capacity kg 3000 Load center mm 500 Lift height mm 4500 Free lift height mm 145 Fork size mm 1220×125×45 Mast tilt angle deg 6/12 Front overhang mm 482
OverallLength to face of forklift mm 2695 Overall width mm 1225 Mast lowerd height mm 2070 Mast extended height mm 4250 Overhead guard height mm 2090 Turning radius mm 2420 Min.right angle aisle width mm 2885
SpeedsDrive speeds km/h 18/19.5 Lifting speeds mm/s 470/520 Lowering speeds mm/s ≤600 Max.grade ability % 15 Total weight kg 4350
TiresFrot 28*9-12PR Rear 6.5-10-10PR Wheeslbase mm 1700
TreadFront mm 1000 Rear mm 970 Hold under mast mm 110
EngineModel Xinchang 490BPG Rated output kw/rpm 37/2650 Rated torque N.m/rpm 148/2000 No.of cylinder 4 Displacement L 2.54 Fuel tank capacity L 52
