• Model NO.：HG-AC
• Pump：AC
• Min. Height：85mm
• Max. Lifting Height：200 mm
• Width：550 mm
• Fork Length：1200 mm
• Power Souce：Hand Pallet Jack
• Wheel：PU or Nylon Wheel
• Certification：Ce GS TUV
• Thickness of Steel：3.75mm-4mm
• Transport Package：Wooden Case
• Specification：550*1200 mm
• Trademark：HUGO
• Origin：Shanghai
• HS Code：8427900000
• Production Capacity：3000 Set, Per Month

Basic Info.

Model NO. HG-AC Pump AC Min. Height 85mm Max. Lifting Height 200 mm Width 550 mm Fork Length 1200 mm Power Souce Hand Pallet Jack Wheel PU or Nylon Wheel Certification Ce GS TUV Thickness of Steel 3.75mm-4mm Transport Package Wooden Case Specification 550*1200 mm Trademark HUGO Origin Shanghai HS Code 8427900000 Production Capacity 3000 Set/ Per Month

Product Description

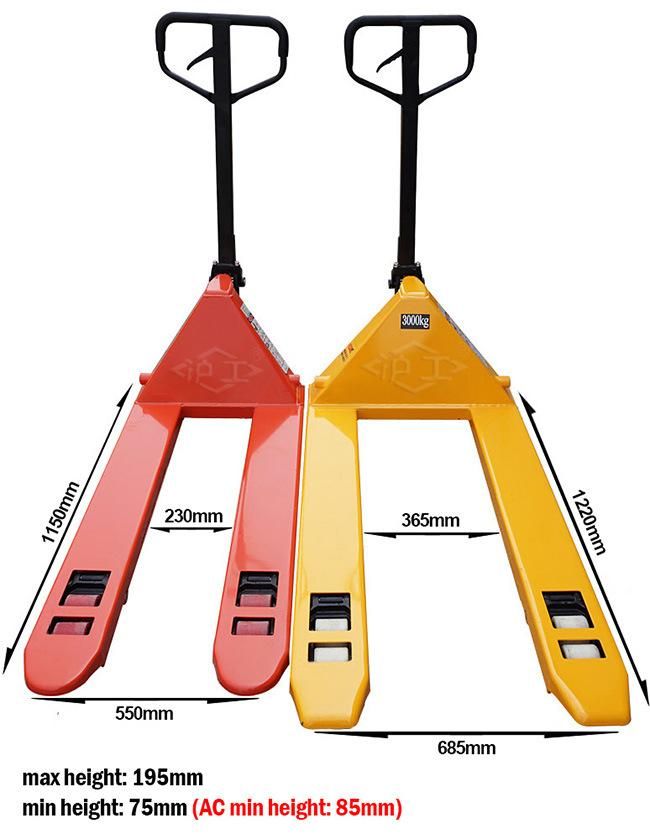

Widely Use 195 mm Lifting Height Manual Pallet Jack Lift

Manual / Hand Pallet Trucks:

1.Competitive price with high quality

2.Easy operate,durability

3.CE Certificated,OEM

Option:

1.Color: yellow, red, blue, orange or as customer's requirement

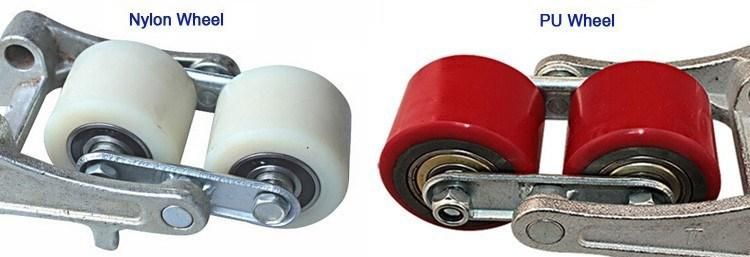

2.Option for wheel : nylon, PU, rubber

3.Handle: rubber coated or not.

4.Tandem load roller or single.

6. Advanced Robot welding ensure high strength, good finish, no bubble in the welding

7. With CE certificates, waiting for your order!

hydraulic pallet truck trolley
Safety is enhanced by the special high visibility 2 tone safety color scheme in durable powder coat paint.
The reinforced, fully welded steel chassis is durable yet light.
The high efficiency cast-pump jack has a one year manufacturer's limited warranty.
Heavy duty iron steer wheels deliver superior durability.
Heavy duty cast iron tow bars withstand high pulling stresses.
Multiple grease fittings at pivoting and wear points make maintenance easy and deliver long component life.
The high strength cushioned steel loop handle has a cast iron control lever with lift, neutral, and lowering positions.
The neutral position eliminates premature wear on the hydraulic components in the jack.
The handle automatically returns to vertical upon release.
Fork tip entry wheels give smooth, easy pallet entry when handling fragile loads and are protected by built-in skid plates for greater durability and longer life.
Hydraulic hand pallet truck . Easy roll pivot wheel tires, urethane load rollers, and guide wheels are durable and easily replaceable.
Square section connecting rods have better bending resistance for increased durability in demanding applications.
