Ltmg 3000kg 3 Ton Diesel Forklift with Paper Roll Clamp

XIAMEN LTMG CO., LTD.
  • Cab Location：Not Adjustable
  • Type：Diesel Forklift
  • Power：Diesel Engine
  • Load Capacity：1T - 5T
  • Fuel：Diesel
  • Load center：500mm

Base Info

  • Model NO.：FD30
  • Lift height：3000mm
  • Condition：New
  • Engine：Isuzu C240
  • Fork Size：1070mm*125mm*45mm
  • Weight：4300kg
  • Wheelbase：1700mm
  • Load Centrer：500mm
  • Ground Clearence：120mm
  • Color：Decided by Buyer
  • Fuel Tank：70L
  • Optional：Side Shift Mast Height, Mast Stage, etc
  • Warranty：1 Year,2000 Working Hours
  • Transport Package：Container
  • Specification：2660mm*1225mm*2115mm
  • Trademark：LTMG
  • Origin：China
  • HS Code：8427209000
  • Production Capacity：1000set,Years

Description

SpeedMax Travelling full/no loadKm/h18/19.5Lifting full/no loadmm/s450/500Lowering full/no loadmm/s450/450Max. Drawbar pullFull/no loadKg1550/1000Gradeability at 1.6km/hFull load%25Truck weight  Kg4290Weight distributionFull load front/rearKg6420/870No load front/rearKg1680/2610TiresNumberFront/rear2/2ModelFront axle28X9-15-12PRRear axle6.50-10-10PRWheelbase  mm1700TreadFront/rearmm1000/970Ground clearenceAt lowest point(mast)mm120Framemm135BrakeService brake  Hydraulic-foot pedaParking brake  Mechanical-hand leverBatteryVoltage/capacityV/AH12/80EngineModel  ISUZU C240Rated powerKw/rpm52/2500Rated torqueN-m/rpm15.7/1800Number of cylinders  4Fuel tank capacity  L70TransmissionShift stage(front/rear-type)  1-1 power shift T/MOperating pressureHydraulic system pressureKg/cm²180  Product Features

Standard Configuration of 3 ton forklift

1. Chinese Engine
2. Hydraulic / Automatic Transmission
3. Duplex Mast Lifting Height 3000mm
4. Pneumatic Tires
5.1070mm Fork Length

Optional Equipments

1. Janpan engine ISUZU or Mitsubishi
2. Lifting Height 3m-7m
3. Full-free Duplex or Triplex Mast
4. Side Shift, Solid Tires, Suspension Seat, fork positiner.
5. Driver's Cabin, Customized Color, air-conditioner, etc.
6. Attachments: Paper roll clamp, bale clamp, rotating clamp ect.

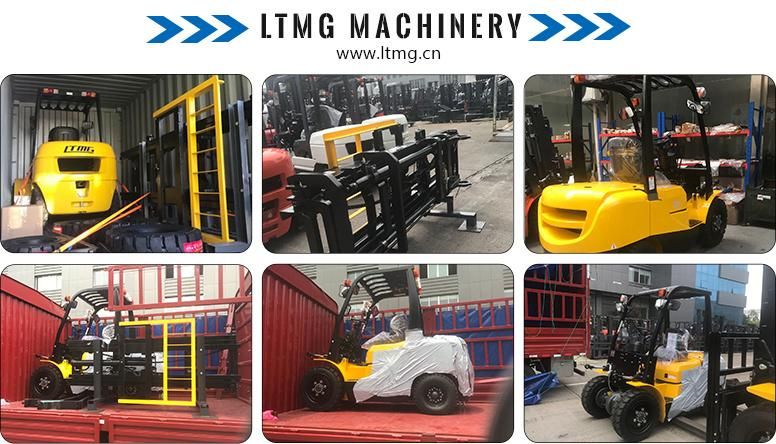

Packiging&shipping

Ltmg 3000kg 3 Ton Diesel Forklift with Paper Roll Clamp

Ltmg 3000kg 3 Ton Diesel Forklift with Paper Roll Clamp
Ltmg 3000kg 3 Ton Diesel Forklift with Paper Roll Clamp

After sales service

LTMG always treat after-sale service as important as sale. Nowadays 16 agents around the world can supply LTMG professional after-sale service.

All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.

Detail clauses and policies please check our website and product certificate.
