• Model NO.：TB
• Lift height：1600~4500mm
• Condition：New
• Model：Tb
• Operate Type：Battery
• Wheelbase：1390mm
• Wheels Number,Front/Back(X=Driven)：4,1X+2
• Fork Size：1150,190,56mm
• Turning Radius：2101,1755 [2]mm
• Travel Speeds：5.0km,6.0h
• Lift Speeds：125mm,175s
• Lowering Speeds：115mm,135s
• Max. Climbing Ability：≤8,≤10
• Battery Voltage/Rated Capacity：24V,210ah
• Service Brake：Regenerating
• Height of Mast,Lowered：2025mm
• Fork Height,Lowered：90mm
• Ground Clearance,Mast：30mm
• Transport Package：International Packing Way with Thick Plastic Film.
• Specification：2533*850*2025mm
• Trademark：NOELIFT
• Origin：China
• HS Code：84271020
• Production Capacity：500 Pieces,Month

Basic Info.

Model NO. TB Lift height 1600~4500mm Condition New Model Tb Operate Type Battery Wheelbase 1390mm Wheels Number,Front/Back(X=Driven) 4/1X+2 Fork Size 1150/190/56mm Turning Radius 2101/1755 [2]mm Travel Speeds 5.0km/6.0h Lift Speeds 125mm/175s Lowering Speeds 115mm/135s Max. Climbing Ability ≤8/≤10 Battery Voltage/Rated Capacity 24V/210ah Service Brake Regenerating Height of Mast,Lowered 2025mm Fork Height,Lowered 90mm Ground Clearance,Mast 30mm Transport Package International Packing Way with Thick Plastic Film. Specification 2533*850*2025mm Trademark NOELIFT Origin China HS Code 84271020 Production Capacity 500 Pieces/Month

Product Description

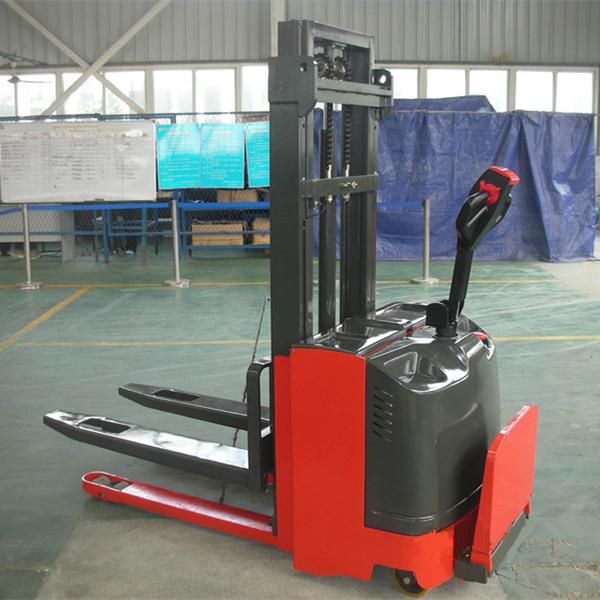

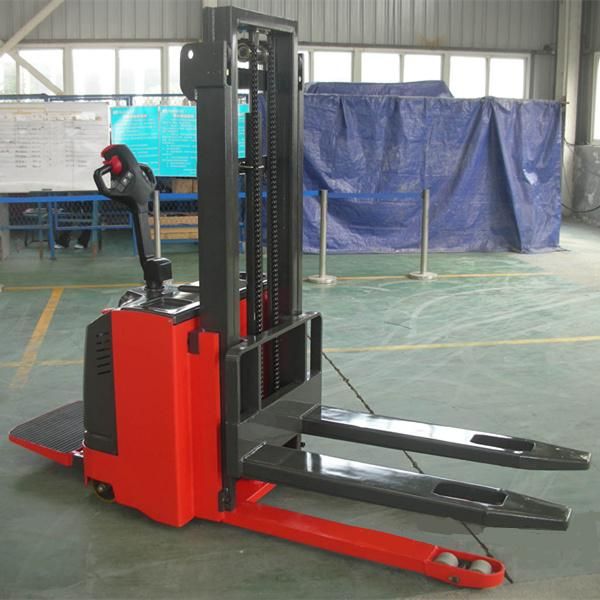

1 ton 1.5 ton 2 ton common type electric stacker

TB series steering wheel pallet stacker, rated load capacity:1000-2500kg, Max. lift height: 4500mm, used for single face pallet;

1. With EPS steering system, easier to operation;

2. Electronic type braking;

3. To use intelligent charger,auto analysis the residual energy and optimizing the charging process, without manual operation and extend the battery working life effectively;

4. Speed limited for high position, to aviod the possibility of products' overturning when high speed in high position;

5. High strength overhead guard to protect the operator.







details













our company

NOELIFT EQUIPMENT CO.,LTD, as one of the professional material handling equipment manufacturer, we provide whole product range including diesel/gasoline/LPG forklift truck with load capacities of 1ton to 10tons and electric/warehouse trucks, which including 1-3.5tons electric forklift trucks, 1-2.5tons electric reach trucks, electric stackers, electric pallet trucks, hand-hydraulic pallet trucks, semi-electric stackers, electric tow tractors, etc. The full range encompassess close to 100 different models.
