• Model NO.：NEW-TK
• Fuel：Electric
• Load center：500mm
• Lift height：3000~5000mm
• Condition：New
• Fork Length：1070mm
• Max. Lifting Height: 6000mm：6000mm
• Fork Width：125mm
• Min. Lifting Height：3000mm
• Operator Type：Drive in Seat
• Driving Brake：Hydraumatic Pedal
• Steering Type：Hydraulic,EPS
• Max Grade Ability：10,12%
• Controller：Curtis
• Lift Motor Power：7.5kw
• Drive Motor Power：6.8kw
• Turning Radius：2300mm
• Aisle Width(1000×1200)：3720mm
• Wheelbase：1700mm
• Transport Package：International Packing Way with Thick Plastic Film
• Specification：Rated capacity: 3000kg
• Trademark：Noelift
• Origin：China
• HS Code：84271090
• Production Capacity：500,Year

Basic Info.

Model NO. NEW-TK Fuel Electric Load center 500mm Lift height 3000~5000mm Condition New Fork Length 1070mm Max. Lifting Height: 6000mm 6000mm Fork Width 125mm Min. Lifting Height 3000mm Operator Type Drive in Seat Driving Brake Hydraumatic Pedal Steering Type Hydraulic/EPS Max Grade Ability 10/12% Controller Curtis Lift Motor Power 7.5kw Drive Motor Power 6.8kw Turning Radius 2300mm Aisle Width(1000×1200) 3720mm Wheelbase 1700mm Transport Package International Packing Way with Thick Plastic Film Specification Rated capacity: 3000kg Trademark Noelift Origin China HS Code 84271090 Production Capacity 500/Year

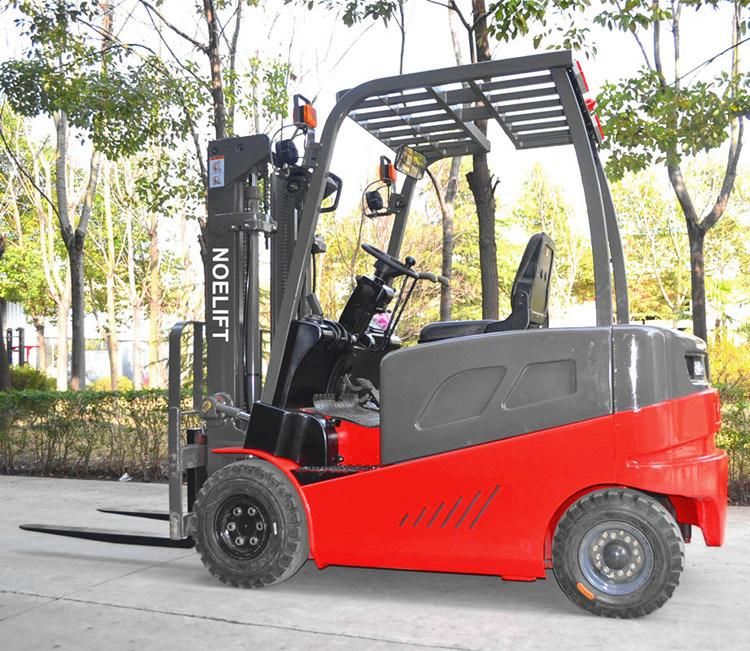

Product Description

Products description









Main Features

Rated load capacity: 1500-3000kg, lift height: 3000-6000mm, stable performance, comfortable operation, the advantages are as follows:
1. Initiative shocking proof system, to make sure the forklift more safe and stability;
2. Strenghen mast with high safety factor;
3. Durability: all electric connector with water-proof design;
4. The advanced safe system for mast pipeline, to aviod the out of control for mast when hydraulic system have fault, to ensure the good safe;
5. To use MOSFET controller, it's can provide the smooth and cyclic regenerative braking, to extend the working life of motor and battery;
Certifications

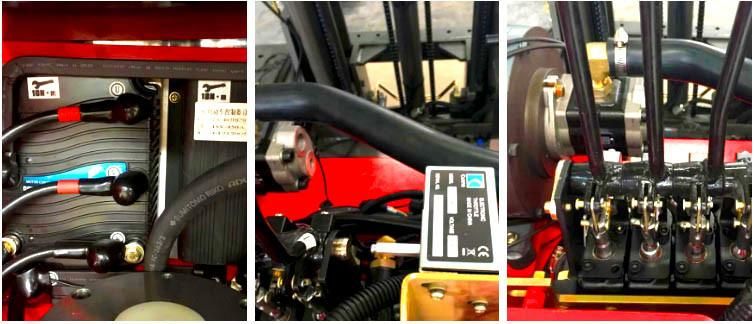

Detailed Images


Our service
NOELIFT service cover the whole life of the machine you purchase.When you first inquire our machine,we provide the full data and information to make sure this is the best choice for you.When the machine deliver to you,we will have professional maintenance advice and service manual to help you keep the machine under very good operation condition.Even if the machine have problem,we have a full time service system to make sure no deplay happen and minimize the downtime and maximize the machine efficiency.

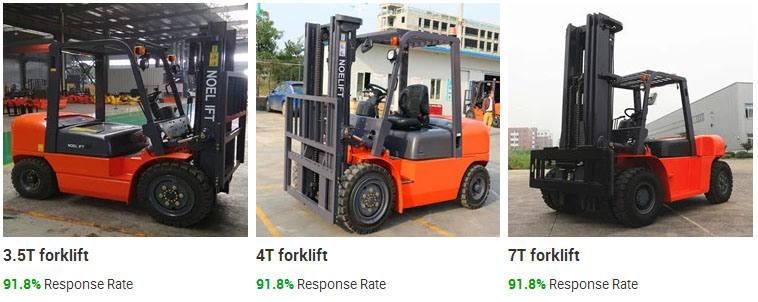

Related Products
