• Model NO.：FRB15
• Fuel：Electric
• Load center：500mm
• Lift height：3000~5000mm
• Condition：New
• Certificate：ISO CE
• Color：Customize
• Max.Lifting Height：4000mm
• Fork Dimensions：1070mm*100mm*35mm
• Battery：48V,300ah
• Operator Type：Seated Type
• Fork Size：1070mm*100mm*45mm
• Power Unit：Battery
• Rated Capacity：1500kg
• Controller：Curtis
• Transport Package：Container
• Specification：2266mm*1098mm*2580mm
• Trademark：LTMG
• Origin：China
• HS Code：8427109000
• Production Capacity：1000sets,Year

Basic Info.

Model NO. FRB15 Fuel Electric Load center 500mm Lift height 3000~5000mm Condition New Certificate ISO CE Color Customize Max.Lifting Height 4000mm Fork Dimensions 1070mm*100mm*35mm Battery 48V/300ah Operator Type Seated Type Fork Size 1070mm*100mm*45mm Power Unit Battery Rated Capacity 1500kg Controller Curtis Transport Package Container Specification 2266mm*1098mm*2580mm Trademark LTMG Origin China HS Code 8427109000 Production Capacity 1000sets/Year

Product Description

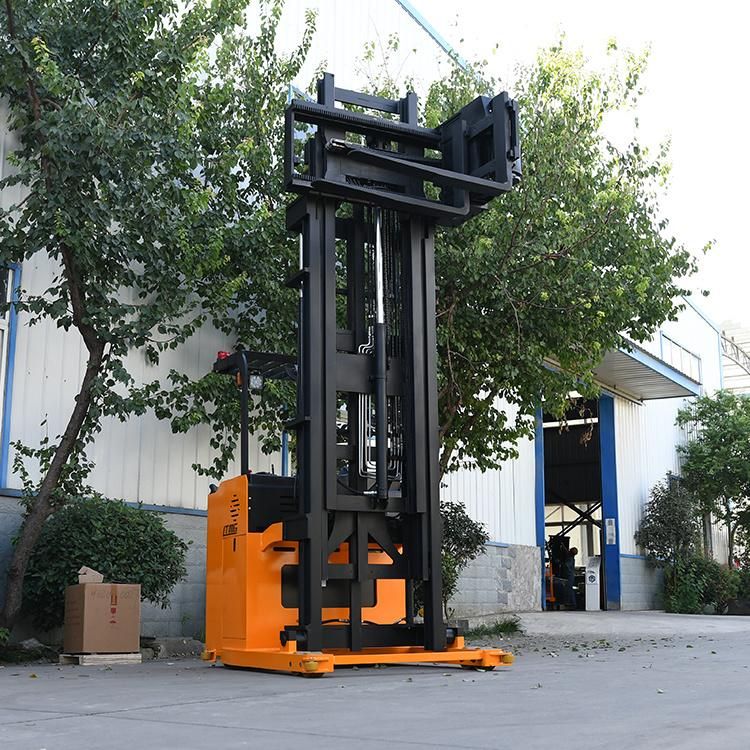

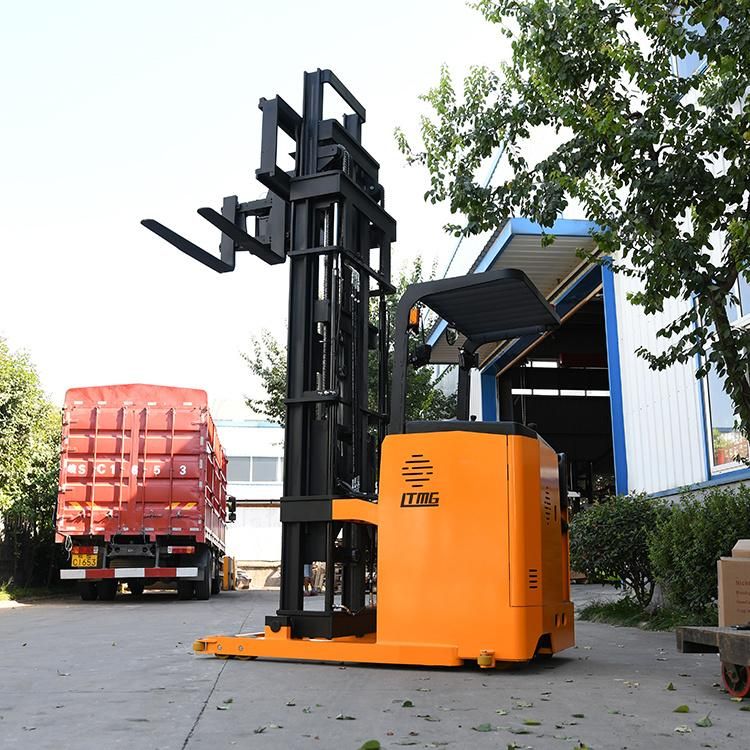

Ltmg stand on Reach Forklift 1 ton 1.5 ton 2 ton 3-Ways 4 Directions Electric Reach Truck with CE ISO

Model No.	FRB15
Rated Capacity (KG)	1500
Operate Type	stand on
Max. Lifting Height (MM)	4000
Min. Turning Radius (MM)	1625
Min. Stacking Aisle---mm (1000*1000 Pallet)	2622
Max Travel Speed km/h-laden/unladen	7.5/8.5
Load center MM	500
Fork Dimensions-L/W/T---mm---8.	1070*100*35
Max. Gradeability ---%	10
Lifting Speed (MM/S)-laden/unladen	117/243
Overall Length (MM)	2266
Overall Width (MM)	1098
Height-Overhead guard--mm	2320
Height---Mast Lowered(MM)	2580
Height-Mast Extended w/ Load-Backrest -mm	4885
Height--Free Lift --mm	100
Tilt Angle----Upward/Downward--deg.	3/5
Fork Spread Range (MM)	220-662
Reach Stroke	560
Min Ground Clearance--mm	80
Wheel Type	Polyurethane Solid Tyre
Driving Wheel (MM)	Φ343×108
Balance Wheel (MM)	Φ180×76
Front Wheel (MM)	Φ267×114
Battery V/AH- "TONGBA"BRAND	48V /300 AH
Service Brake	MECH.
Parking Brake	MECH.
Charger-Intelligent	48V/40A
Driving Motor (KW)	5.5 (AC)
Lifting Motor (KW)	6.3

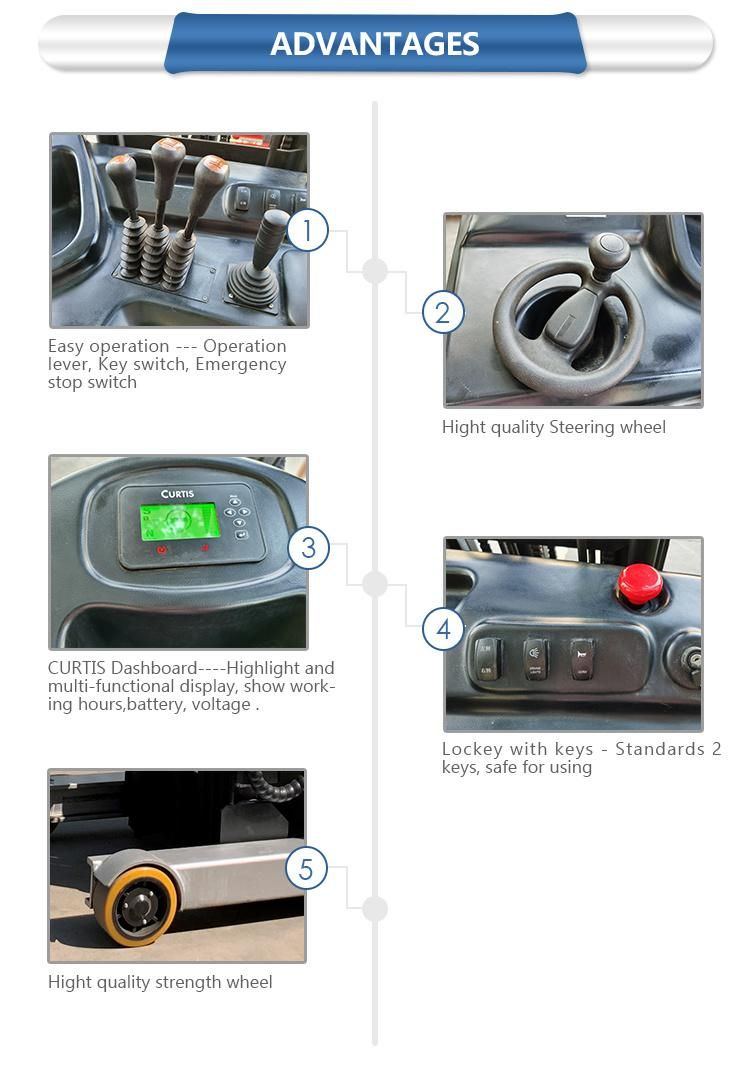

Product Features

1. Safety Device for neutral position to increase the safety of forklift;

2. High Strength frame to protect the operator;

3. Oil-way stop Valve,to protect the operator and goods;

4. AC electric controller with multiple automatic safety protection settings, to reduce the operation accident by misoperation;

5. Inching capacity, the forklift can finish the extremely adjustment during moving;

6. With Imported AC motor without Carbon brush, dustproof, damp proofing,long working life, lower use-cost, controlled voltage/frequency;

7. To use water-proof and dust-proof design for all circuit, to aviod the shortcircuiting happened;

8. To use intelligent charger, auto analysis the residual energy and optimizing the charging process, without manual operation and extend the battery working life effectivly;

9. High Speed Limited, the forklift will reduce the lift speed when lift to a high position;

10. High Strength overhead guard to protect the operator.
