• Model NO.：FRB20
• Fuel：Electric
• Load center：500mm
• Lift height：3000~5000mm
• Condition：New
• Certificate：ISO CE
• Color：Customize
• Front Overhang：285mm
• Service Weight(Incl. Battery)：7460kg
• Overhead Guard Height：2250mm
• Operator Type：Seated Type
• Overall Length：3830mm
• Fork Dimentions：1100,100,50
• Rated Capacity：2000kg
• Transport Package：Container
• Specification：2730mm*3830mm*980mm
• Trademark：LTMG
• Origin：China
• HS Code：8427109000
• Production Capacity：1000sets,Year

Basic Info.

Model NO. FRB20 Fuel Electric Load center 500mm Lift height 3000~5000mm Condition New Certificate ISO CE Color Customize Front Overhang 285mm Service Weight(Incl. Battery) 7460kg Overhead Guard Height 2250mm Operator Type Seated Type Overall Length 3830mm Fork Dimentions 1100/100/50 Rated Capacity 2000kg Transport Package Container Specification 2730mm*3830mm*980mm Trademark LTMG Origin China HS Code 8427109000 Production Capacity 1000sets/Year

Product Description

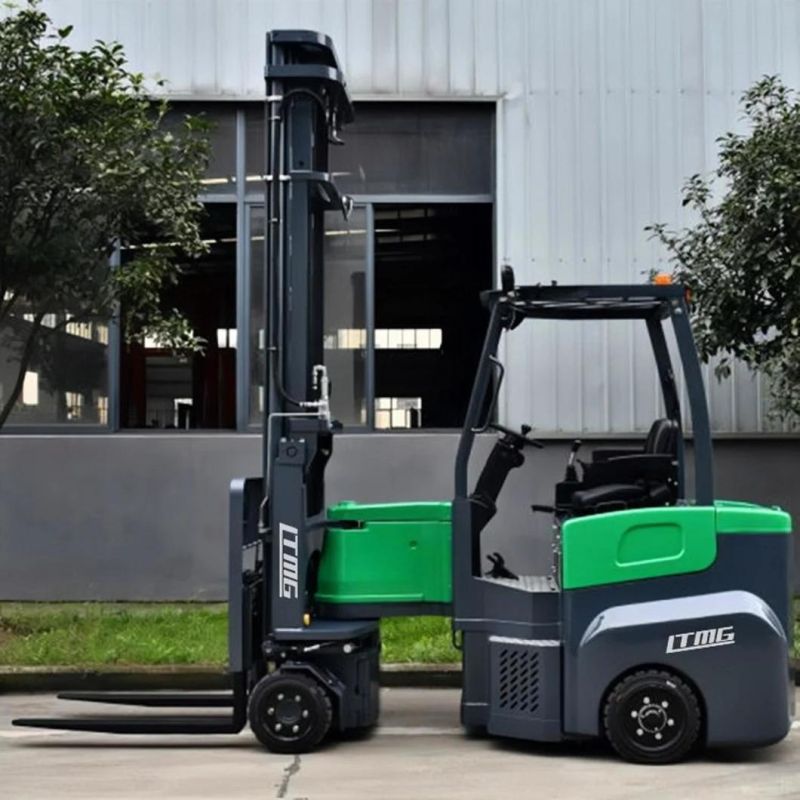

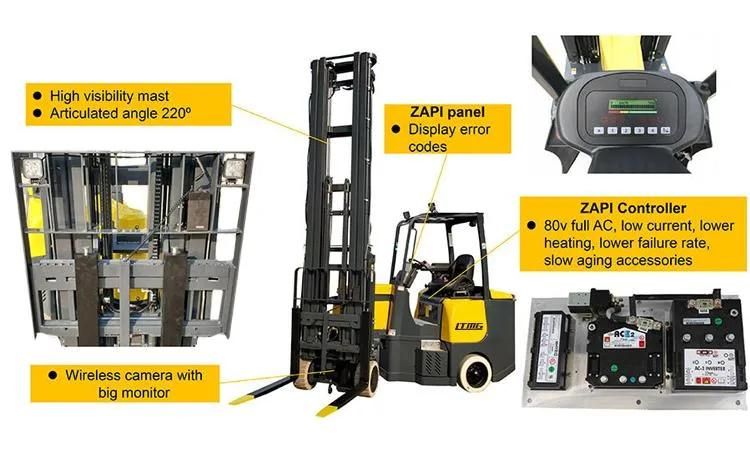

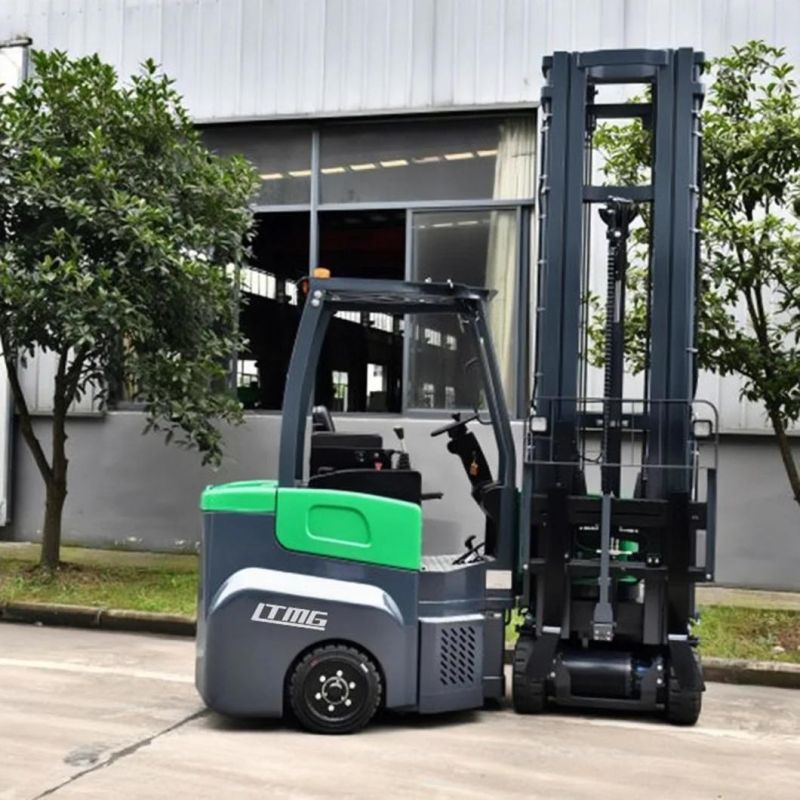

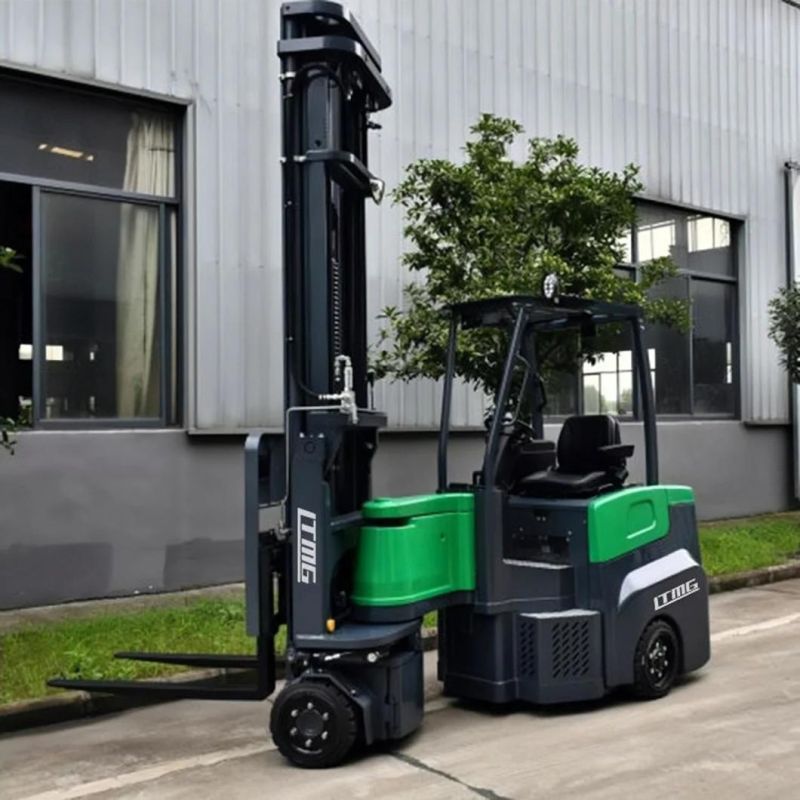

              LTMG 1.5ton 2 ton VNA electric  forklift

Model		FRB20
Power Type		battery
Operation Type		Seated
Rated Capacity	Q(kg)	2000
Load Center	C(mm)	600
Front Overhang	x(mm)	285
Wheelbase	y(mm)	1720
Service weight(incl. battery)	kg	7460
Load axle,drive side/load side	kg	5290/4250
unload axle, drive side/load side	kg	2250/5210
Wheel type,drive side/load side		Solid rubber
Tyre size,load side	mm	Φ457×178
Tyre size, drive side	mm	Φ415×178
Wheel quantity,front/rear(X= drive)		2x/2
Wheel tread,drive side	b10(mm)	800
Wheel tread,load side	b11(mm)	1090
Tilt of fork, Forward/Backward	α/β(°)	1/3
Height of mast closed	h1(mm)	according to mast sheet
Full free lifting height	h2(mm)	according to mast sheet
Rated cpacity Lifting height	h3(mm)	3300
Lifting height	h3(mm)	4600~10000
Height of mast extend	h4(mm)	according to mast sheet
overhead guard height	h6(mm)	2250
Seat height	h7(mm)	1230
overall length	L1(mm)	3830
Length to the fork face	L2(mm)	2730
overall width	b1/b2(mm)	980/1260
fork dimentions	l/e/s(mm)	1100/100/50
fork carriage width	b3(mm)	990
Width across forks	b5(mm)	250~890
side move distance	mm	±100
Ground clearance of mast	m1(mm)	70
Ground clearance of body	m2(mm)	100
min Stacking aisle width(pallet800x1200 depth)	Ast(mm)	1900
efficiency  aisle≥ (pallet to pallet distance)	mm	2000
rack to rack distance ≥	mm	2200
min Stacking main aisle width(pallet 800x1200 depth )	mm	2650
Turning radius	Wa(mm)	2200
Drive speed,load/unload	km/h	13
Lift speed.load/unload	mm/s	400/420
Lower speed, load/unload	mm/s	280/200
Max. climbing ability	%(tanθ )	12/13
Brake type		mechanical hydraulic
Driving motor power (S2-60min)	kw	AC18.5
Lifting motor power (S3-15%)	kw	AC15
Battery voltage/capacity	V/Ah	48/900
Battery weight	kg	1400




Shipping&packging

After sales service

LTMG always treat after-sale service more important than sale.

Nowadays more than 30 agents around the world can supply LTMG professional after-sale
service.

All the product of LTMG supplied with one year or 2000 working hours (which occurs first)
period quality warranty.

Detail clauses and policies please check our website and product certificate.

FAQ

1.What's the Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System. All of our products with CE certificate.

 2.Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements. However, All the customizing and
refit should be implemented safely and scientifically. The colors can be painted as client's need.

3.How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy
for each model.

4.Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.

 5.What's the payment terms do you accept?
On T/T term 30% down payment is required in advance,and 70% balance shall be settled before shipment.

 6.What logistics ways we can work for shipment ?
We can ship construction machinery by various transportation tools.
1.For 90% of our shipment,we will go by sea,to all main continents such as South America,Middle East,
Africa,Oceania and Europe etc,either by container or Bulk shipment.
2.For neighborhood countries of China,such as Russia,Mongolia, Kazakhstan,Uzbekistan etc., we can
ship trucks by railway.
3.For light spare parts in urgent demand,we can ship it by international courier service,such as DHL,TNT,
UPS,or Fedex.

7.Delivery time:
Standard configuration products are always in stock. The production period of Customizing products is 30 days.
