• Model NO.：HH20
• Condition：New
• Configuration：According to Your Request
• Fork Size：1070X120X40
• Rated Capacity：2000kg
• Turning Radius：2170
• Gearbox Change Speed Type：Hydraulic,Mechanical
• Power Type：Diesel
• Free Lift Height：140mm
• Wheel Base：1650mm
• Max.Gradeability：21
• Self Weight：3550kg
• Transport Package：in Container
• Specification：CE, ISO
• Trademark：CHHGC
• Origin：Henan, China
• HS Code：84272
• Production Capacity：5000PCS,Year

GeneralManufacturer CHHGCModel HH20HH25HH30HH35Rated capacitykg2000250030003500Load centermm500Gearbox change speed type Hydraulic/MechanicalPower type DieselTire typeFront/ Rear PneumaticWheelsFront/ Rear 2/2DimensionsLift heightmm3000Free lift heightmm140145Fork sizeL*W*Tmm1070x120x401070x120x451070x125x451070x130x45Mast tilt angleFwd/Bwddeg6/12Overall length (without fork)mm2510258027202775Overall widthmm11501225Mast height fork loweredmm205020802230Overall height fork raisedmm40404272Overall height (overhead guard)mm20602090Turning radius (outside)mm2170224024602540Load distance (centerline of front axle to front face of forks)mm484489494500Travel speed (full load /no load )(Hydraulic)km/h17/1918/19 Mechanical)shift 1km/h8.5/98.8/9  shift 2km/h18.5/1918.5/20Wheel basemm16501700TreadFrontmm9701000 Rearmm970Min. Under-clearance (full load / no load )Bottom of mastmm85/105110/135 Bottom of framemm115/120135/140PerformanceSpeedTravel speedWith loadkm/h1718  Without loadkm/h19.519.5 Lifting speedWith loadmm/sec470430400  Without loadmm/sec600500450Max. Drawbar pullWith/ without loadkg1250/8501250/8501100/10001304/1190   1650/8501650/8501350/10001696/1190Max.GradeabilityWith/ without load% (fan)20/2017/1815/1815/18   21/2218/1919/2015/18Max.Gradeability %2015WeightSelf weightkg3550388043804750Weight distributionWith loadFrontkg4730548064557320  Rearkg590700825930 Without loadFrontkg1520146517202040  Rearkg1800221525602710TyreTyreSizeFront 7.00-12-12PR28x9-12-12PR28x9-15-14PR  Rear 6.00-9-10PR6.50-10-10PRBrakeBrakeService Hydraulic-Foot pedal Parking Mechanical-Hand leverTransmissionBatteryVoltage /CapacityV/AH12/100Internal combustion engineModel for option 1. XINCHANG ; 2. ISUZU ;3. YANMAR; 4. DEUTZTransmissionType Hydraulic/Mechanical shift (Fwd/Rvs) 1/1 (2/2) Work pressureMpa17.5

Products series

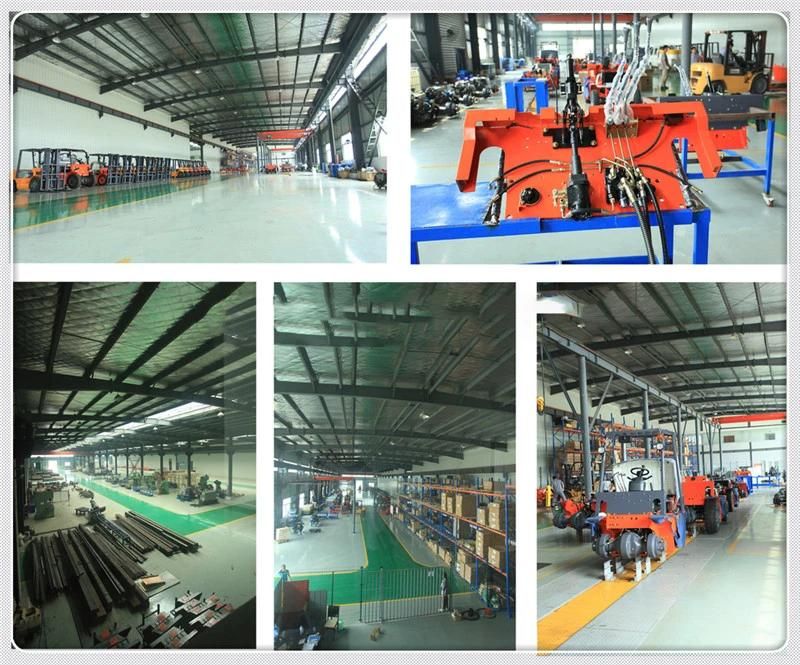

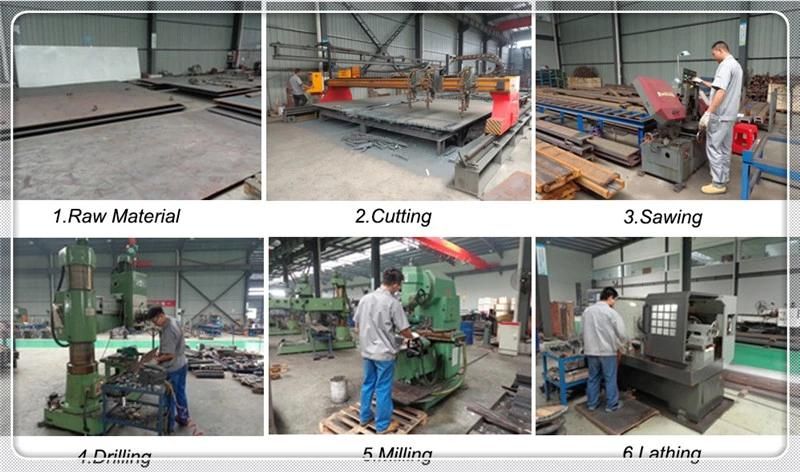

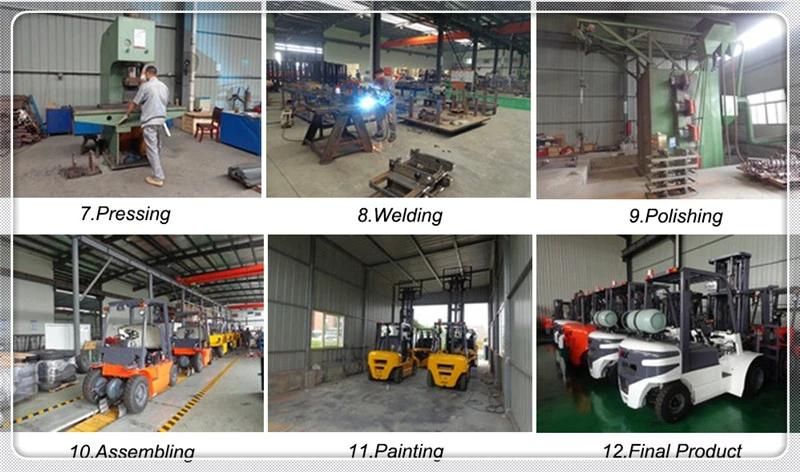

Production Workshop


Certificate


Business Partners

FAQ

Q1. How to ship the forklift?
A:    By container, bulk ship, RORO.

Q2. Do you have different forklift?
A:   Yes,we supply different model forklift and exported to many countries.

Q3. What is your payment term?
A: We usually accept T/T or L/C depends on the quantity.
     T/T, deposit in advance, and balance paid before delivery from factory.

Q4. Which type forklift do you supply?
A:  We supply all kinds of forklift such as gas, petrol, diesel, electric forklift etc,.

Q5. What is your terms of delivery?
A:    FOB, CIF.

Q6. How about your delivery time?
A:   Generally, it will take 35 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q7. Do you test all your goods before delivery?
A:   Yes, we have 100% test before delivery

Q8: What can you guarantee to your business partner?
A:   Best price with good quality. We guarantee quality and after sale service to satisfy our business partners.
