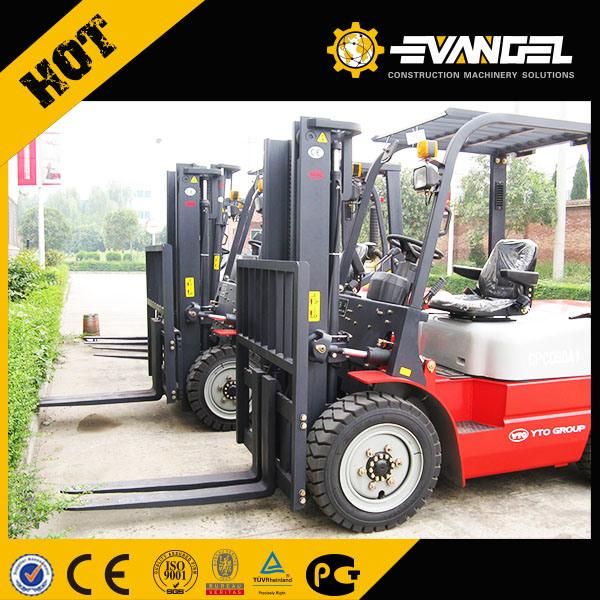

• Model NO.：CPCD30
• Condition：New
• Brand Name：Yto
• Rated Loading Capacity：3000kg
• Max. Lifting Height：6000mm
• Min. Lifting Height：3000mm
• Fork Length：1070mm
• Fork Width：125mm
• Overall Dimensions：2770mm*1225mm*2160mm
• Transport Package：Nude Package
• Specification：CE, ISO
• Trademark：YTO
• Origin：China, Anhui
• HS Code：2736404
• Production Capacity：1000

General Model  CPCD25CPCD30CPCD35Power Type DieselDieselDieselRated Capacitykg250030003500Load Centermm500500500SizeOverall max.lifting height ( with backrest)mm403042624262Max.Lifting height 300030003000Height mast retracted (upright)mm200020652180Free lift heightmm170160170Backrest height (from upper face of forks)mm99512271222Overall height (overhead guard)mm217021902190Overall length (without forks)mm3646/25763752/26823763/2693Wheel basemm160017001700Min.groud clearance under mastmm110135135Overall widthmm117012251225Lateral fork adjustment (outside of fork)mm1024/2001060/2501060/250Tread (front)mm970/9701000/9701000/970Inside turning radiusmm224024002420Outside turning radiusmm160200200Min.intersecting aislemm228023802400Tilting angles (forward/backward) 6°/12°6°/12°6°/12°Fork Sizemm1070*122*401070*125*451070*125*50Service Masskg368042704700PerformanceMax.Traveling speeds (laden/unladen)km/h18/1919/2019/19Lifting Speeds (laden/unladen)mm/s506/545465/490370/400Lowering Speeds (laden/unladen)mm/s450/550450/550350/370Max.Draw-bar pull (laden/unladen)kN18.3/13.320/15.820/16Max.Negotiable Gradient (laden/unladen)%20/2015/2020/20TyreWheel (Front/Rear) X=Driving Wheel 2X/22X/22X/2Tyre(Front/Rear) Pneumatic typePneumatic typePneumatic typeTyre size (Front) 7.00-12-12PR28x9-15-12PR28x9-15-14PRTyre size (Rear) 6.00-9-10PR6.50-10-10PR6.50-10-10PREngineInternal Combustion Engine Model C240PKJ 4JG24JG2Internal Combustion Engine Rated Output kw/rpm35.4/250044.9/245044.9/2450Internal Combustion Engine Rated TorqueNm/rpm139/1800186.3/1600~1800186.3/1600~1800Internal Combustion Engine Fuel Tank CapacityL6060
