• Model NO.：TF30
• Lift height：>5000mm
• Condition：New

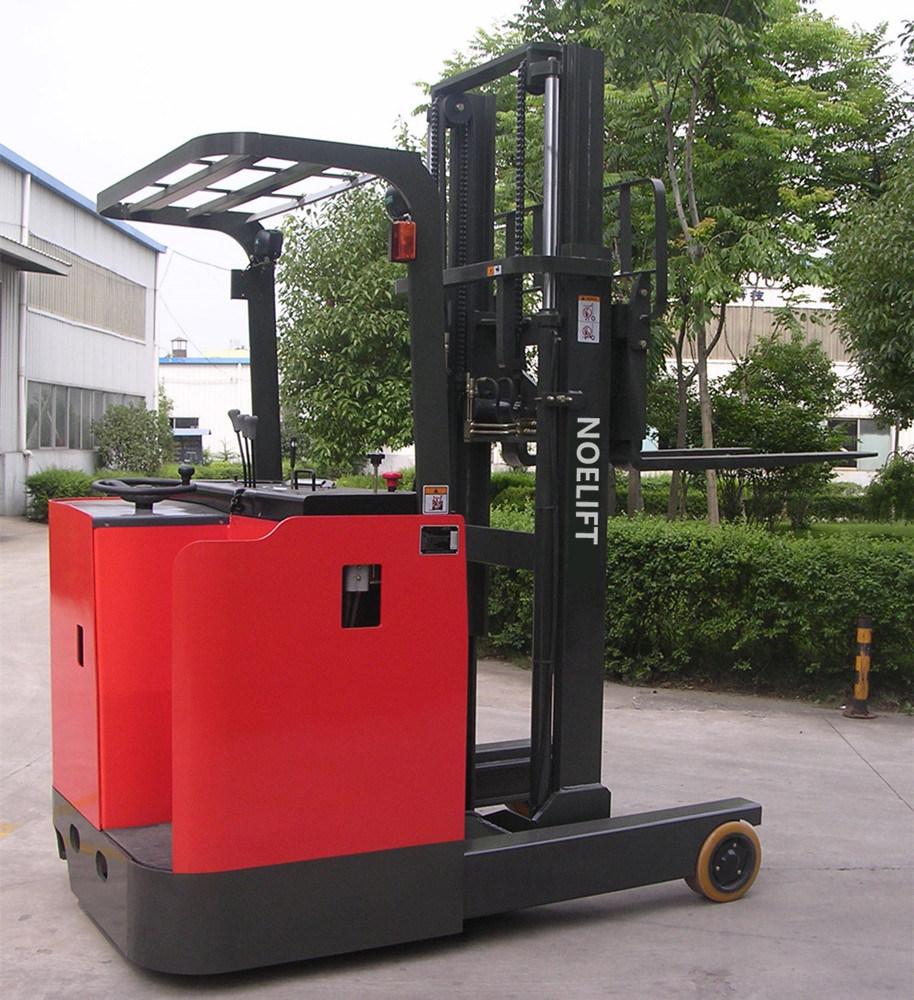

• Product Name：Stand Drive Electric Reach Truck
• Rated Load Capacity：1500kg,2000kg
• Operation：Stand on Drive
• Controller：USA Curtis
• Motor：AC
• Battery：48V
• Charger：Included
• Max.Lifting Height：11m
• Wheel：PU
• Fork Length：1070mm,1150mm,1220mm, etc
• Transport Package：Standard Packing
• Specification：2260*1080*2260MM
• Trademark：Noelift
• Origin：China
• HS Code：842710
• Production Capacity：200PCS,Year

Standard    1.1Brand NoeliftNoelift1.2Model TFZ16-30TFZ20-301.3Power Type BatteryBattery1.4Operation Type SeatedSeated1.5Rated CapacityQ(kg)160020001.6Load CenterC(mm)600600Tire, Rim    2.1Tyres,front/rear Solid PUSolid PU2.2Tyre size,frontmmφ280×135φ300×1202.3Tyre size,drive wheelmmφ343×108φ343×1202.4Tyre size,balance wheelmm//2.5Tyres No. front/rear (X=drive) 2 / 1X2 / 1XDimension    3.1Tilt of fork forward/backwardα/β(°)3/53/53.2Lift heighth1(mm)300030003.3Free lift heighth2(mm)//3.4Height-Mast  Loweredh3(mm)207521753.5Height-Mast extended w/ backresth4(mm)464247423.6Height-Overhead guardh5(mm)220622363.7Height of legsh6(mm)2382753.8Height of first pedalh7(mm)3463763.9Height of second pedalh8(mm)6136433.10Height of Seath9(mm)103310633.11Height-From second pedal to overhead guardh10(mm)151315133.12Ground clearance of legm1(mm)701003.13Ground clearance of bottomm2(mm)50803.14Min. ground clearance of mastm3(mm)75753.15Overall Length (incl. fork)L1(mm)234024273.16Overall Length (without fork)L2(mm)182519343.17Reach StrokeL3(mm)6106173.18Front Overhangx(mm)2152003.19Wheelbasey(mm)142615253.20Overall Widthb1/b2(mm)12701270/12903.21Tread front/rearb3/b4(mm)1134/01170/03.22Inner distance between legsb5(mm)8948903.23Distance between fork-armsb6(mm)200-680200-6803.24Fork DimensionsL/e/s(mm)1070×100×351070×100×453.25Aisle width for pallet 1200*800 crosswaysAst1(mm)274328433.26Aisle with for pallet 1000*1200 crosswaysAst2(mm)269628003.27Turning radiusWa(mm)16651765Function    4.1Travel Speed ,laden/unladenkm/h8.5/108.5/104.2Lift Speed ,laden/unladenmm/s210/340210/3404.3Lowering speed,laden/unladenmm/s300/300300/3004.4Max. Gradeability,laden/unladen%≤10≤10Power    5.1Type of Drive Motor ACAC5.2Drive Motorkw5.55.55.3Type of Lift motor ACAC5.4Lift motorkw8.68.65.5Battery voltage/capacityV/Ah48/42048/560Weight    6.1Battery weightkg7609206.2Service weight(incl. battery)kg30183258Steering,Braking    7.1Steering type hydraulichydraulic7.2Parking Brake type Drum BrakeDrum Brake7.3Parking Operation type Pedal BrakePedal Brake7.4Service Brake type Hand BrakeHand Brake

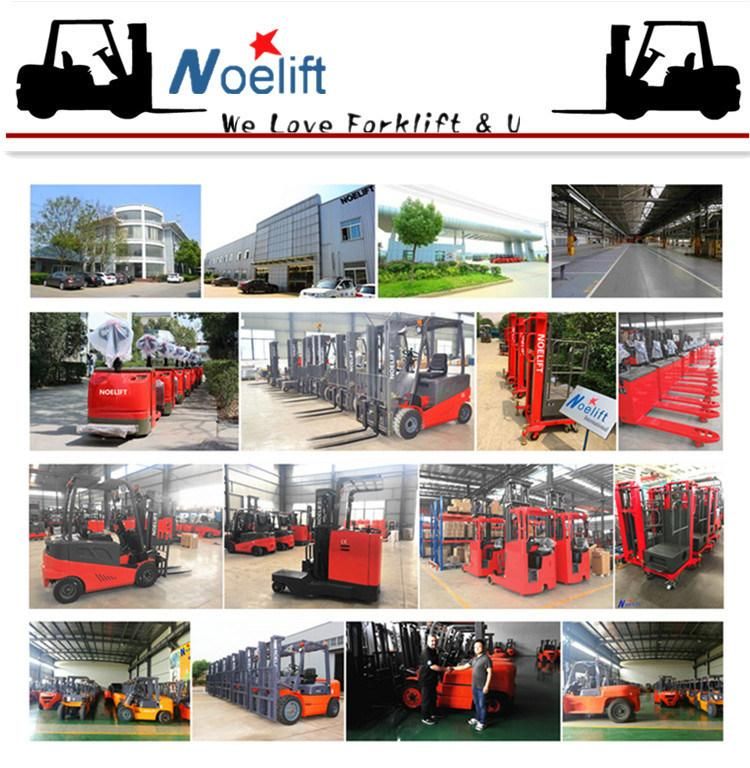

OUR FACTORY


our service

1. OEM Manufacturing welcome: Product, Package...
2. Custoner order
3. We will reply you for your inquiry in 12 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the
    goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer
    the solve way for you..
