• Model NO.：TC10
• Lift height：>5000mm
• Condition：New
• Product Name：3 Ways Very Narrow Aisle Reach Truck (Vna)
• Rated Load Capacity：1000kg,1500kg
• Max. Lifting Height：7.5m Triple Masts
• Controller：Curtis
• Motor：AC
• Battery：48V
• Charger：with
• Drive Direction：3 Ways
• Min. Aisle Distance：1700mm
• Application：Huge Warehouse with Narrow Racks
• Transport Package：International Packing Way, Packed with Thick Plast
• Specification：2892*1450*2570mm
• Trademark：Noelift
• Origin：China
• HS Code：8427102000
• Production Capacity：10000

Description
Model No.

TC10-75

Rated Capacity (KG)

1000kg at 6000mm,750kg at 7500mm

Load Dimensions ---mm

1250*1250

Operate Type

Stand-on

Max. Lifting Height (MM)

7500

Min. Turning Radius (MM)

1880

Min. Stacking Aisle ---mm (1000*1000 Pallet)

1480

Max Travel Speed km/h-laden/unladen

7.0/8.0

Load center MM

500

Fork Dimensions -L/W/T---mm

1070*100*35

Shift Stroke (1000/1100mm pallet)--mm

1060/1160

Lifting Speed (MM/S)-laden/unladen

180/315

Rotating Speed of forks---s/180o

12

Shift Speed ---mm/s

240

Overall Length (MM)

3454

Overall Width (MM)

1450

Height-Overhead guard--mm

2320

Height---Mast Lowered(MM)

3750

Height-Mast Extended w/ Load-Backrest -mm

8525

Fork Spread Range(MM)

260-820

Min Ground Clearance--mm

40

Max. Gradeability ---%

10

Wheel Type

Polyurethane Solid Tyre

Driving Wheel (MM)

Φ343×108

Balance Wheel (MM)

Φ180×76

Front Wheel (MM)

Φ140×100

Battery V/AH- Domestic BRAND

48V /300 AH

Service Brake

Mech.

Parking Brake

Mech.

Charger-Intelligent

48V /50 A

Driving Motor (KW)

5.5 (AC)

Lifting Motor (KW)

7.5

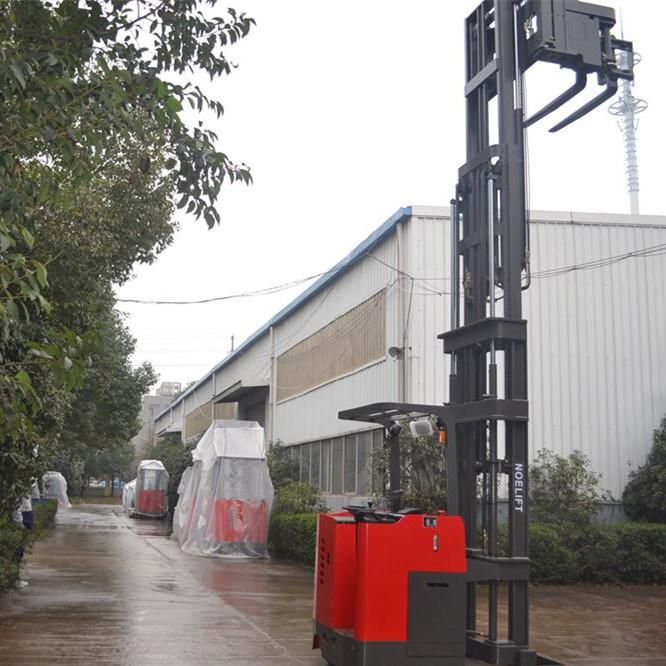

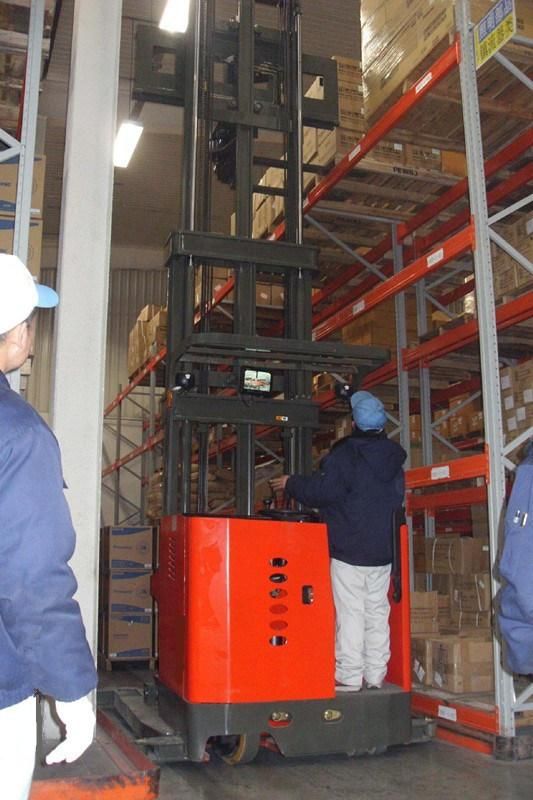

Product Picture



Company Information



Our Services

1 Promise reply in time.

2 Afford partner with 1 year free maintenance.

3 Afford OEM service.

4 Accept the feedback and improve.

5. Track the products for you once every two days, until you get the products.
