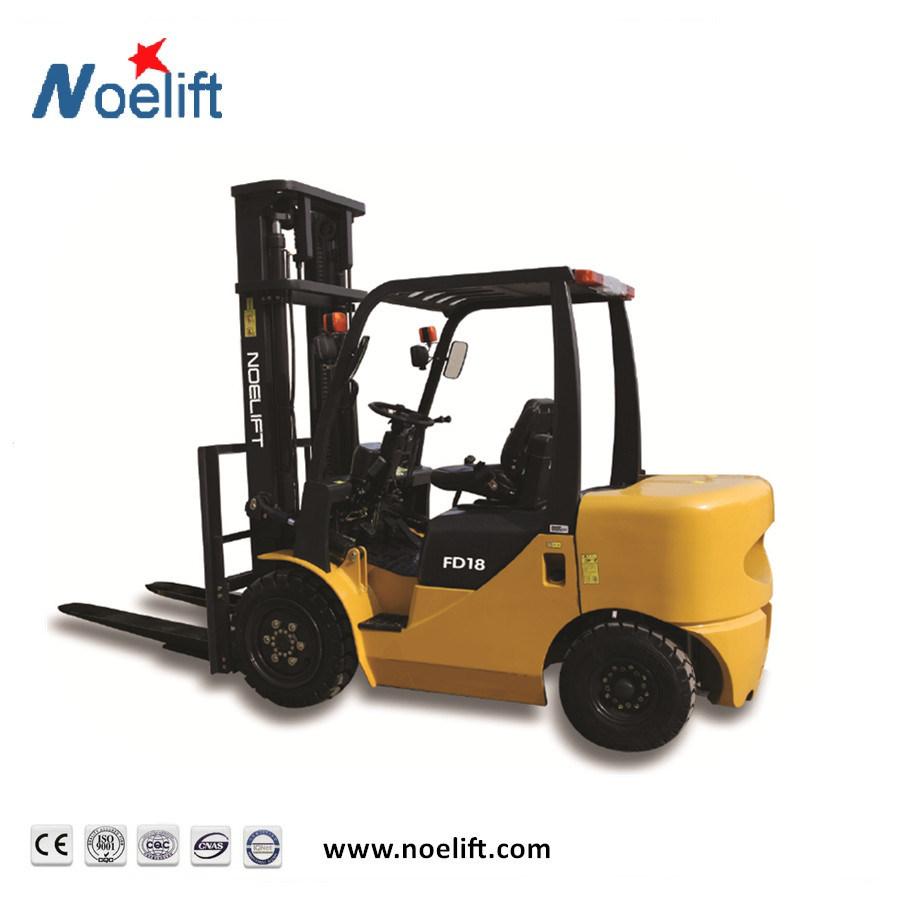

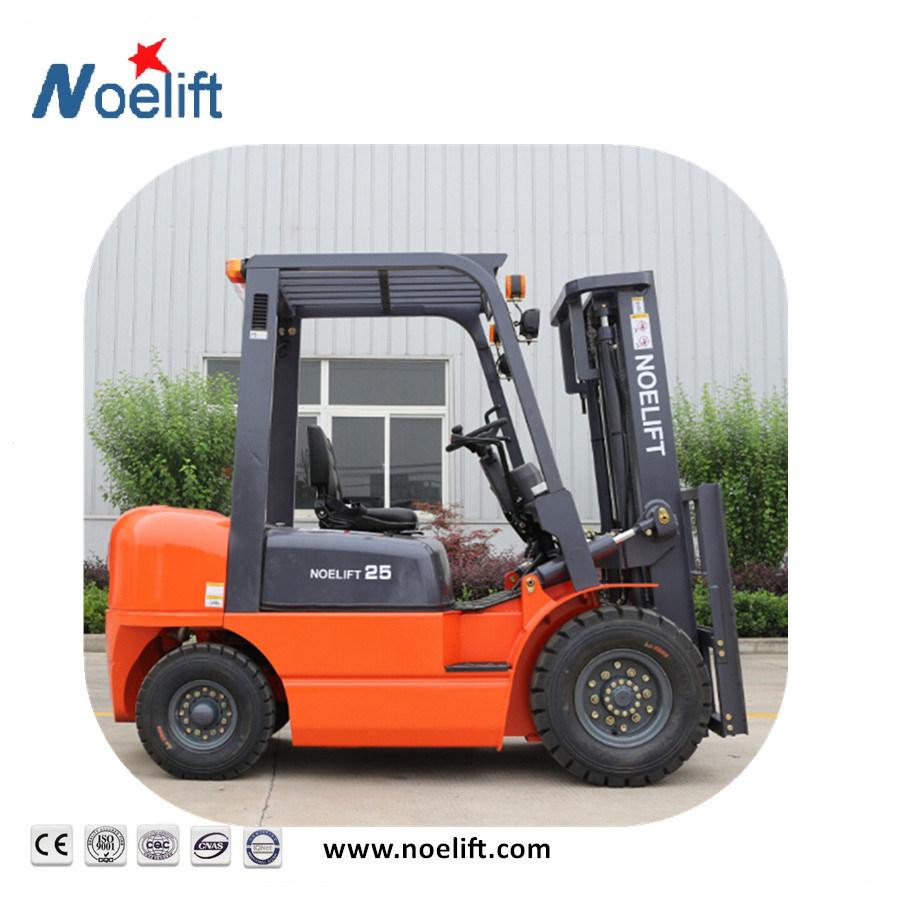

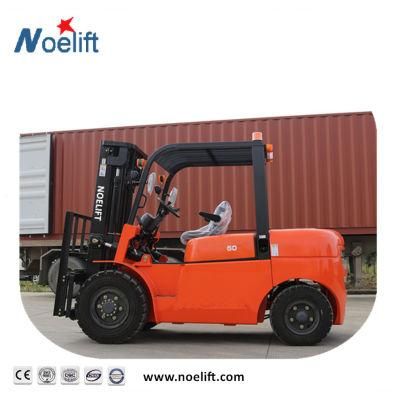

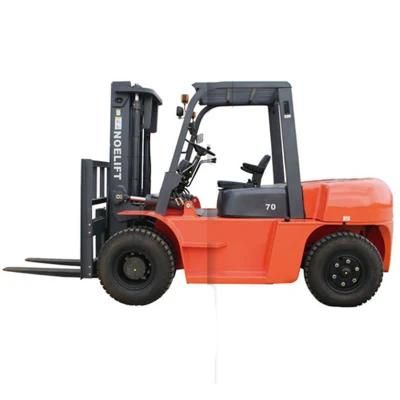

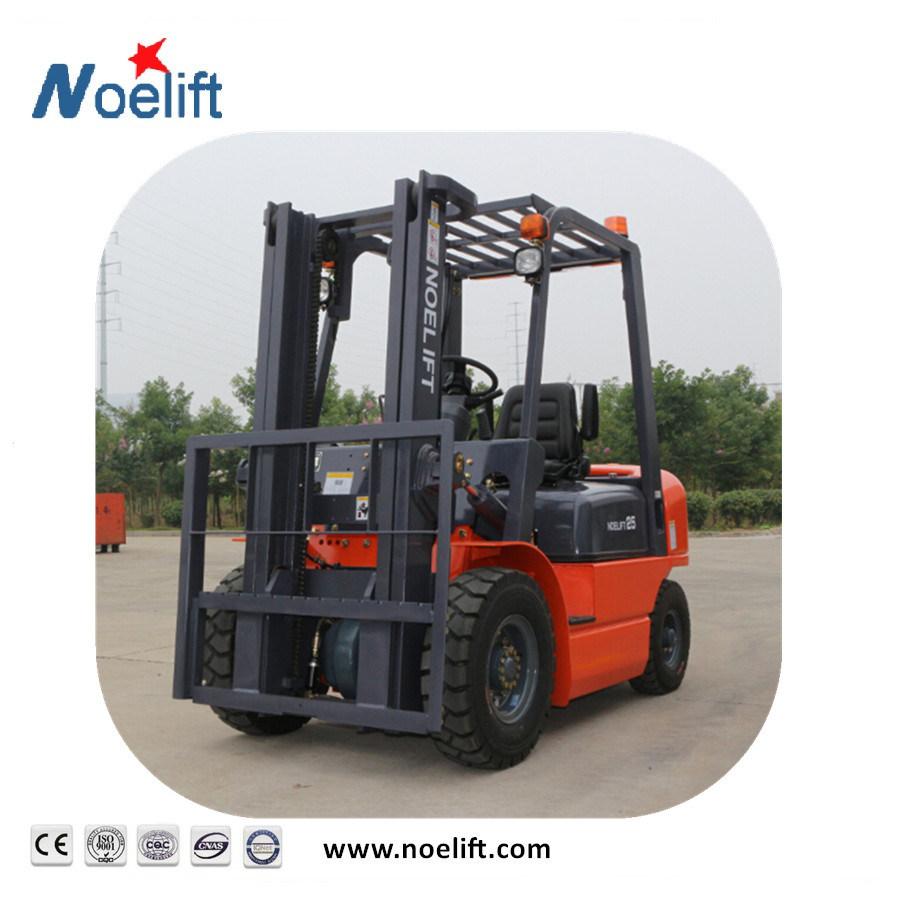

Warehouse Chinese Diesel Engine Forklift
Hangzhou Noelift Equipment Co., Ltd.- Cab Location：Adjustable
- Type：Diesel Forklift
- Power：AC Motor
- Load Capacity：1T - 5T
- Fuel：Diesel
- Load center：500mm
Base Info
- Model NO.：FD30T
- Lift height：3000-6000mm
- Condition：New
- Capacity：3ton
- Fork Length：1070mm
- Tire：Pneumatic
- Tilting Angle：6,12
- Engine：Isuzu,Xinchai
- Transport Package：Export Packing
- Specification：2682*1225*2100mm
- Trademark：Noelift
- Origin：Zhejiang, China
- HS Code：84272090
- Production Capacity：200units,Month
Description
General 1 Manufacturer Characteristic & Dimension 6 Rated Lift Height H3(mm) 3000 7 Free Lift Height H2(mm) 160 8 Fork Size (L×W×T) mm 1070×125×45 9 Mast Tilt Angle (F/R, α°/β°) deg 6°/12° 10 Fork Overhang (Wheel Center to Fork Face) X1(mm) 479 11 Rear Overhang X2(mm) 495 12 Ground Clearance (Bottom of Mast) H7(mm) 135 13 Length to Face of Fork (Without Fork) L1(mm) 2682 14 Overall Width B1(mm) 1225 15 Mast Lowered Height H1(mm) 2065 16 Mast Extended Height (With Backrest) H4(mm) 4262 17 Overhead Guard Height H5(mm) 2090 18 Turning Radius (Outside) Wa(mm) 2400 19 Working Aisle Width With Pallet (1000×1200,1200 Lengthways) Ast(mm) 4149
