• Model NO.：TK50
• Lift height：6000mm
• Condition：New
• Forklift Capacity：5000kg
• Forklift Mast：3000mm Stand Duplex Mast
• Forklift Controller：American Curtis
• Fork Size：1070mmx150mmx50mm
• Battery：80V,720ah
• Charger：with
• Tyres：Solid Tyres
• Side-Shift：for Option
• Controller：Double Front Controller Control
• Color：Customized
• Transport Package：Internation Standard Package
• Trademark：Noelift
• Origin：China
• HS Code：842709000
• Production Capacity：500

Basic Info.

Model NO. TK50 Lift height 6000mm Condition New Forklift Capacity 5000kg Forklift Mast 3000mm Stand Duplex Mast Forklift Controller American Curtis Fork Size 1070mmx150mmx50mm Battery 80V/720ah Charger with Tyres Solid Tyres Side-Shift for Option Controller Double Front Controller Control Color Customized Transport Package Internation Standard Package Trademark Noelift Origin China HS Code 842709000 Production Capacity 500

Product Description

Product Application for 4 wheel electric forklift

Rated load capacity: 1.5T-5.0T, lift height: 3000mm,
Stable performance, comfortable operation, the advantages are as follows:

1. Initiative shocking proof system, to make sure the forklift more safe and stability;
2. Strenghen mast with high safety factor;
3. Durability: all electric connector with water-proof design;
4. The advanced safe system for mast pipeline, to aviod the out of control for mast when hydraulic system have fault, to ensure the good safe;
5. To use Curtis controller, it's can provide the smooth and cyclic regenerative braking, to extend the working life of motor and battery.

Product Parameter

Model		TK50
Load capacity	Q, kg	5000
Load center	mm	500
Front overhang	x, mm	510
Axle distance	y, mm	2000
Mast tilt angle(forward/backward)	deg	6/8
Lifting height	h3,mm	3000
Free lift	h2,mm	/
Mast lowered height	h1,mm	2510
Mast extended height	h4,mm	4145
Overhead guard height	h6,mm	2320
Seat height	h7,mm	1195
Overall length	L1, mm	4020
Overall width	b1/b2,mm	1500/1340
Fork size	l/e/s,mm	1070/150/50
Fork installation class		3A
Forks carriage width	b3,mm	1380
Forks overal width	b5,mm	320-1360
Ground clearance	m1/m2,mm	120/120
Wheel type		Solid
Wheel quantity, F/R(x=driving wheel)		2x/2
Wheelbase, driving wheel	b10,mm	1183
Wheelbase, bearing wheel	b11,mm	1030
Turning radius	Wa, mm	2600
Aisle width for pallet 1000x1200mm	mm	4310
Max. walking speeds	Km/h	14/17
Lifting speeds (Loaded/ Unloaded)	mm/s	190
Grade abitity	%	6.5/12
Brake type		Hydraulic
Battery   V/Ah		80/720
Battery weight	kg	1900
Service weight (include battery)		7250

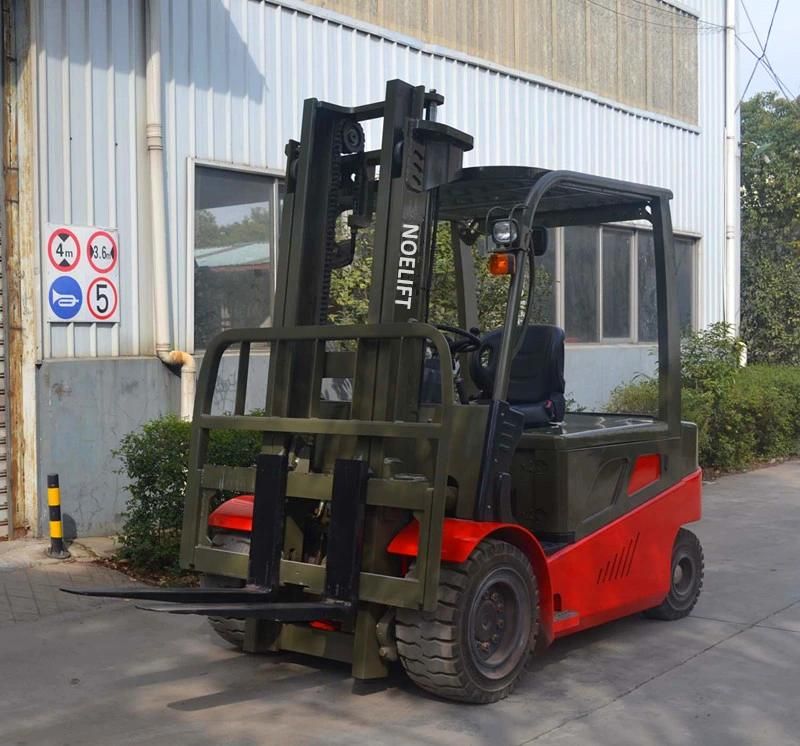

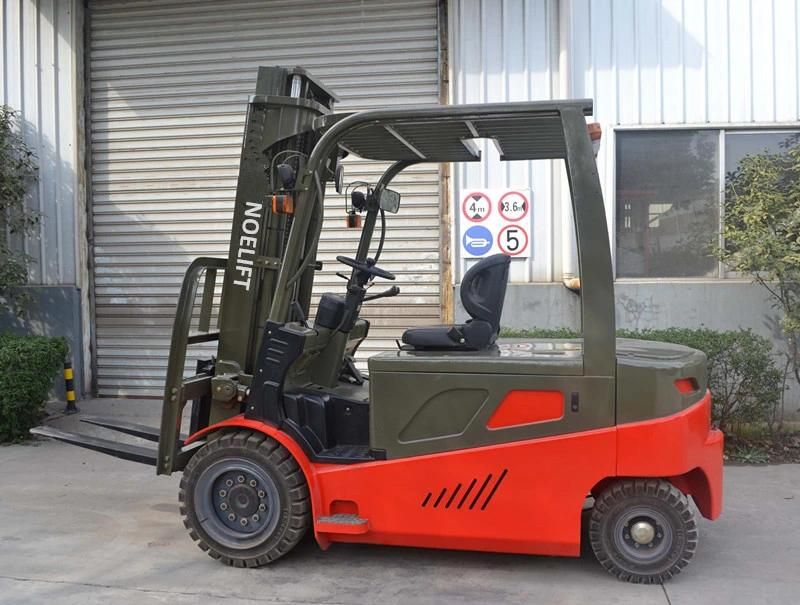

Product Pictures

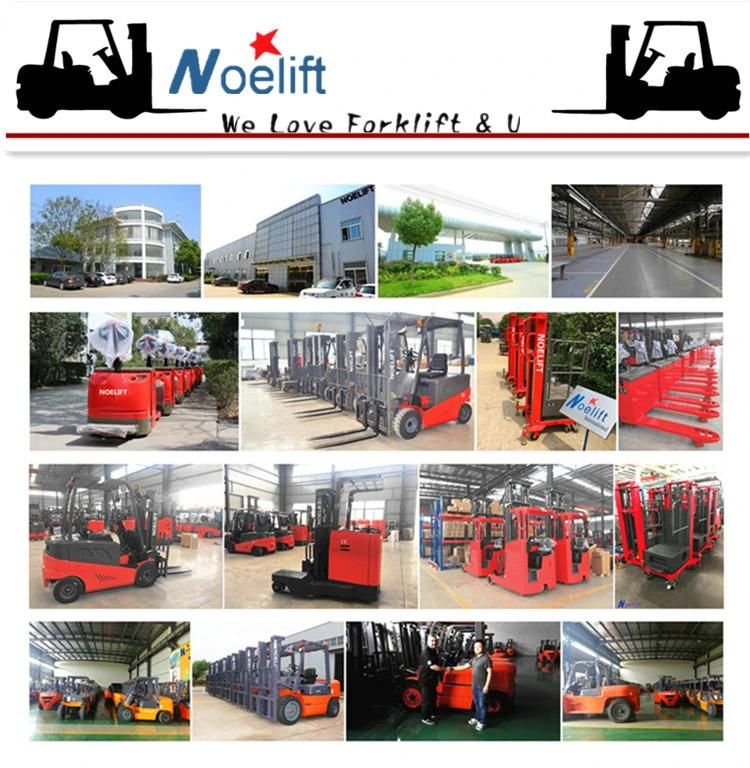

Our factory


Certification


Our services

1. One-stop solution service.

2. Customized-service all accepted

3. Customer service is in time.

4, Warranty: 12 months.

Any questions please feel freely to contact me, I will reply asap!

Noelift would love to provide most professional service to you!
