• Model NO.：CPCD30
• Fuel：Diesel
• Load center：500mm
• Lift height：3000~5000mm
• Condition：New
• Rated Loading Capacity：3000kg
• Lifting Height：3000mm
• Rated Power：40kw,2650rpm
• Transmission Type：Hydraulic
• Tire Type：Pneumatic Tire
• Fork Length：1070mm
• Self Weight：4280kg
• Overall Dimensions：2770mm*1225mm*2160mm
• Min.Turning Radius：2410mm
• Transport Package：2 Sets in 20gp Container
• Specification：CE
• Trademark：YTO
• Origin：Henan, China
• HS Code：84272090
• Production Capacity：300 Sets, Month

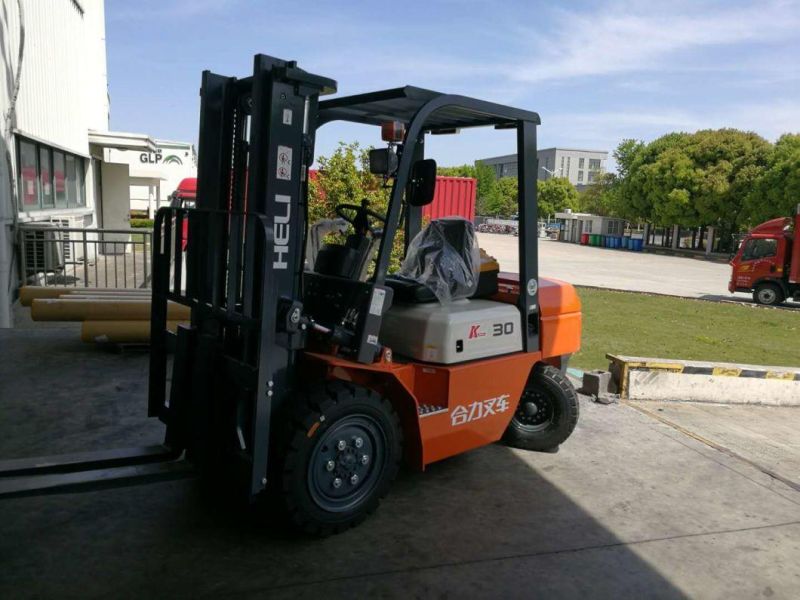

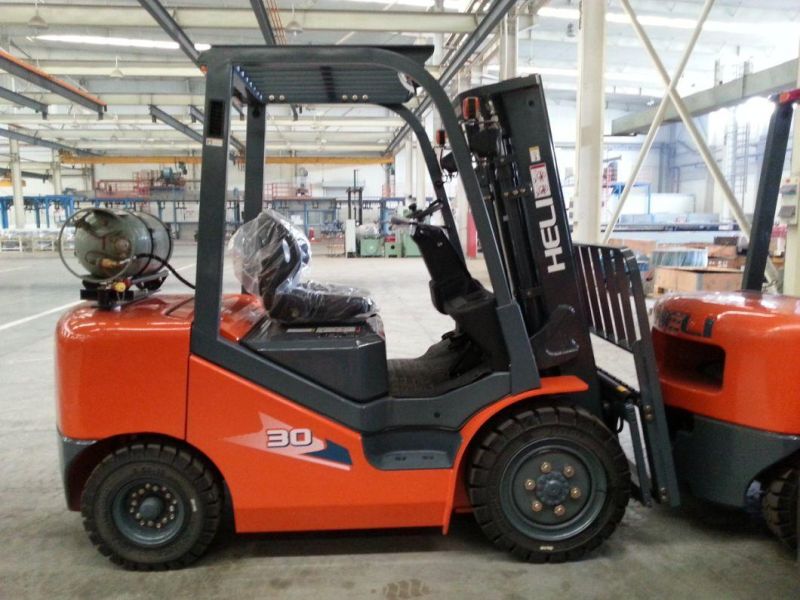

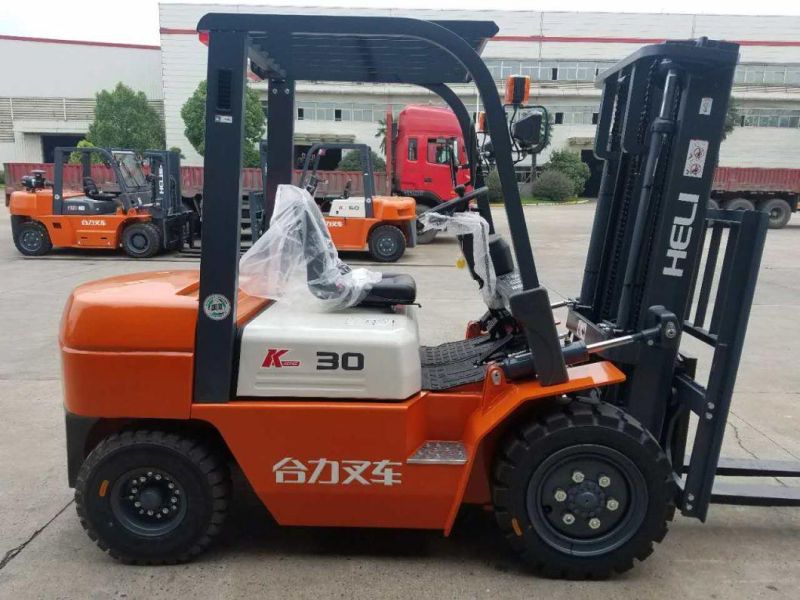

3ton HELI Diesel Forklift CPCD30 Made in China  ModelUnitCPC30/CPCD30Power type DieselRated capacitykg3000Load centermm500Mast Lifting heightmm3000Free lift heightmm175Fork size(L*W*T)mm1070×125×45Tilting Angles(Front/Rear)deg6°/12°Front overhangmm485

Exterior SizeLength without forkmm2680Overall widthmm1225Mast dropmm2065Max.liftmm4250Front-wheel Overheadmm2070Min Turning Radiusmm2420Min.intersecting aislemm2100

SpeedsMax Driving speedskm/h18.5/20Lifting speedsmm/s470/520Lowering speedsmm/s550/520Max.grade ability%20Total weightkg4300
TiresFront 28*9-15-12PRRear 6.5-10-10PRWheelbasemm1700
TreadFrontmm1000Rearmm970Min.ground clearancemm110

EngineModel XINCHANG490BPGRated outputkw/rpm37/2650Rated torqueN.m/rpm148/1800No.of cylinder 4DisplacementL2.54Fuel tank capacityL52

OPTION:
As a professional manufacturer of forklift, we also can offer you customized service,
 the following items are optional:
Container mast, for example, 2-stage full free mast of 3m, 3-stage full free mast of 4.5m/ 4.8m
side shifter, fork positioner,longer forks, fork extension
For the details of customized configurations and options, please contact with us.

OTHERS :
A:date of delivery:15-25days after received the deposit
B:payment terms:T/T(30% deposit,balance paid before shipment).Or L/C at sight
C:Guaranty period: one year or 2000hours upon receiving goods.
