• Model NO.：BY10
• Fuel：Diesel
• Load center：500mm
• Lift height：3000~5000mm
• Condition：New
• Product Name：Diesel Forklift
• Brand：Wecan
• Model：By10 Cpcd10
• Rated Capacity：1000kg
• Power Type：Diesel
• Transmission：Automatic
• Lifting Height：1340mm
• Fork Length：1070
• Transport Package：Null
• Specification：4760 * 4760 *2500mm
• Trademark：WECAN
• Origin：Shandong, China
• HS Code：8427109000
• Production Capacity：1000,Year

Leona Liang
0086 178 6542 5058
Product Description

Main configuration:

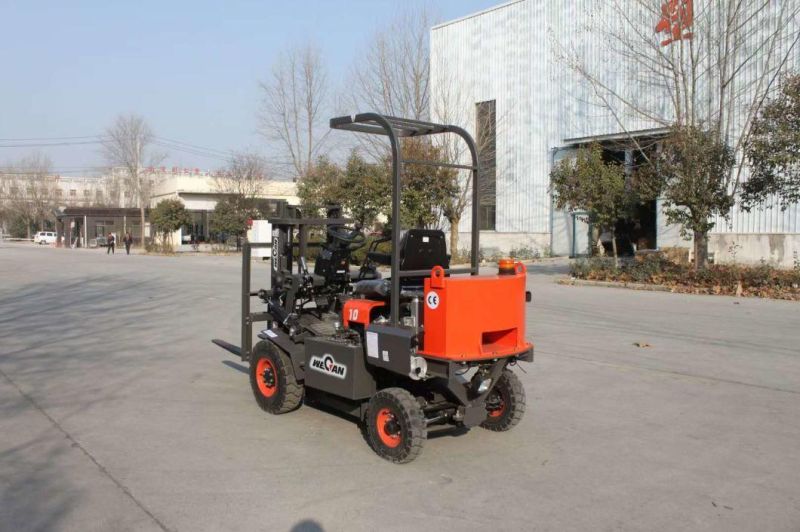

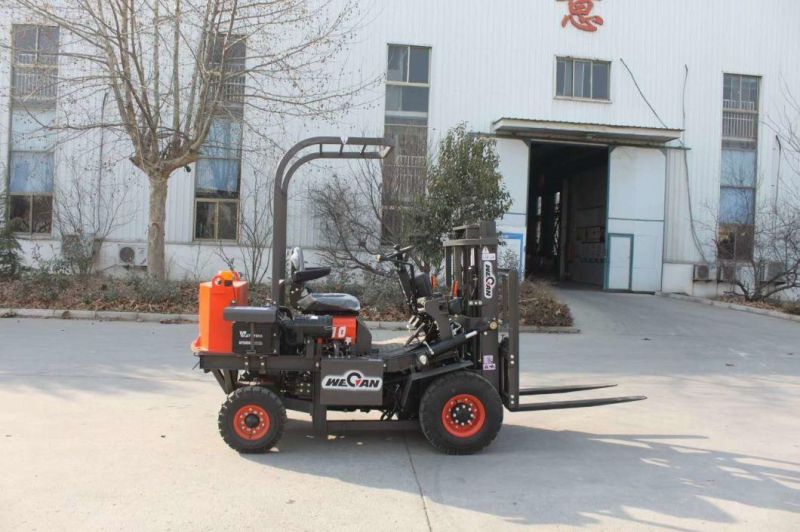

1.0Ton Mini Diesel Forklift Truck BY10, Length 3365mm (length 2110mm without 1220mm fork) Width 1100mm Height 2040mm The height of mast 1700mm (single mast lifting height 1340mm, 2-stage mast with full free lift 1760mm)...

1

Brand

WECAN

2

Model

BY10

3

Rated capacity

kg

1000

4

Power type

Diesel

6

Transmission

Automatic

Dimensions

7

Lifting height

mm

1340

8

Overall length

mm

3365

9

Overall width

mm

1100

10

Overall height
(mast lowered)

mm

1700

11

Fork length

mm

1070

12

Fork width

mm

122

13

Fork thickness

mm

40

14

Service weight

kg

1680

Engine

15

Engine model

XINCHAI 485 engine

16

Power

kw

30

hp

41

17

Rated speed

rpm

2600

18

Displacement

L

2.07

19

No. of cylinder

4
