• Model NO.：HQ915T
• Type：Powered Pallet Truck
• Power：Diesel Engine
• Load Capacity：1T - 5T
• Fuel：Diesel
• Load center：>500mm
• Lift height：3000~5000mm
• Condition：New
• Max Lift Height：4.68m
• Egnine：Perkins , Xinchai 498bt,Yanmar
• Loading Weight：1.5 Ton
• Transport Package：2 Units in a Hq40 Container
• Specification：CE, ISO, SGS, ROPS&FOPS
• Trademark：Haiqin
• Origin：Shandong, China
• HS Code：84295100
• Production Capacity：8000 Units , Year
• Package size per unit product：450.00cm * 150.00cm * 250.00cm
• Gross weight per unit product：4500.000kg

Basic Info.

Model NO. HQ915T Type Powered Pallet Truck Power Diesel Engine Load Capacity 1T - 5T Fuel Diesel Load center >500mm Lift height 3000~5000mm Condition New Max Lift Height 4.68m Egnine Perkins / Xinchai 498bt/Yanmar Loading Weight 1.5 Ton Transport Package 2 Units in a Hq40 Container Specification CE, ISO, SGS, ROPS&FOPS Trademark Haiqin Origin Shandong, China HS Code 84295100 Production Capacity 8000 Units / Year

Packaging & Delivery

Package size per unit product 450.00cm * 150.00cm * 250.00cm Gross weight per unit product 4500.000kg

Product Description

Haiqin Brand Small Telescopic Handler (HQ915T) with Ce and Euro 5 engine



1, HQ915T Telescopic Telescopic Handler Standard Equipment:

China Yunnei or Xinchai498BT Engine(EuroIII Engine), Standard Bucket, Real Rops & Fops Cabin, Quick Hitch, Joystick Handle, Comfortable high quality Seat, Adjustable Steering Wheel, 23.5/70-16 Agricultural Tyre, Wheel-reducer Axle, Disc Brake, 130W Heater, Backward camera, Blinking Lamp Without Key, Free Service Spare Parts.

2, Details Specifications of HQ915T Telescopic Handler

1.0 Engine Details
(1) Model: China YUNNEI or  Euro III Xinchai A498BPT
(2) Engine type: In-line arrangement, water-cooled, four-cycle diesel Engine
(3) Rated Power: 37KW (50.32H. P. )
(4) Rated Speed: 2200 r/p. Min (rpm)
(5) Fuel Consumption ratio in standard working condition: 230g/kw. H

2.0 Transmission System :Hydraulic converter + drive shaft + axles

3.0 Bucket
(1) BucketCapacity: 0.65 m3
(2) Bucket width: 1700mm
(3) Bucket type: Heavy-duty bolt on teeth
(5) Rated Load: 1500kg including attachment

4.0 Overall Dimensions
(1) Overall Length: 5920mm
(2) Overall Height: 2650mm
(3) Overall Width: 1800mm
(4) Max. Lifting Height: 4600mm

5.0 Operating Specifications
(1) Steering System: Articulated Frame with hydraulic power steering
(2) Min Turning Radius: 4500mm
(3) Driving System: Hydraulic converter, four wheel drive
(4) Quick coupling system
(5) Joystick handle
(6) Self levering

6.0 Brake System

(1) Service Brake: Disc brake

(2) Parking Brake: Hand operated

7.0 Tyre: Model: 23.5/70-16
8.0 Wheelbase: 2400mm
9.0 Track: 1415mm
10. System pressure: 20Mpa; Hydraulic output: 70L/min
11, Operation weight:4400kg

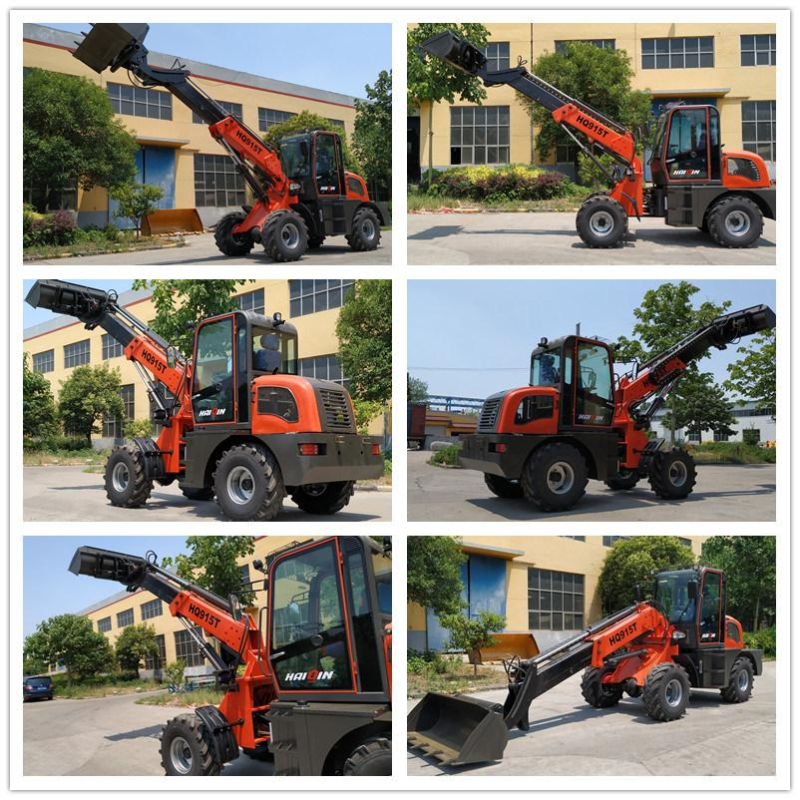

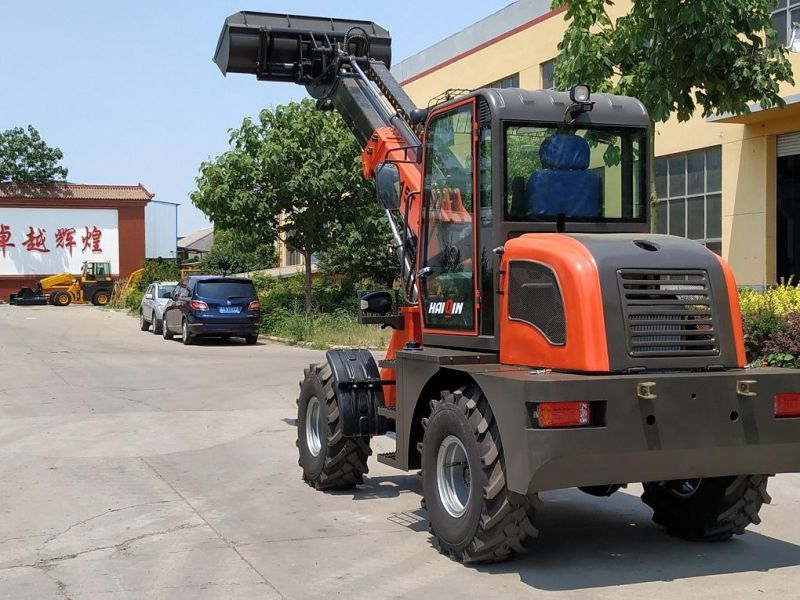

3, Details Photos of HQ915T Telescopic Handler

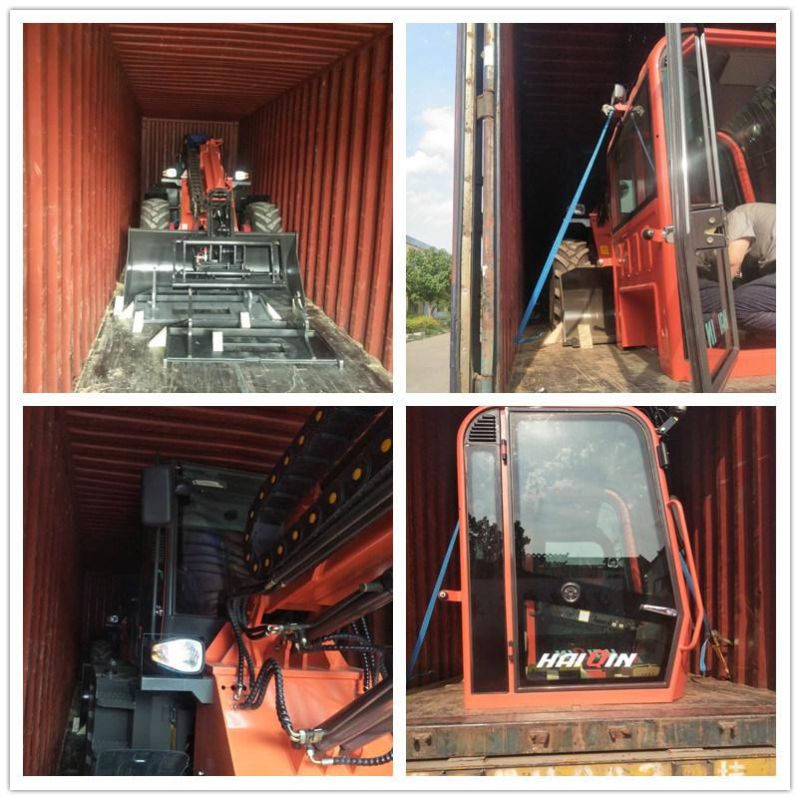

4, Professional Loading and Packing of HQ915T Telescopic Handler




5, Optional Attachments for HQ915T Telescopic Loader

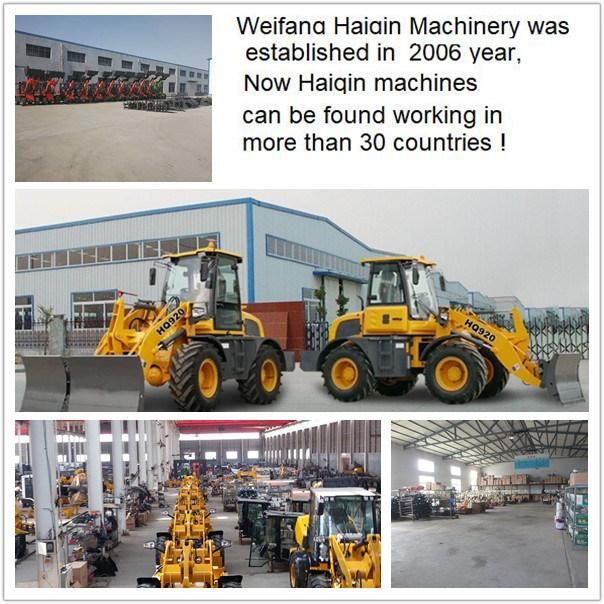

6, Factory introduction of Haiqin Machinery

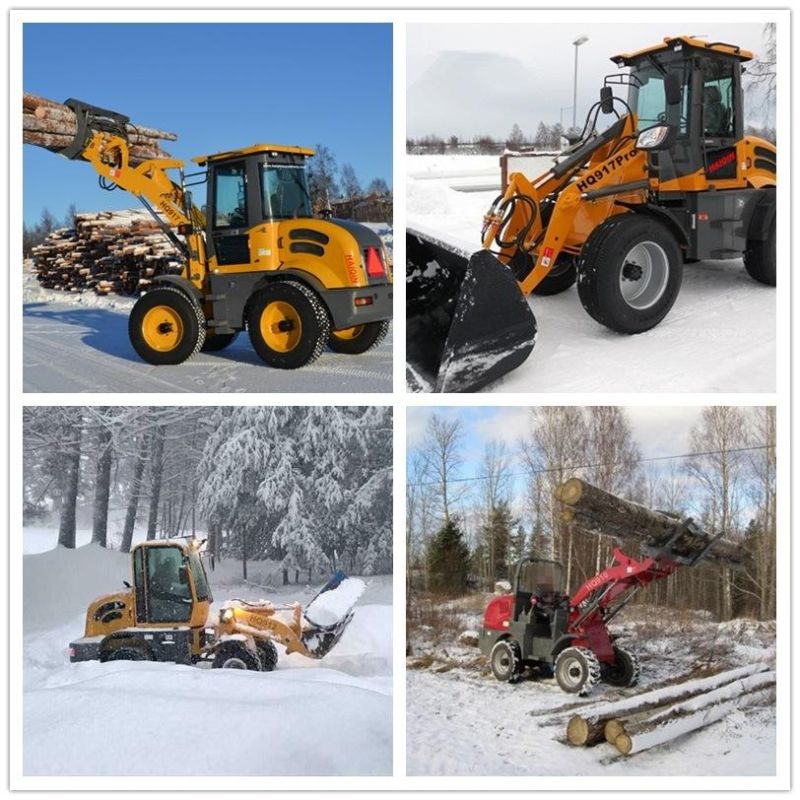

7, Working Case in the foreign countries of Haiqin Machinery' Loaders.

8, MORE PRODUCT CATEGORIES

9, Warranty and Service.

HAIQIN loader has One Year Warranty.
During Warranty, if there is any part broken because of quality problem(except easy-damaged parts), send us detailed pictures and video, then we will send good/ new parts for your replacements.

Choose HAIQIN, and then better after-service will be guaranteed.

Contact us right now for more information!  Online 24 hours a day!
