Multifuction Professional High Quality Forklift
Henan Haiheng Import and Export Co., Ltd.- Type：Powered Pallet Truck
- Power：Diesel Engine
- Load Capacity：1T - 5T
- Fuel：Diesel
- Load center：500mm
- Lift height：3000~5000mm
Base Info
- Model NO.：CPC30
- Condition：New
- Multifunction Forklift：CPC30
- Forklift：CPC30
- Transport Package：Naked
- Specification：A
- Trademark：CHHGC
- Origin：Henan
- HS Code：84272010
- Production Capacity：100 Per Month
Description
ItemUnit specification
general situation Habitat Qingzhou shandong Model CPC30 power form diesel Rate Load Kg 3000 Load Center mm 500 basic size lifting altitude mm 3000 lifting freely altitude mm 145 fork size L x W x T mm 1070 X 130 X 45 distance between the forks Min ·/Max mm 290-1200 mast tilt angle F/R deg 6/12 Front overhang mm 480
Size length mm 2885 width mm 1230 height when portal not lift mm 2182 height when portal lift mm 4040 reliefbracket height mm 2160 min.tuming radius mm 2540 min right angle aisle width mm 2490 Minimum stacking right Angle channel width mm 3020+F+J performance speed drive speed (no-load) Km/h 21 drive speed (load) mm/s 490 max. climbing power % 20 weight Kg 4300 tire tire front wheel 8.25-12-12PR rear wheel 6.50-10-10PR wheelspan front wheel mm 1030 rear wheel mm 974 axle distance mm 1760 Minimum Ground Clearance mm 120 Power and transmission accumulator pressure V/Ah 12/105 Engine model 490BPG-53 habitat Xinchai zhejing output power Kw/r·p·m 37/2650 rated torque N·m/r·p·m 148/1900 no. of cylinder 4 cylinder x schedule mm 90 X 100 air displacement cc 2540 fuel-tank capacity L 65 minimum specific fuel consumption g/kw·h 238 transmission habitat Chasha zhongnan gears(front/after) 3/2 working pressure Mpa 16

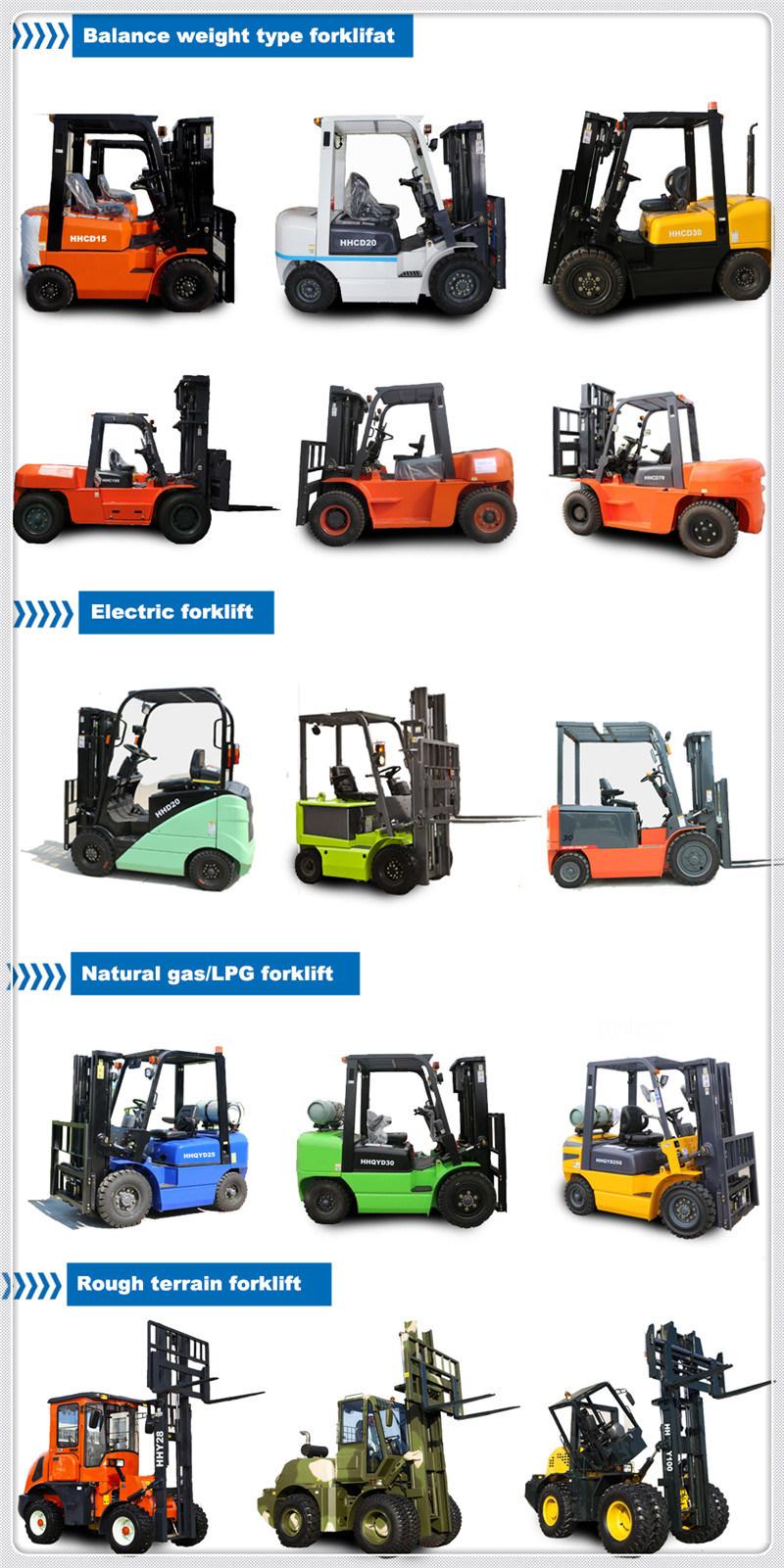

Products series

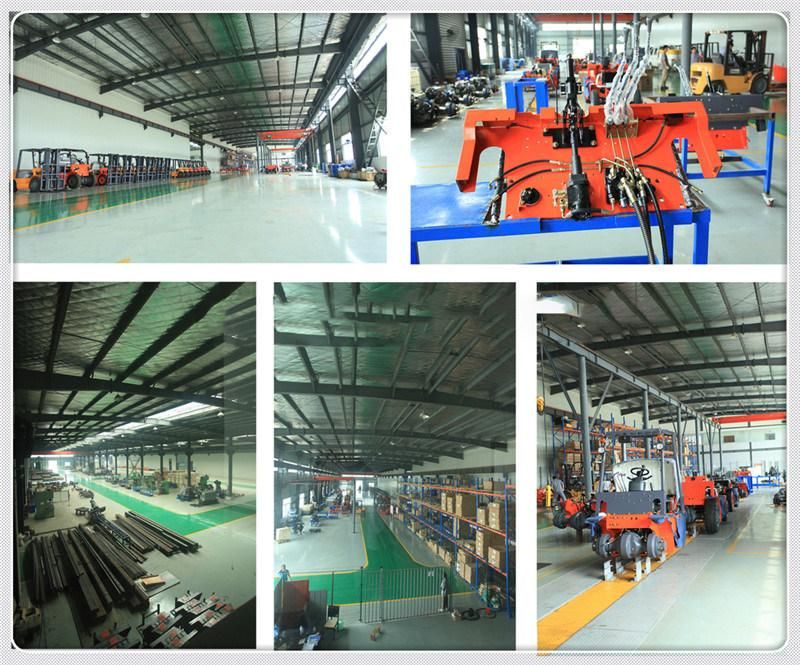

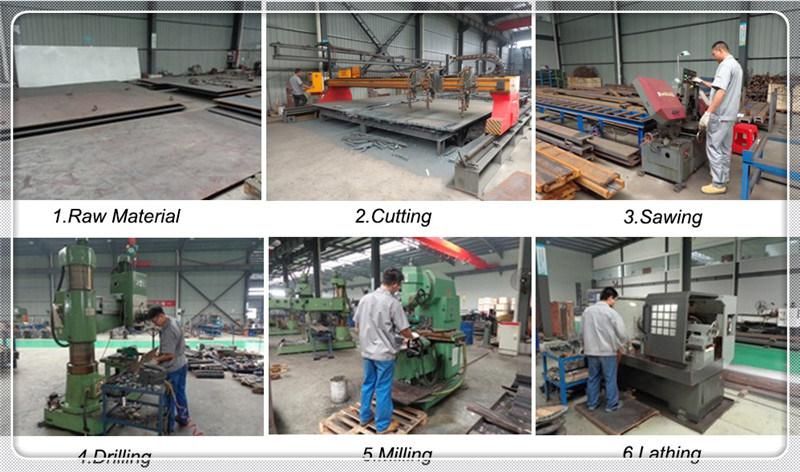

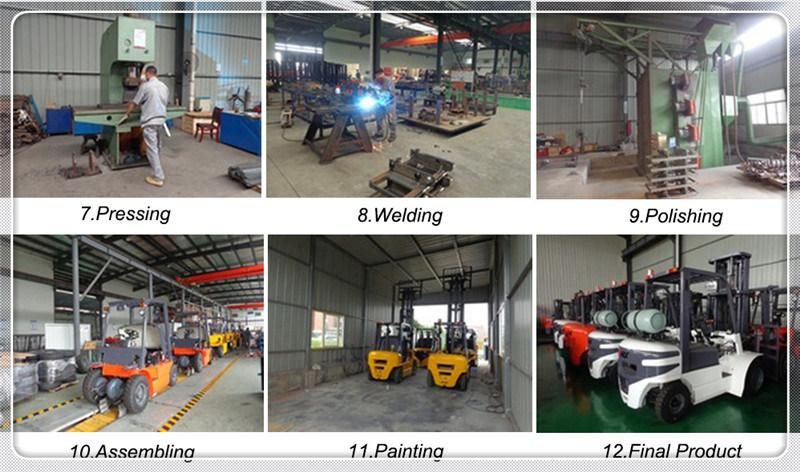

Production Workshop
Certificate
Business Partners
FAQ
Q1. How to ship the forklift?
A: By container, bulk ship, RORO.
Q2. Do you have different forklift?
A: Yes,we supply different model forklift and exported to many countries.
Q3. What is your payment term?
A: We usually accept T/T or L/C depends on the quantity.
T/T, deposit in advance, and balance paid before delivery from factory.
Q4. Which type forklift do you supply?
A: We supply all kinds of forklift such as gas, petrol, diesel, electric forklift etc,.
Q5. What is your terms of delivery?
A: FOB, CIF.
Q6. How about your delivery time?
A: Generally, it will take 35 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: What can you guarantee to your business partner?
A: Best price with good quality. We guarantee quality and after sale service to satisfy our business partners.
