Cheap Price Diesel Forklift (HQ30M) with ISO, SGS Certificate
Weifang Haiqin Top Machinery Co., Ltd.- After-sales Service：24 Hours Every Day Technology ,Spare Parts Service
- Warranty：1 Year
- Cab Location：Adjustable
- Type：Manual Pallet Truck
- Power：Diesel Engine
- Load Capacity：1T - 5T
Base Info
- Model NO.：HQ30M
- Fuel：Diesel
- Load center：>500mm
- Lift height：3000~5000mm
- Condition：New
- Engine Power：36kw
- Rated Capacity：3 Ton
- Length×width×height：3830×1225×2120mm
- Transport Package：2 Units in One 20 Feet Container
- Specification：CE, ISO, SGS
- Trademark：Haiqin
- Origin：Shandong, China
- HS Code：84271090
- Production Capacity：2000000 , Year
Description
General1 Name
FORKLIFT2 model HQ30M 3 power type diesel 4 rated capacity KG 3000 5 load center mm 500 Size 6 lift height mm 3000 7 free lift height mm 145 8 fork size mm 1070*125*45 9 mast tilt angle Deg 6°/12° 10
overall dimensions length×width×height mm 3830×1225×2120 11 mast lowered height mm 2075 12 mast extended height mm 4105 13 turning radius mm 2430 14 min. right angle aisle width mm 2140 Performance 15
speed(full load)travel speed km/h 19 16 lift speed mm/s 400 17 max. grade ability ° 18 18 self weight KG 4300 tires 19 tires front 28×9-15-12PR/2 20 rear 6.50-10-10PR/2 21 tread front/rear mm 1000/970 22 wheelbase mm 1760 23 minimum ground clearance mm 130 Power & transmission 24 battery voltage/capacity WA/h 12/100 25
engine model 490BPG 26 manufacture china 27 rated output Kw/rpm 37/2650 28 rated torque N.m/rpm 148/1900 29
No. × bore × stroke 4_90×100 30 displacement cc 2540 31 fuel tank capacity L 45 32
transmissions manufacture china 33 type hydraulic
mechanical 34 stage FWD/RVS (1/1)2/2

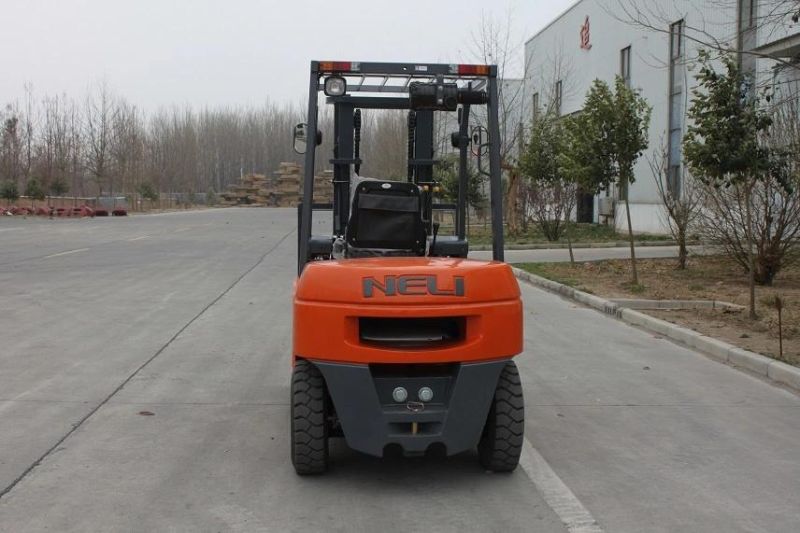

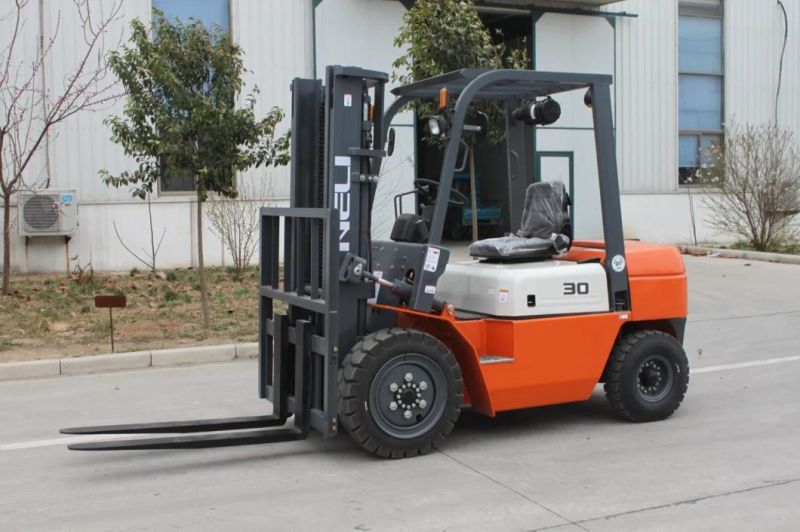

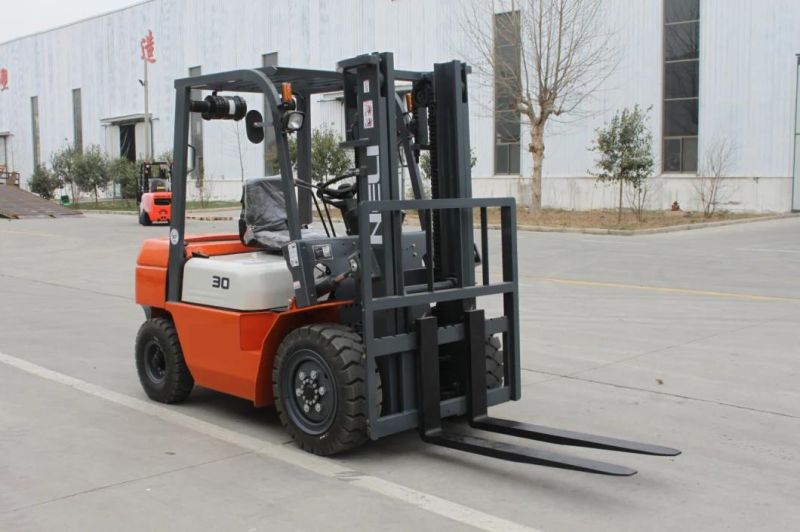

2, Details photos :
3, Certificate of Haiqin Machinery:
4, Warranty and Service.
HAIQIN Forklift has One Year Warranty.
During Warranty, if there is any part broken because of quality problem(except easy-damaged parts), send us detailed pictures and video, then we will send good/ new parts for your replacements.
Choose HAIQIN, and then better after-service will be guaranteed.
Contact us right now for more information! Online 24 hours a day!
