• Color：Red Yellow or Other
• Wheel：PU, Nylon, Rubber
• Name：Manual Forklift Hydraulic Hand Pallet Truck
• Fork Size：1150*550 ,1220*685mm
• Pump：AC Casting Integral Pump , Df Welded Pump
• Max. Lifting Height：200mm
• Min. Lifting Height：80mm
• Advantage：Steel Frame on Back of Steel Plate to Strengthen
• After-Sales Service Provided：Overseas Third-Party Support Available
• Port of Loading：Tianjin Xingang , Shanghai, Ningbo

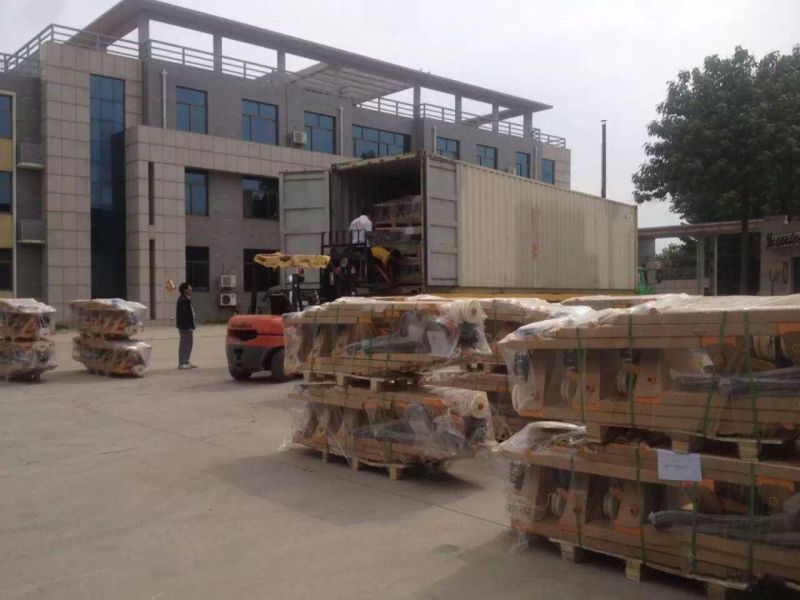

• Transport Package：6pieces,Pallet.
• Specification：Fork Width: 550mm 685mm
• Trademark：HUGO
• Origin：Shanghai China
• HS Code：8427900000
• Production Capacity：2000 Sets Per Month

Basic Info.

Color Red Yellow or Other Wheel PU, Nylon, Rubber Name Manual Forklift Hydraulic Hand Pallet Truck Fork Size 1150*550 /1220*685mm Pump AC Casting Integral Pump / Df Welded Pump Max. Lifting Height 200mm Min. Lifting Height 80mm Advantage Steel Frame on Back of Steel Plate to Strengthen After-Sales Service Provided Overseas Third-Party Support Available Port of Loading Tianjin Xingang , Shanghai, Ningbo Transport Package 6pieces/Pallet. Specification Fork Width: 550mm 685mm Trademark HUGO Origin Shanghai China HS Code 8427900000 Production Capacity 2000 Sets Per Month

Product Description

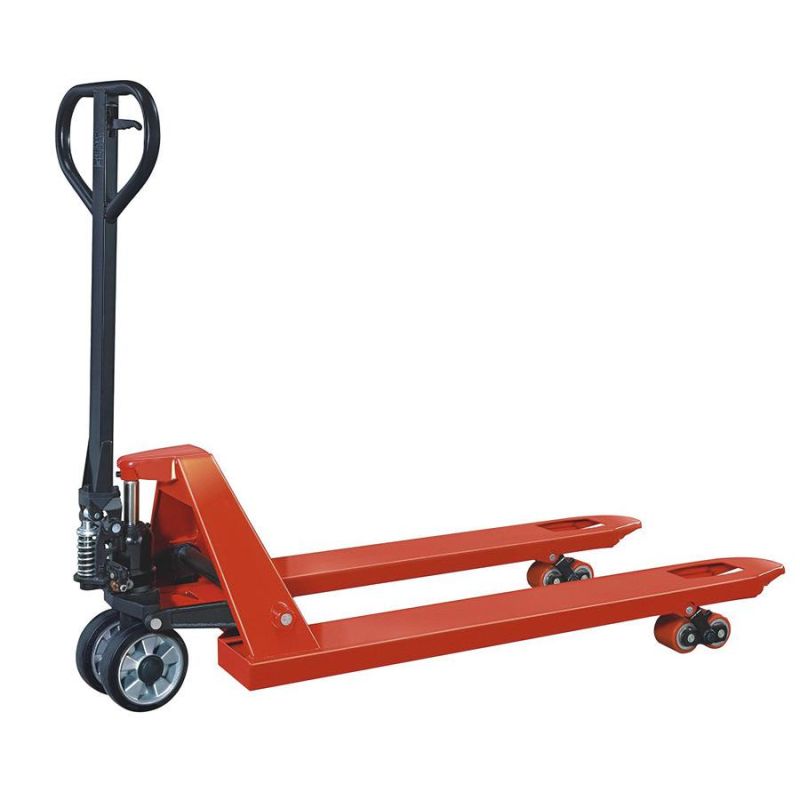

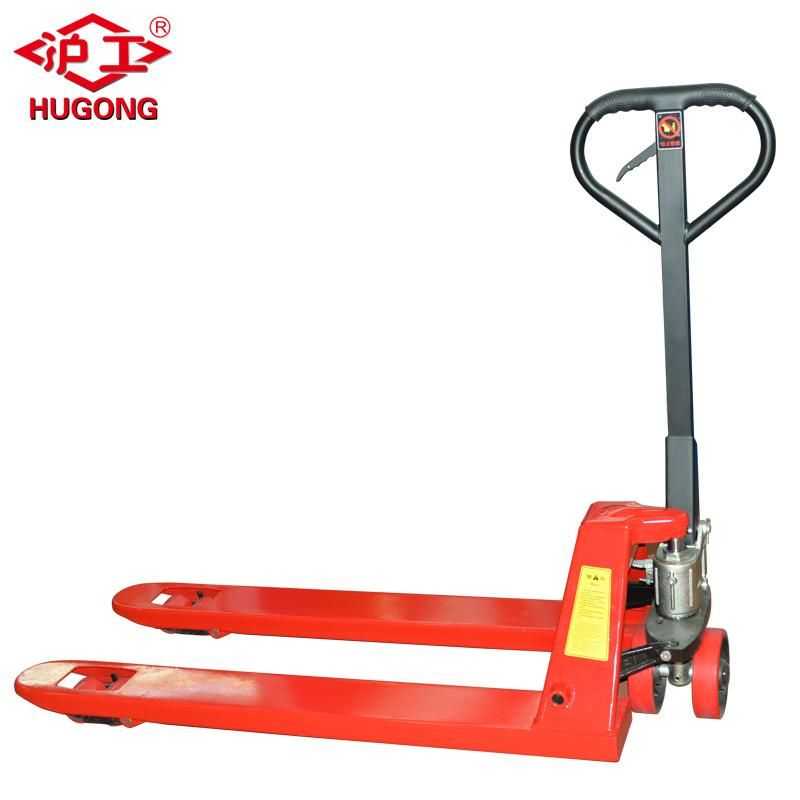

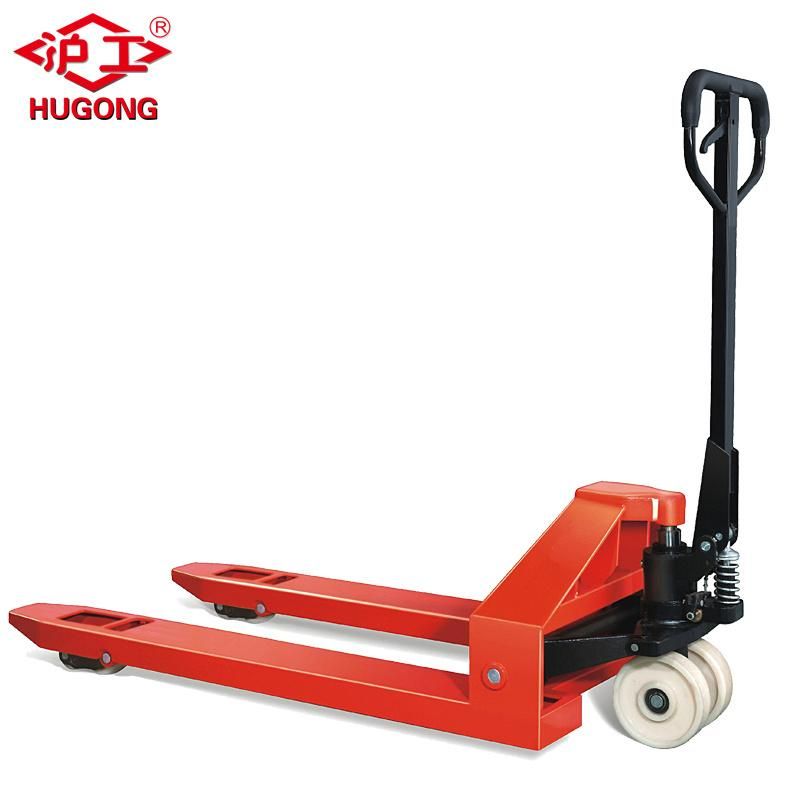

Manual Forklift Hydraulic Hand Pallet Truck Df Hand Pallet Truck with CE

Introduction

1,Hand pallet truck also known as manual pallet truck, hand pallet truck when use the carrying

goods fork into the tray hole,by the ability to drive hydraulic system to realize the pallet load

lifting and falling, and pulled by human complete handling operations.

2,It is the simplest and most effective tray in the transport, the most common type of loading

and unloading, handling tools,widely used in logistics,warehouses, factories, hospitals, schools,

shopping malls, airports, stadiums, station, airport and so on

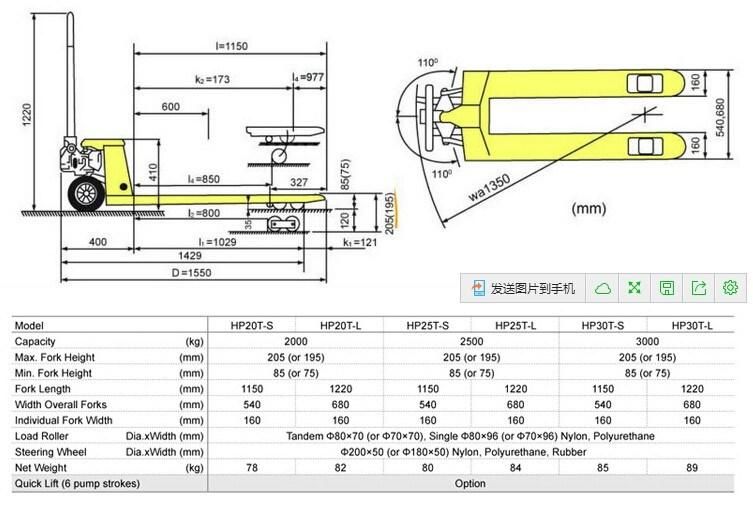

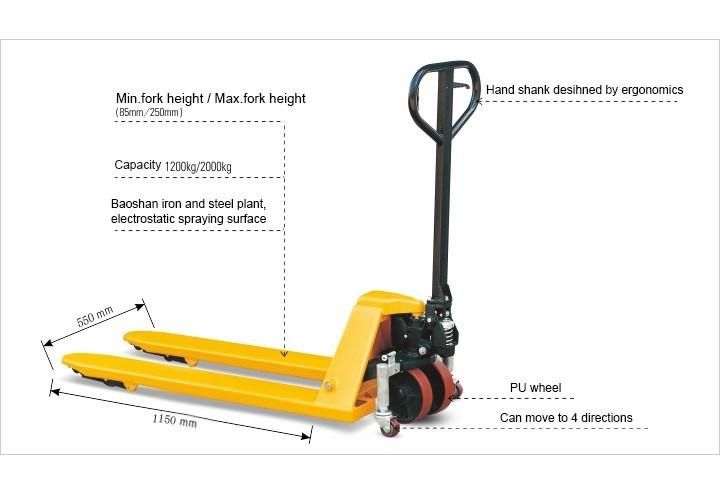

Capacity	Minimum height (mm)	Max lift height (mm)	Length(mm)	Width(mm)	Wheel type	Load wheel size(mm)	Steer wheel size(mm)
2	80	200	1150	550	Rubber/PU/Nylon	70*80	180*50
2	80	200	1220	685	Rubber/PU/Nylon	70*80	180*50
2.5	80	200	1150	550	Rubber/PU/Nylon	70*80	180*50
2.5	80	200	1220	685	Rubber/PU/Nylon	70*80	180*50
3	80	200	1150	550	Rubber/PU/Nylon	70*80	180*50
3	80	200	1220	685	Rubber/PU/Nylon	70*80	180*50
5	80	200	1220	685	Rubber/PU/Nylon	70*80	180*50

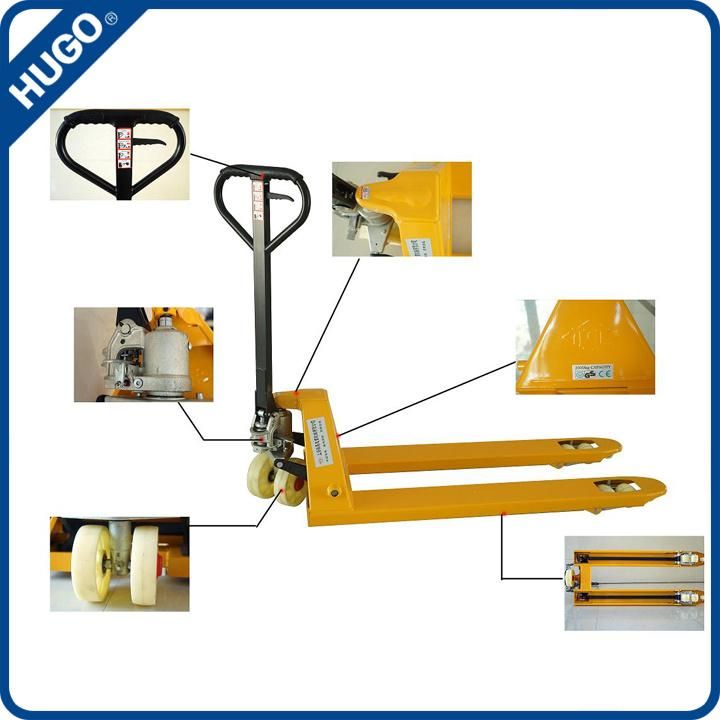

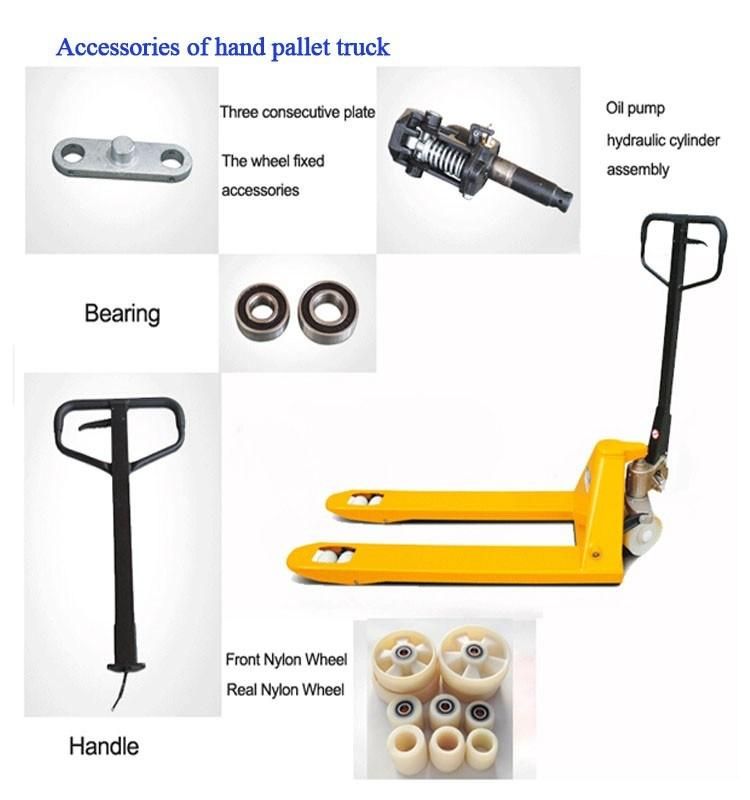

1) AC Casting Integral Pump With Nylon Wheel

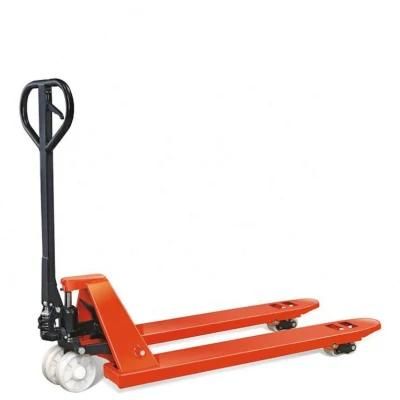

2) AC Casting Integral Pump With PU Wheel


3) DF Welded Pump With Rubber Wheel


4) DF Welded Pump With Nylon Wheel
