• Model NO.：FB50
• Lift height：5000mm
• Condition：New
• Item Name：5 Ton Electric Forkift
• Mast：Duplex , Triplex Is Optional
• Fork Size：1070mm*150mm*50mm
• Battery：80V,700ah
• Ground Clearence：160mm
• Wheel Base：2000mm
• Controller：American Curtis or Zapi
• Turning Radius(Outside)：2755mm
• Tilt Range：6,9
• Optional：Side Shifter, Solid Tires, Cab, Fork Positioneretc
• Tire：Pneumatic
• Attachment：Bale Clamp, Paper Roll Clamp
• Min Insecting Aisle：2955
• Service Weight：7800
• Transport Package：Container
• Specification：3030*1600*2330mm
• Trademark：LTMG
• Origin：China
• HS Code：8427109000
• Production Capacity：800 Sets,Year

Power source BatteryBatteryBatteryBatteryRated load capacitykg4000450050006000Load centremm500500500500Lift heightmm3000300030003000Fork size (L×W×T)mm1070×150×501070×150×501070×150×501070×150×50Fork carriage tilt(F/R)°6°/9°6°/9°6°/9°6°/9°Overall Length(to fork face)mm3030303030303030Overall Widthmm1600160016001600Mast Lowered Heightmm2330233023302330Mast Extended Heightmm4255425542554255Overhead Guard Heightmm2255225522552255Wheelbasemm2000200020002000Overall length(with forks)mm4100410041004100Gradeability(Laden)%15151515Front Tire 28×12.5-15-24PR28×12.5-15-24PR28×12.5-15-24PR28×12.5-15-24PRRear Tire 7.0-12-14PR7.0-12-14PR7.0-12-14PR7.0-12-14PRBattery(Voltage/Capacity)V/Ah80/70080/70080/70080/800Drive motor                    Kw2x112x112x112x11Lifte motor                       Kw26262626
Product Features

1.Safe:
LED work lights and warning lights make it safer and more efficient evenin poor lighting conditions.
New designed overhead guard protective device prevent the sudden accidents.
Thicker reinforcing plate ensure the safety and efficiency.

2.Easy to operate:
Linde-Technology single chain with reinforced load backrest--makes an excellent and wider field of visionfor operator.


3.Beautiful and comfortable:
New suspension adjustable seat makes the long time operating more comfortable.
Step area is 1.5 times larger with lower step height than fellow forklifts.

4.Durable:
Sunken tilt cylinder under the floor build broader flat floor and less abrasion.
Change plastic slider to alloy copper slider, reduce the abrasion and narrow the gap between masts.
Thicker steering axle bridge deck.

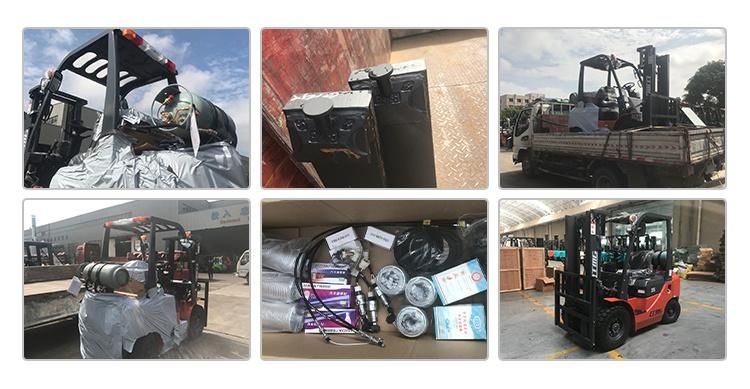

Shipping & packaging

After sales service.

All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.Detail clauses and policies please check our website and product certificate.

LTMG Customers Show:


Company Show:
