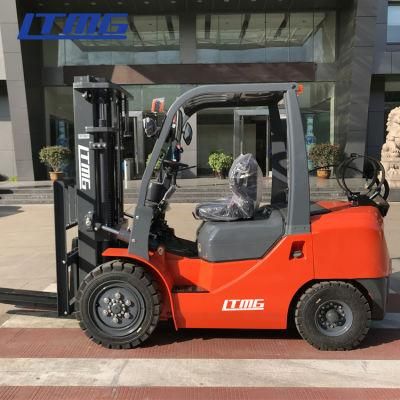

Ltmg Fd30t 3 Ton Diesel Forklift Truck Forklift Price for Hydraulic Forklift
Xiamen LTMG Machinery Co., Ltd.- Cab Location：Not Adjustable
- Type：Diesel Forklift
- Power：Diesel Engine
- Load Capacity：1T - 5T
- Fuel：Diesel
- Load center：>500mm
Base Info
- Model NO.：FD30T
- Lift height：3000~5000mm
- Condition：New
- Engine：Xinchai C490
- Fork Size：1070*125*45mm
- Wheelbase：1800mm
- Transmission：Hydraulic
- Product Name：Ltmg Fd30t 3 Ton Diesel Forklift Truck Forklift Pr
- Product Type：Diesel Forklift
- Color：Yellow
- Certificate：CE,ISO
- Fork Length：1070mm
- Tire：Pneumatic
- Turning Radius：2520mm
- Ground Clearance：140mm
- Service Weight：4250kg
- Fuel Tank Capacity：70L
- Transport Package：Nude Packing
- Specification：2780*1230*2110mm(Without fork)
- Trademark：LTMG
- Origin：Ningbo, China
- HS Code：8427209000
- Production Capacity：400 Units,Month
Description
LTMG FD30T 3 Ton Diesel Forklift Truck Forklift Price for Hydraulic ForkliftGeneral 1 Model FD30 2 Power Type Diesel 3 Rated Capacity kg 3000 4 Load Centre mm 500 Characteristic&Dimension 5 Lift Height mm 3000 6 Fork Size L×W×T mm 1070×125×45 7 Mast Tilt Angle F/R Deg 6°/12° 8 Front Overhang (Wheel center to fork face) mm 480 9 Ground Clearance(Bottom of mast) mm 140 10 Overall Dimension Length to face of fork(Without fork) mm 2780 11 Overall Width mm 1230 12 Mast Lowered Height mm 2115 13 Mast Extended Height(With backrest) mm 4175 14 Overhead Guard Height mm 2110 15 Turning Radius (outside) mm 2520 Performance 16 Speed Travel (Empty load) km/h 20 17 Lifting (Full load) mm/s 510 18 Max.Gradeability (No load/Full load) % 20 Chassis 19 Tire Front mm 28×9-15-12PR 20 Rear mm 6.50-10-10PR 21 Wheelbase mm 1800 22 Service weight kg 4250 Power&Transmission 23 Battery Voltage/Capacity V/Ah 12/80 24 Engine Model C490 25 Manufacture XINCHAI 26 Rated output/r.p.m. kw 40/2650 27 Rated torque/r.p.m. N·m 160/1600-2000 28 No.of Cylinder 4 30 Displacement cc 2670 31 Fuel Tank Capacity L 70 32 Transmission Type Hydraulic 33 Stage FWD/RVS 1/1

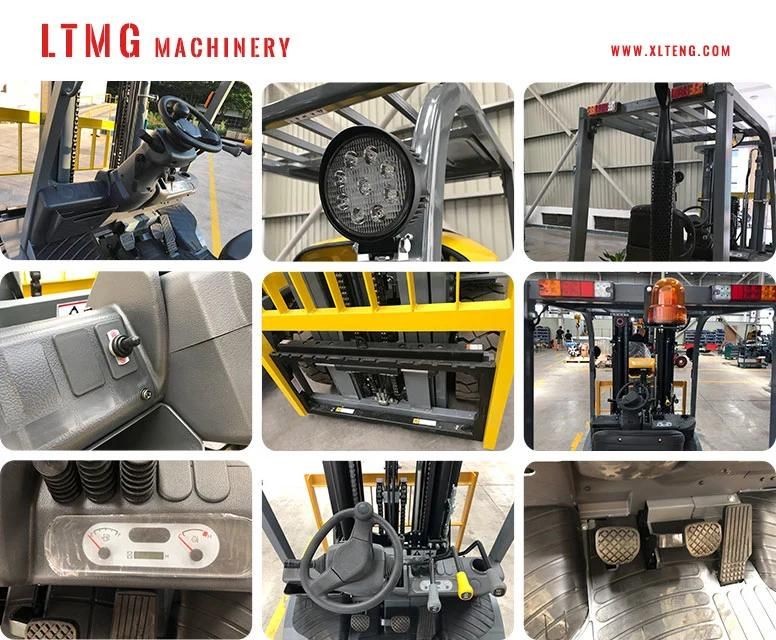

Product Features
1.Safe:
LED work lights and warning lights make it safer and more efficient evenin poor lighting conditions.
New designed overhead guard protective device prevent the sudden accidents.
Thicker reinforcing plate ensure the safety and efficiency.
2.Easy to operate:
Linde-Technology single chain with reinforced load backrest--makes an excellent and wider field of visionfor operator.
3.Beautiful and comfortable:
New suspension adjustable seat makes the long time operating more comfortable.
Step area is 1.5 times larger with lower step height than fellow forklifts.
4.Durable:
Sunken tilt cylinder under the floor build broader flat floor and less abrasion.
Change plastic slider to alloy copper slider, reduce the abrasion and narrow the gap between masts.
Thicker steering axle bridge deck.
5.Environmental:
Middle muffler, more environmental.
6.High technology:
Maintenance free radiators adopt Germany technology.

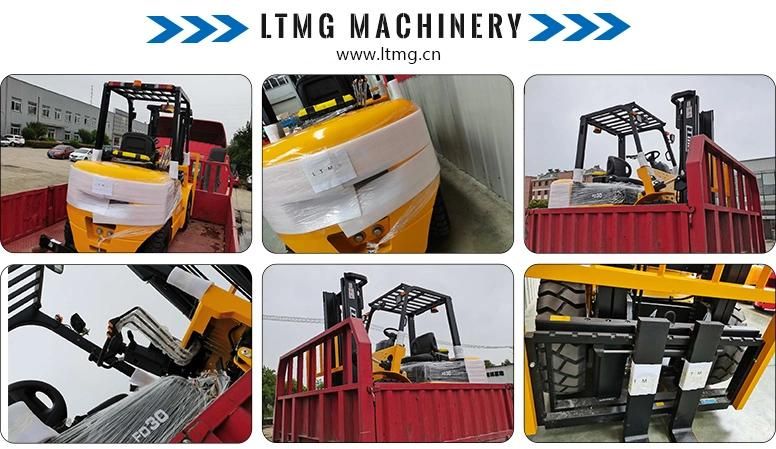

Packing & Shipping

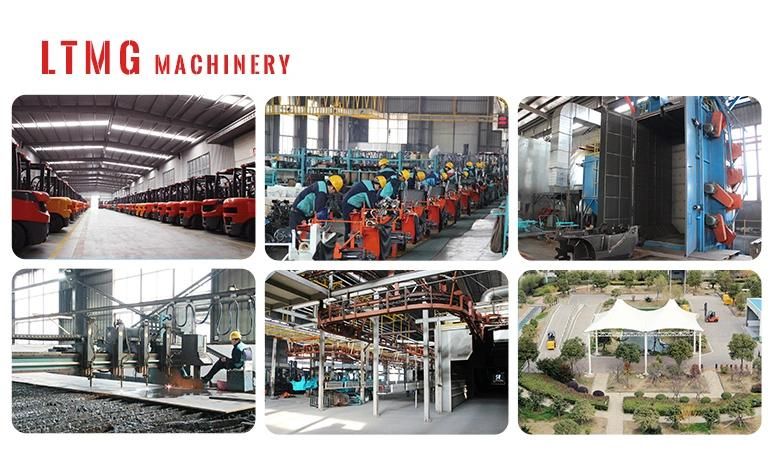

Our Factory
Our Customers
After-sale service
FAQ
1. What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate. Some of our products meets the EPA requirements.
LTMG never recruit Underage labor.
2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.
3. How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.
4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.
5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, balance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.
6. Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
CONTACT US
Product Features
1.Safe:
LED work lights and warning lights make it safer and more efficient evenin poor lighting conditions.
New designed overhead guard protective device prevent the sudden accidents.
Thicker reinforcing plate ensure the safety and efficiency.
2.Easy to operate:
Linde-Technology single chain with reinforced load backrest--makes an excellent and wider field of visionfor operator.
3.Beautiful and comfortable:
New suspension adjustable seat makes the long time operating more comfortable.
Step area is 1.5 times larger with lower step height than fellow forklifts.
4.Durable:
Sunken tilt cylinder under the floor build broader flat floor and less abrasion.
Change plastic slider to alloy copper slider, reduce the abrasion and narrow the gap between masts.
Thicker steering axle bridge deck.
5.Environmental:
Middle muffler, more environmental.
6.High technology:
Maintenance free radiators adopt Germany technology.
Packing & Shipping
Our Factory
Our Customers

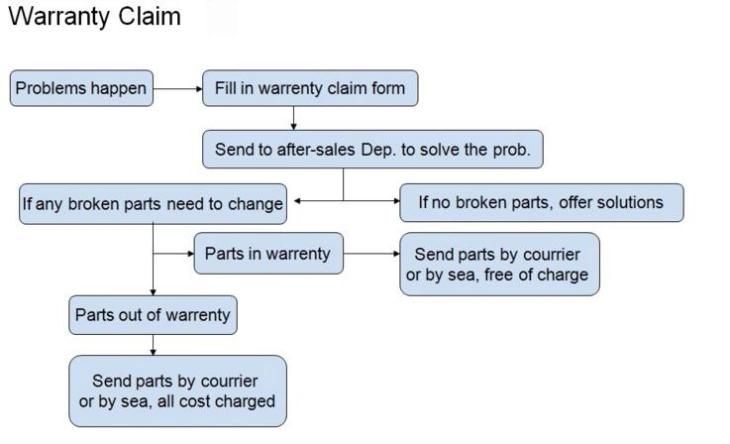

After-sale service
