• Model NO.：T30Y
• Lift height：3000-6000mm
• Condition：New
• Battery：12V,90ah
• Engine Manufacturer：Yanmar
• Fuel Tank Capacity：65L
• Fork Size：1220*125*40
• Transport Package：Standard Export Packing
• Specification：2991*1600*2225mm
• Trademark：Royal
• Origin：China
• HS Code：8427209000
• Production Capacity：500PCS,Year

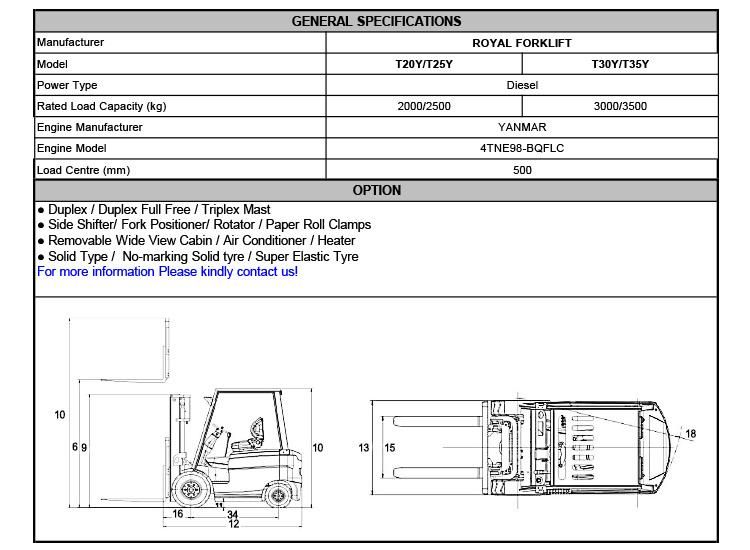

Manufacturer RY MODEL T30YGeneral Power Type DIESELengine YANMARRated Load Capacitykg3000Load Centremm500Characteristic & DimensionRated Lift Heightmm3000Free Lift Heightmm150Mast Tilt Angle (F/R, α°/β°)Deg10º/12ºMast Lowered Heightmm2270Mast Extended Height (With Backrest)mm4335Overhead Guard Heightmm2275Ground Clearance (Bottom of Mast)mm270Length to Face of Fork (Without Fork)mm2997Overall Widthmm1600Fork Size (L×W×T)mm1220X125X50Fork Overhang (Wheel Center to Fork Face)mm606Rear Overhangmm540Turning Radius (Outside)mm2785Min.Right Angle Stacking Aisle Width
(Add Load Length and Clearance)mm4805PerformanceTravel Speed (No Load)km/h22Travel Speed (Full Load)km/h22Lifting Speed (Full Load)mm/s450Lowering Speed  (Full Load)mm/s500Max.Drawbar Pull (Full Load)KN17Max.Gradeability (Full Load)%16Service Brake (Operation/Control) Foot/PowershiftParking Brake (Operation/Control) Hand/MechanicalChassisTyre (Front x 2) 14-17.5-14PRTyre (Rear x 2) 27x10-12-12PRFront Treadmm1250.5Rear Treadmm1205Wheelbasemm1880WeightTotal Weightkg4950Front Axle Weight Distribution (Full Load)kg7630Rear Axle Weight Distribution (Full Load)kg1050Front Axle Weight Distribution (No Load)kg2070Rear Axle Weight Distribution (No Load)kg3110
